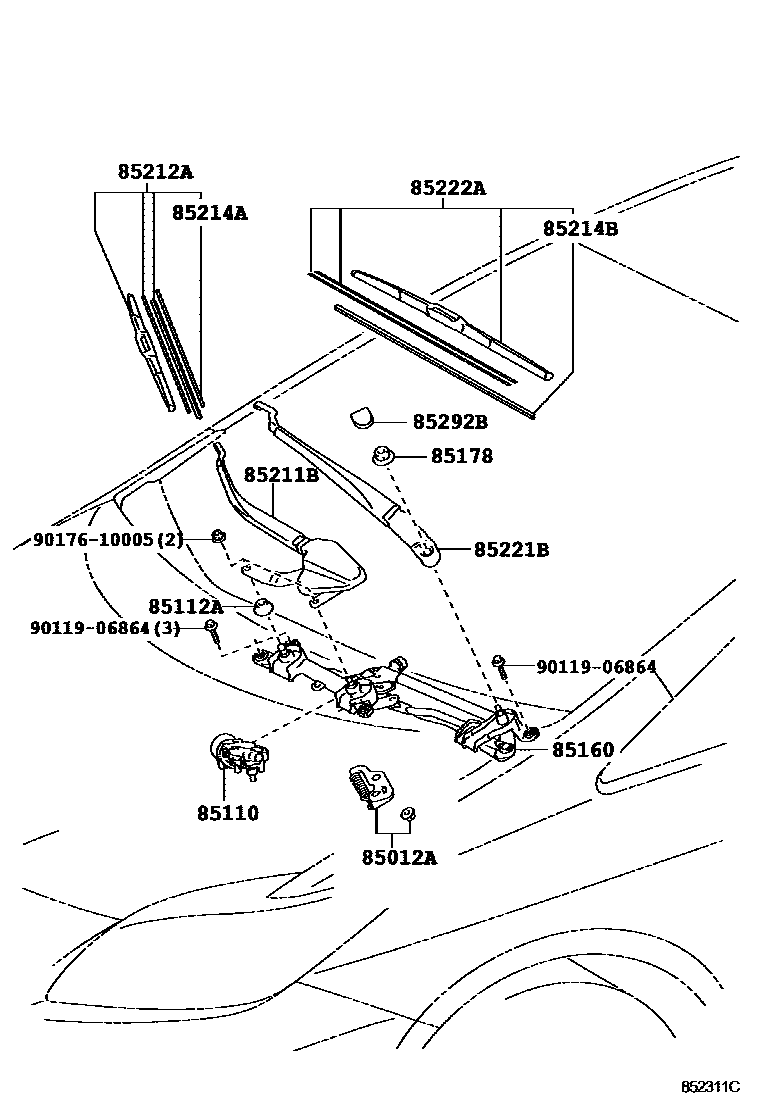

Toyota PRIUS — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iZVW30201112

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47240iZVW30201304-201406

main85110-47280iZVW30201406

main85110-50140iZVW30200904-201112

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-47010×2iZVW30201112

85160LINK ASSY, WINDSHIELD WIPER

main85150-47140iZVW30200904-201112

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iZVW30200904-201112

main90182-10006iZVW30201207

85211BARM, FRONT WIPER, RH

main85211-47100iZVW30200904-201112

85212ABLADE, FR WIPER, RH

main85212-47040iZVW30200904-201112

85214ARUBBER, WIPER, RH

main85214-30390iZVW30200904-201112

85214BRUBBER, WIPER, LH

main85214-52110iZVW30201404

main85214-68020iZVW30201112-201404

85221BARM, FRONT WIPER, LH

main85221-47090iZVW30200904-201112

85222ABLADE, FR WIPER, LH

main85222-47100iZVW30201301-201404

main85222-47101iZVW30201404

main85222-75010iZVW30200904-201010

main85222-75011iZVW30201112-201212

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW30200904-201112

9011906864

main90119-06864

9017610005

main90176-10005

14 parts on this diagram · 1 diagram in section
