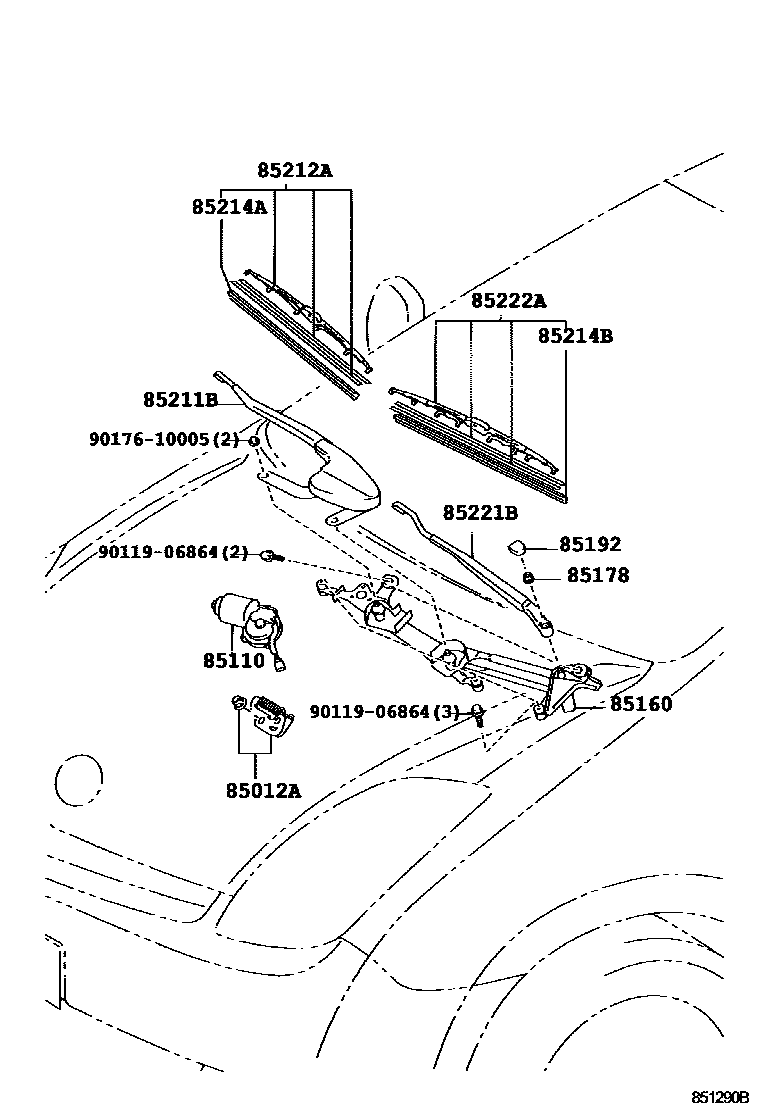

Toyota PRIUS — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58020iNHW20200308-200511

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47060iNHW20200308-200511

85160LINK ASSY, WINDSHIELD WIPER

main85150-47070iNHW20200308-200511

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iNHW20200308-200511

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iNHW20200308-200511

85211BARM, FRONT WIPER, RH

main85211-47050iNHW20200308-200511

85212ABLADE, FR WIPER, RH

main85212-47020iNHW20200308-200511

main85212-47021iNHW20200606-200903

85214ARUBBER, WIPER, RH

main85214-46010iNHW20200308-200511

main85214-46011iNHW20200606-200903

85214BRUBBER, WIPER, LH

main85214-44140iNHW20200308-200511

85221BARM, FRONT WIPER, LH

main85221-47040iNHW20200308-200511

85222ABLADE, FR WIPER, LH

main85222-47020iNHW20200308-200511

9011906864

main90119-06864

9017610005

main90176-10005

13 parts on this diagram · 1 diagram in section
