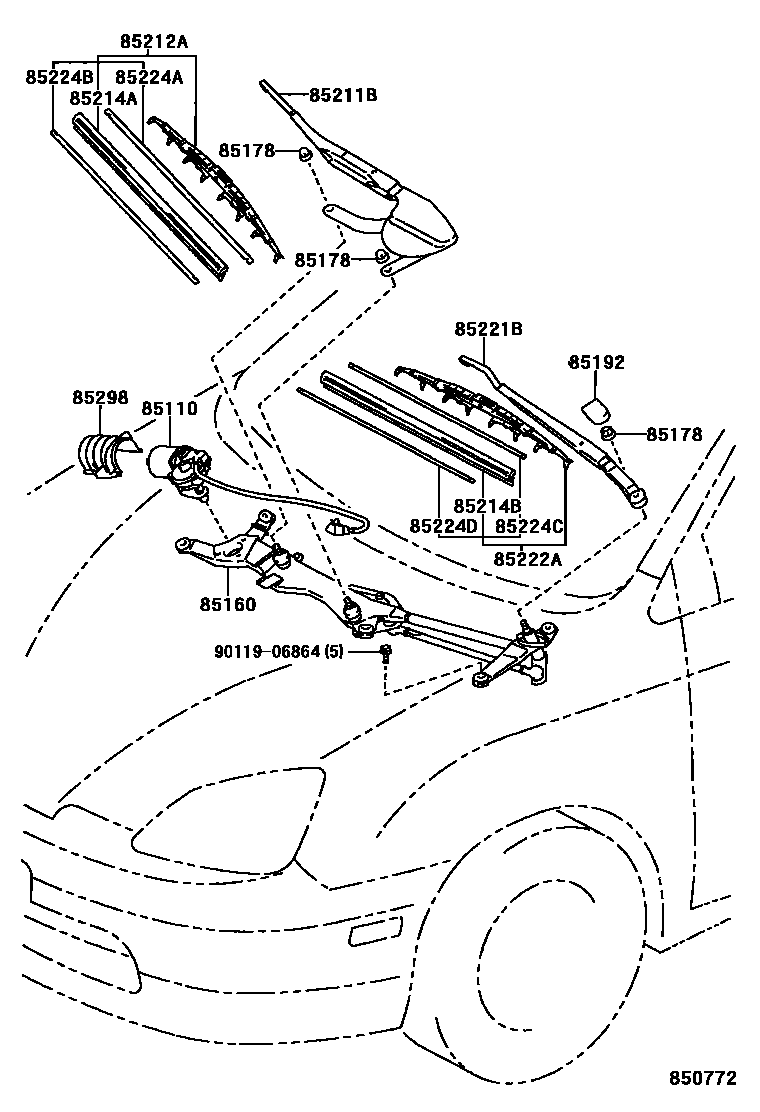

Toyota PRIUS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47030iNHW11200005

85160LINK ASSY, WINDSHIELD WIPER

main85150-47030iNHW11200005

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iNHW11200005

PASSENGER SIDE

main90179-10223iNHW11200005

DRIVER SIDE

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iNHW11200005

85211BARM, FRONT WIPER, RH

main85211-47020iNHW11200005

85212ABLADE, FR WIPER, RH

main85212-35070iNHW11200005

sub85212-35071

85214ARUBBER, WIPER, RH

main85214-12300iNHW11200106

sub85214-12301

main85214-35050iNHW11200005-200106

85214BRUBBER, WIPER, LH

main85214-44040iNHW11200005-200106

main85214-50100iNHW11200106

85221BARM, FRONT WIPER, LH

main85221-47020iNHW11200005

85222ABLADE, FR WIPER, LH

main85222-50040iNHW11200005

sub85222-12750

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35060iNHW11200005

sub85224-10190

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35060iNHW11200005

sub85224-10190

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-44040iNHW11200005

sub85224-44010

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-44040iNHW11200005

sub85224-44010

85298COVER, WIPER MOTOR

main85111-47010iNHW11200005

9011906864

main90119-06864

16 parts on this diagram · 1 diagram in section
