Toyota PRIUS — WINDSHIELD WASHER

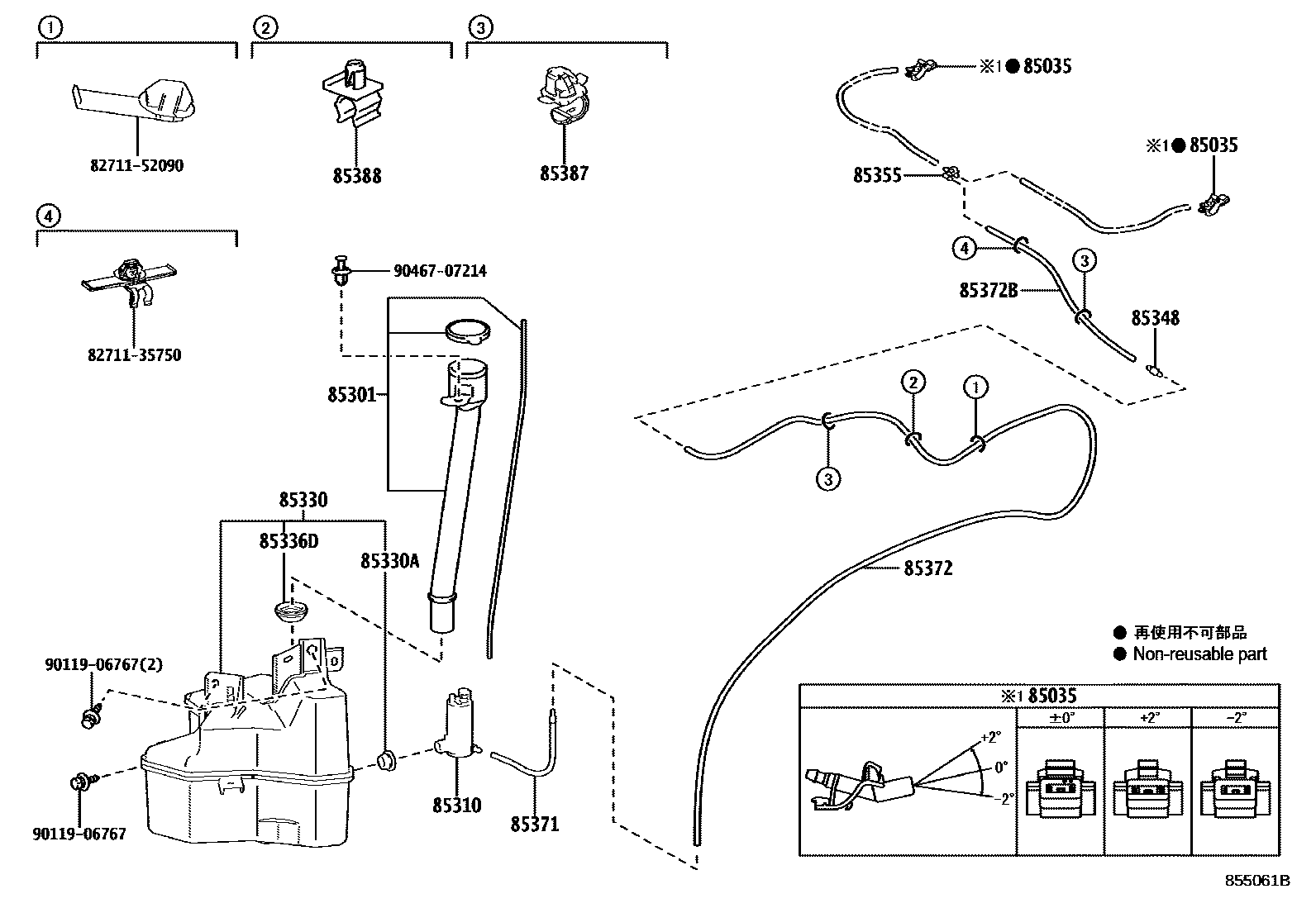

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-12360i202212
ANGLE 0
main85381-12440i202212
ANGLE +2
main85381-33080i202212
ANGLE -2
85301INLET SUB-ASSY, WASHER
main85301-47060i202212
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-48040i202212
85330JAR ASSY, WINDSHIELD WASHER
main85315-47280i202212
85330ABUSH, WINDSHIELD WASHER JAR
main90069-50012i202212
85336DPACKING, WINDSHIELD WASHER JAR
main85336-47270i202212
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-02650i202212
85355VALVE, WINDSHIELD WASHER HOSE
main85376-02650i202212
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90069-46263i202212
L=259
main90069-46263i202212
L=259,KOREA SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90069-46220i202212
L=1856
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90069-46210i202212
L=483
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85371-12040i202212
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85371-0A010i202212
8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35750
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9011906767
main90119-06767
9046707214
main90467-07214

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PRIUS

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
