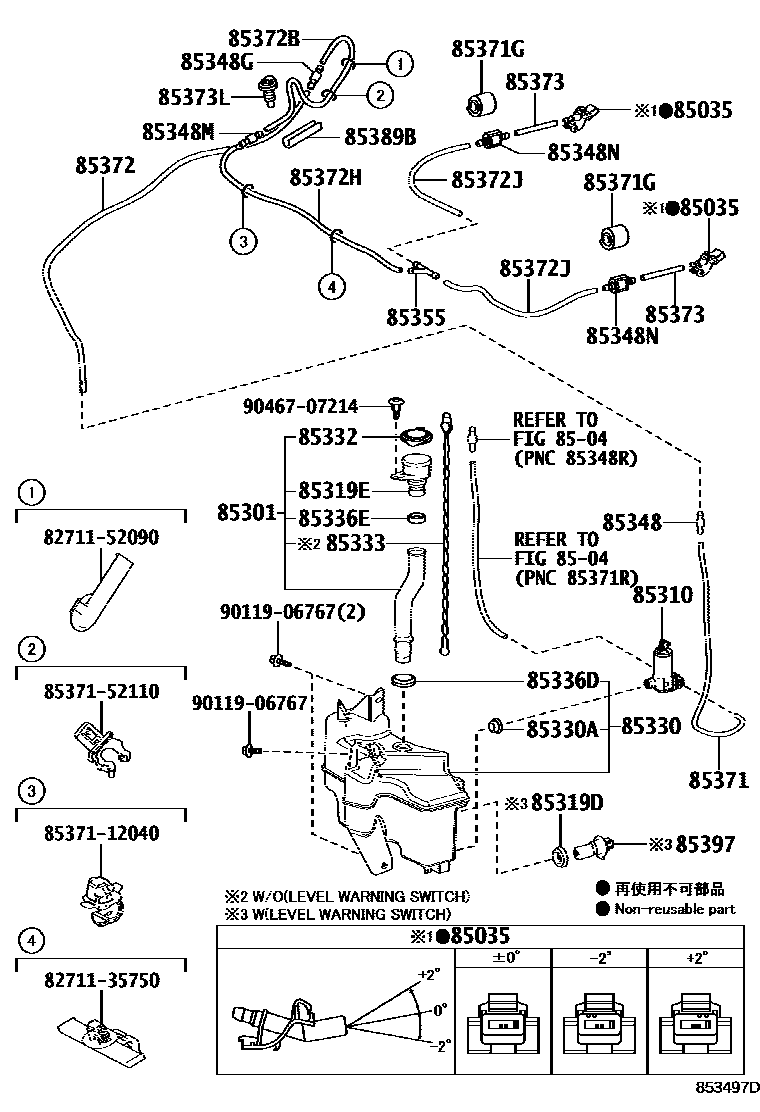

Toyota PRIUS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47090×2iZVW5#201812

ANGLE 0

main85381-47100×2iZVW5#201812

ANGLE -2

main85381-47110×2iZVW5#201812

ANGLE +2

8504

85301INLET SUB-ASSY, WASHER

main85319-47170iZVW5#201511-201812

main85319-47171iZVW5#202106

main85319-47200iZVW5#..E,G,H201511-201812

CANADA SPEC

main85319-47201iZVW5#..E,G,H202106

CANADA SPEC

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04010iZVW51..B201511-201708

sub85330-04011

main85330-0E030iZVW5#..E,G,H201511-201706

main85330-33070iZVW51..B201708-201812

ENTRY GRADE PACKAGE(REAR WIPER LESS)

main85330-47100iZVW5#..E,G,H201812

85319DPACKING, FRONT WASHER

main85319-33230iZVW5#..E,G,H201812

CANADA SPEC

85319EINLET WASHER

main85318-47200iZVW5#201511-201812

85330JAR ASSY, WINDSHIELD WASHER

main85315-47160iZVW5#201812

main85315-47200iZVW5#..E,G,H201511-201812

CANADA SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZVW5#201511-201812

85332CAP, WINDSHIELD WASHER JAR

main85316-47170iZVW5#201511-201812

main85316-47171iZVW5#202106

85333FILTER, WINDSHIELD WASHER JAR

main85312-47020iZVW5#201511-201812

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iZVW5#201511-201812

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iZVW5#201511-201812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iZVW5#201511-201812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22470iZVW5#201511-201812

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iZVW5#201511-201812

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85321-26020×2iZVW5#201511-201812

85355VALVE, WINDSHIELD WASHER HOSE

main85348-14390iZVW5#201511-201812

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iZVW5#201511-201812

L=1450(*H,L=560),CANADA SPEC

85371GPROTECTOR, FRONT WASHER

main85389-26080×2iZVW5#201511-201812

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iZVW5#201511-201812

L=1100(*H,L=790)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iZVW5#201511-201812

L=1450(*H,L=740)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZVW5#201511-201812

L=1450(*H,L=530)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080×2iZVW5#201511-201812

L=1450(*H,L=250)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZVW5#201511-201812

L=1450(*H,L=60)

85373LGROMMET, WASHER

main85373-47030iZVW5#201511-201812

85389BPROTECTOR, WINDSHIELD WASHER

main85389-12850iZVW5#201511-201812

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iZVW5#..E,G,H201511-201812

CANADA SPEC

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9011906767

main90119-06767

9046707214

main90467-07214

33 parts on this diagram · 1 diagram in section
