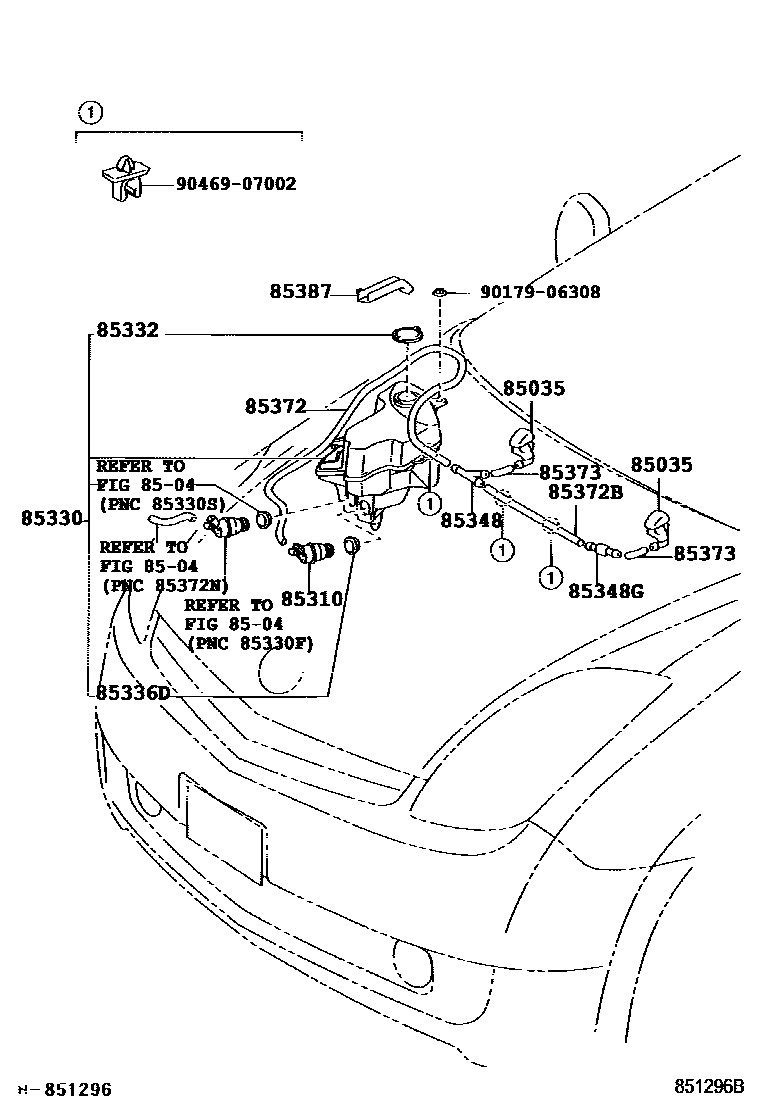

Toyota PRIUS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-47050×2iNHW20200308-200511

sub85381-68010

main85381-47080×2iNHW20200802-200903

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iNHW20200308-200511

85330JAR ASSY, WINDSHIELD WASHER

main85315-47050

main85315-47060

85332CAP, WINDSHIELD WASHER JAR

main85316-12221iNHW20200308-200511

85336DPACKING, WINDSHIELD WASHER JAR

main85336-60300iNHW20200308-200511

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iNHW20200308-200511

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNHW20200308-200511

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNHW20200308-200409

L=1450(*H,L=1370)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNHW20200308-200511

L=1450(*H,L=500)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iNHW20200308-200511

L=1450(*H,L=100)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-13160iNHW20200308-200511

9017906308

main90179-06308

9046907002

main90469-07002

14 parts on this diagram · 1 diagram in section
