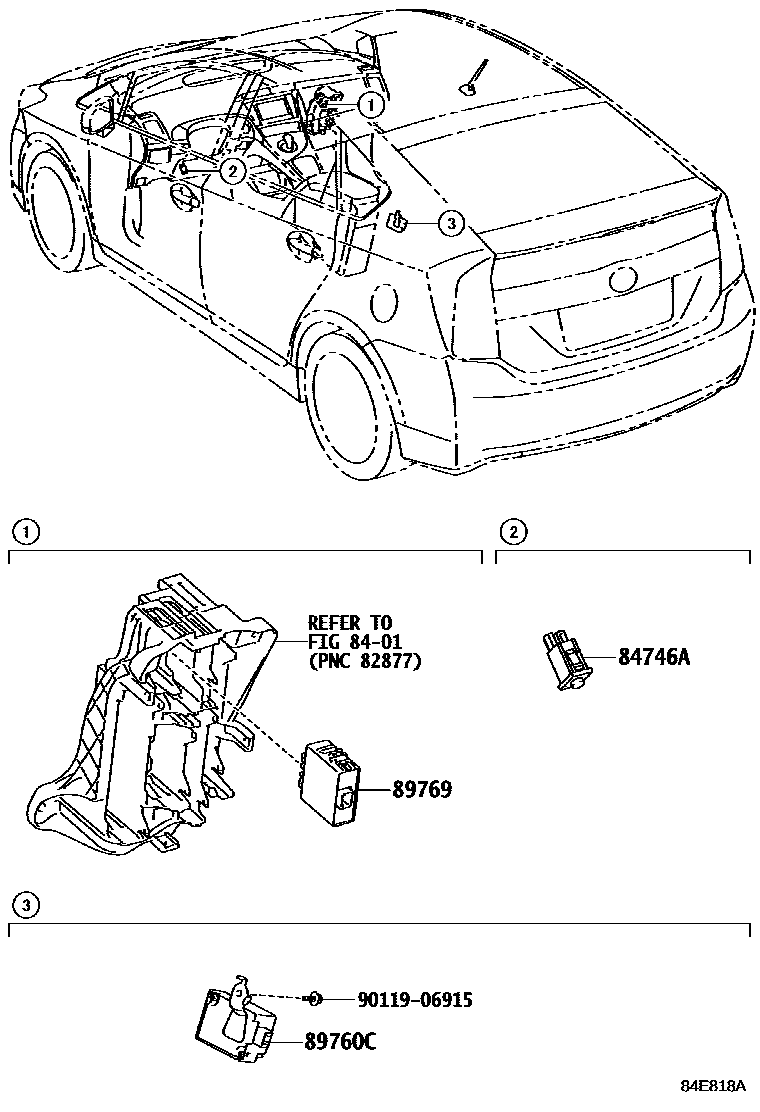

Toyota PRIUS — TIRE PRESSURE WARNING SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-47010i200904-201112

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-47030i200904-201112

main89760-47050i201405

KOREA SPEC

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-47030i200904-201112

KOREA SPEC; MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES

9011906915

main90119-06915

5 parts on this diagram · 1 diagram in section

TIRE PRESSURE WARNING SYSTEM for Toyota PRIUS

This section contains 5 genuine Toyota parts for the TIRE PRESSURE WARNING SYSTEM system of the Toyota PRIUS. Key components include: SWITCH & RELAY & COMPUTER, SWITCH, TIRE PRESSURE WARNING, NO.1, RECEIVER ASSY, TIRE PRESSURE MONITOR, COMPUTER, TIRE PRESSURE MONITOR.
