Toyota PRIUS — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM RELAY BLOCK 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1CONSOLE BOX 0008 1STEERING 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & LUGGAGE 1/2 0012 1FLOOR & LUGGAGE 2/2 0013 1FLOOR RELAY BLOCK 0014 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-12V90iMXWH6#202212

82715WBRACKET, WIRING HARNESS CLAMP

main82729-20040iMXWH6#202212

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-12X50iMXWH6#202212

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMXWH6#202212

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iMXWH6#202212

89467BSENSOR, AIR FUEL RATIO

main89467-47040iMXWH6#202212

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-47050iMXWH6#202212

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-47010iMXWH6#202212

89491SENSOR, ENGINE OIL LEVEL

main89491-33052iMXWH6#202212-202507

89615SENSOR, KNOCK CONTROL

main89615-20090iMXWH6#202212

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9167180616

main91671-80616

9167380616

main91673-80616

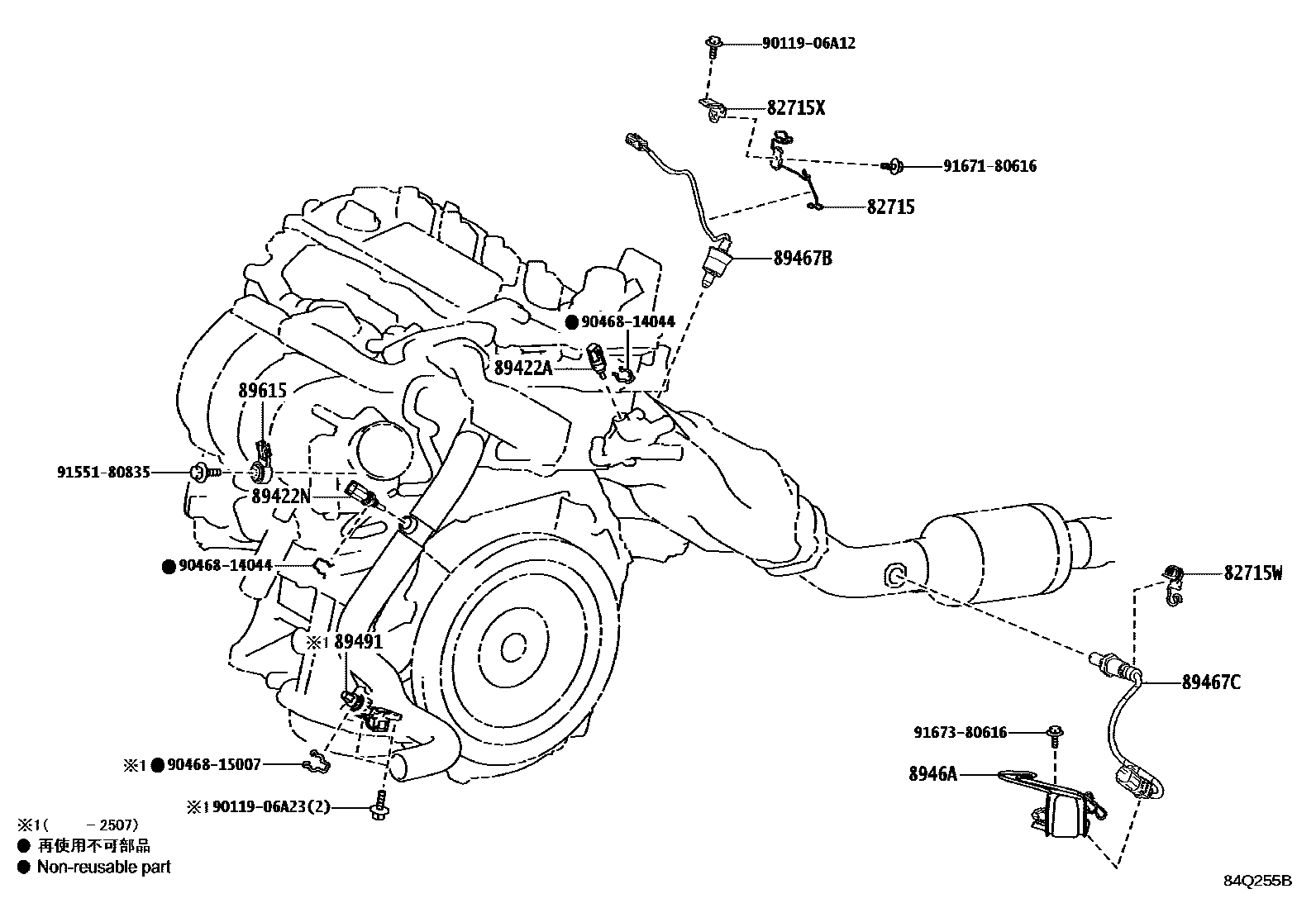

17 parts on this diagram · 14 diagrams in section
