Toyota PRIUS — SPEAKER

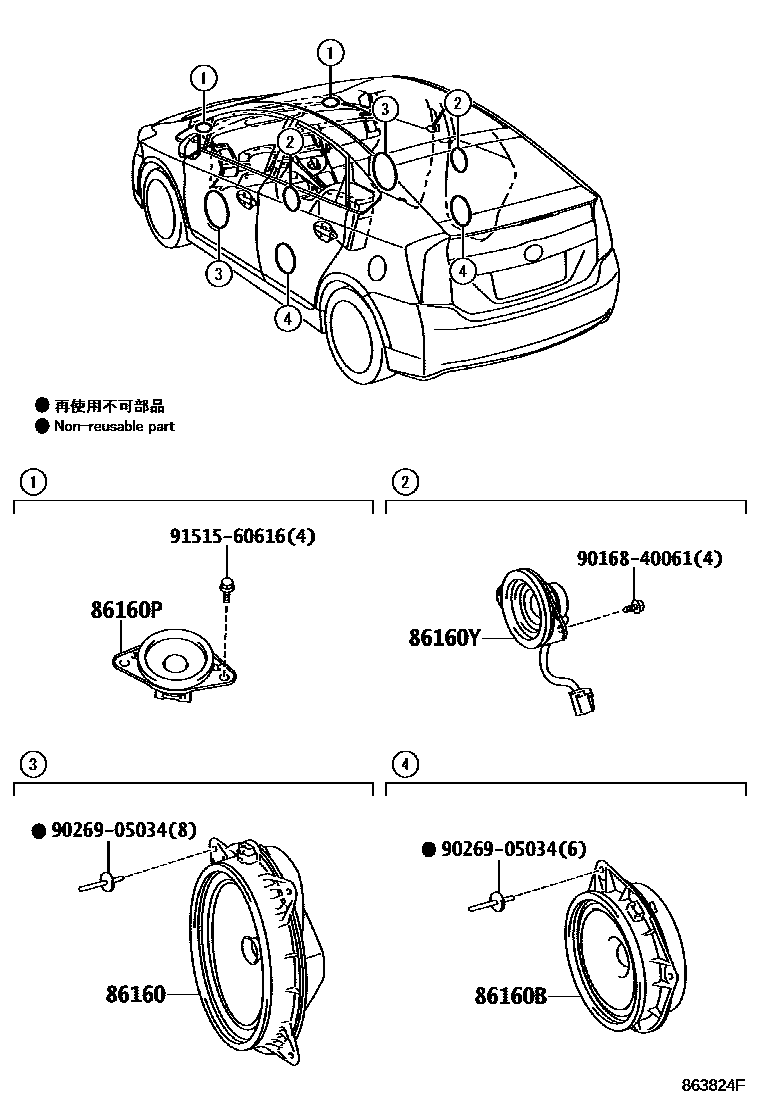

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
main86160-0WD10i200904-201112
AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
main86160-0WD10i200904-201112
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
main86160-0WV50i201112-201508
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-47190i201509
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-58240i200904-201112
86160BSPEAKER ASSY, REAR
main86160-0WM30i200904-201112
AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
main86160-0WM30i200904-201112
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
main86160-0WV60i201112-201508
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-22A10i200904-201106
main86160-47210i201509
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-52300i201107-201112
86160PSPEAKER ASSY, FRONT NO.2
main86160-0W800i200904-201112
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
main86160-0W800i200904-201112
AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
main86160-0WV70i201112-201508
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-47070i200904-201112
main86160-47200i201509
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
86160YSPEAKER ASSY, REAR NO.2
main86160-0WM40i200904-201112
AUDIO-CD-CHANGER,SDARS,BLUETOOTH,8SPEAKER
main86160-0WM40i200904-201112
AUDIO-AV,SDARS,BLUETOOTH,JBL,8SPEAKER
main86160-0WX10i201112-201509
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main86160-47230i201510-201511
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
9016840061
main90168-40061
9026905034
main90269-05034
9151560616
main91515-60616

7 parts on this diagram · 1 diagram in section

SPEAKER for Toyota PRIUS

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota PRIUS. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, REAR NO.2.
