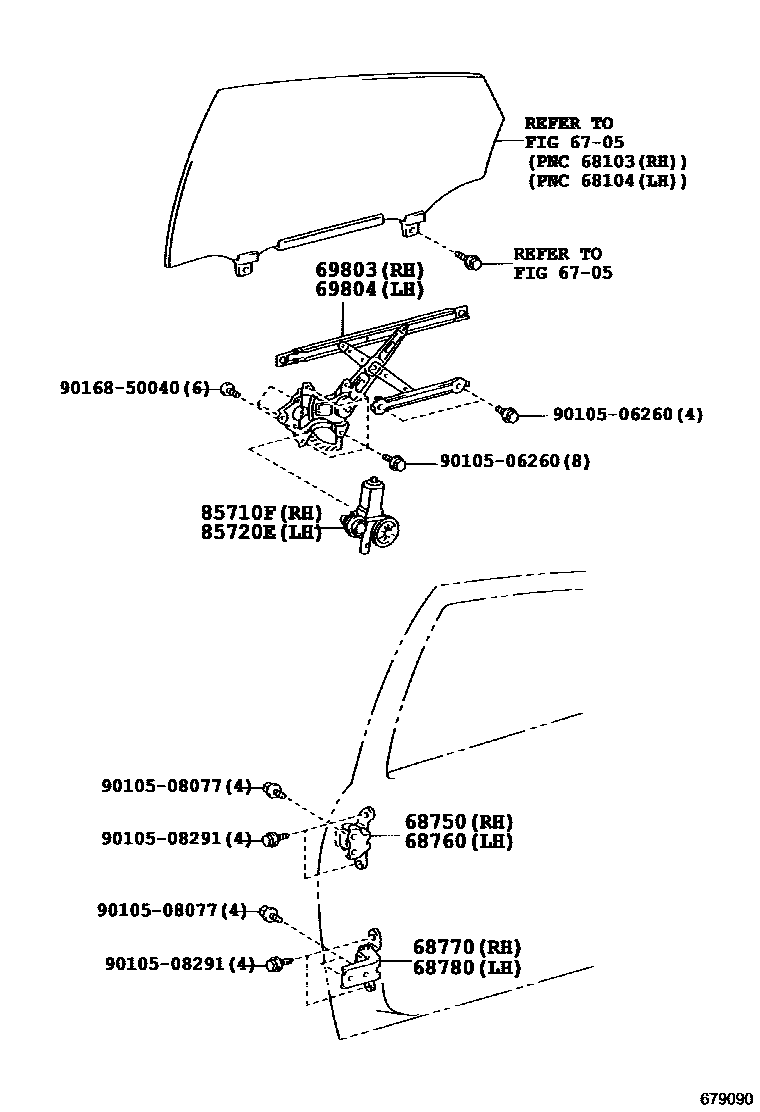

Toyota PRIUS — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20120iNHW20200308-200609

sub68750-20121

main68750-20121iNHW20200610-200903

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20120iNHW20200308-200609

sub68760-20121

main68760-20121iNHW20200610-200903

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52030iNHW20200308-200609

sub68770-52031

main68770-52031iNHW20200610-200903

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52030iNHW20200308-200609

sub68780-52031

main68780-52031iNHW20200610-200903

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52070iNHW20200308-200903

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52070iNHW20200308-200903

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iNHW20200308-200903

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iNHW20200308-200903

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
