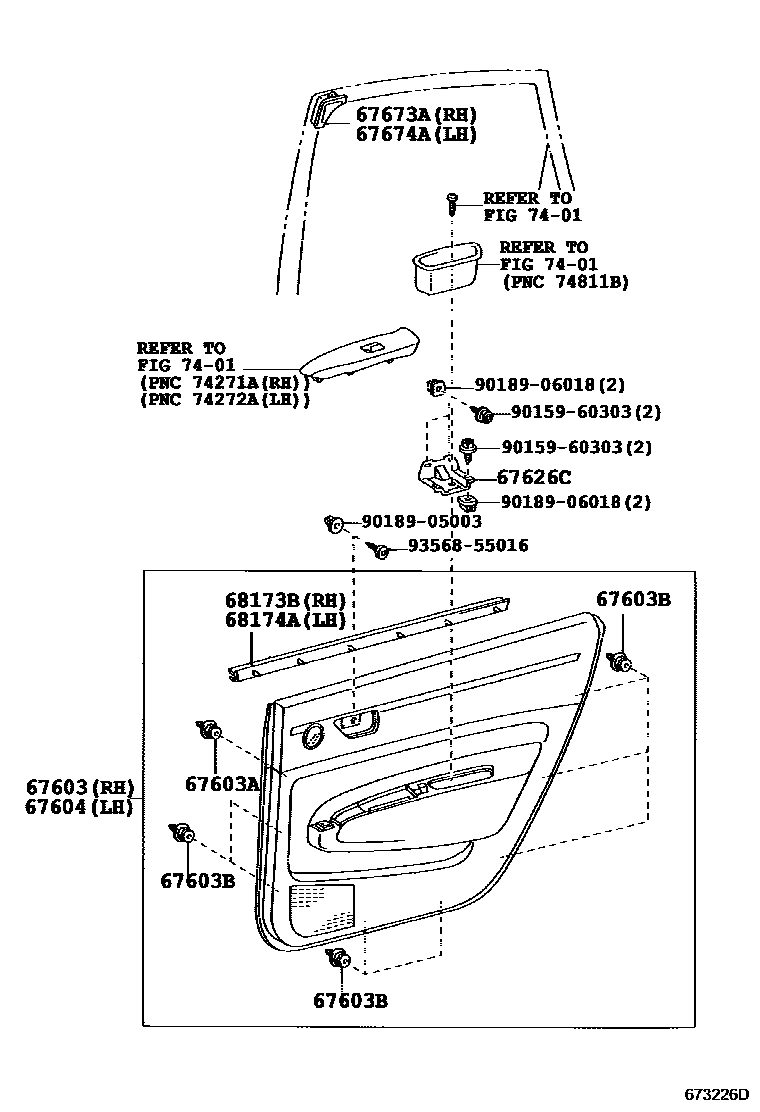

Toyota PRIUS — REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-47080-D0iNHW20200308-200511

DK.RED,TRIM1#

sub67630-47081

main67630-47080-E0iNHW20200308-200511

DK.BROWN,TRIM0#

sub67630-47081

main67630-47180-C0iNHW20200511-200903

BLACK,TRIM1#

main67630-47180-C1iNHW20200511-200903

BLACK,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080iNHW20200401-200903

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-10161iNHW20200308-200903

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-47080-D0iNHW20200308-200511

DK.RED,TRIM1#

sub67640-47081

main67640-47080-E0iNHW20200308-200511

DK.BROWN,TRIM0#

sub67640-47081

main67640-47180-C0iNHW20200511-200903

BLACK,TRIM1#

main67640-47180-C1iNHW20200511-200903

BLACK,TRIM4#

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-47010iNHW20200308-200903

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iNHW20200308-200903

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iNHW20200308-200903

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-47020iNHW20200308-200511

main68173-47030iNHW20200511-200903

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-47020iNHW20200308-200511

main68174-47030iNHW20200511-200903

7401

9015960303

main90159-60303

9018905003

main90189-05003

9018906018

main90189-06018

9356855016

main93568-55016

14 parts on this diagram · 2 diagrams in section
