Toyota PRIUS — PARTIAL ENGINE ASSEMBLY

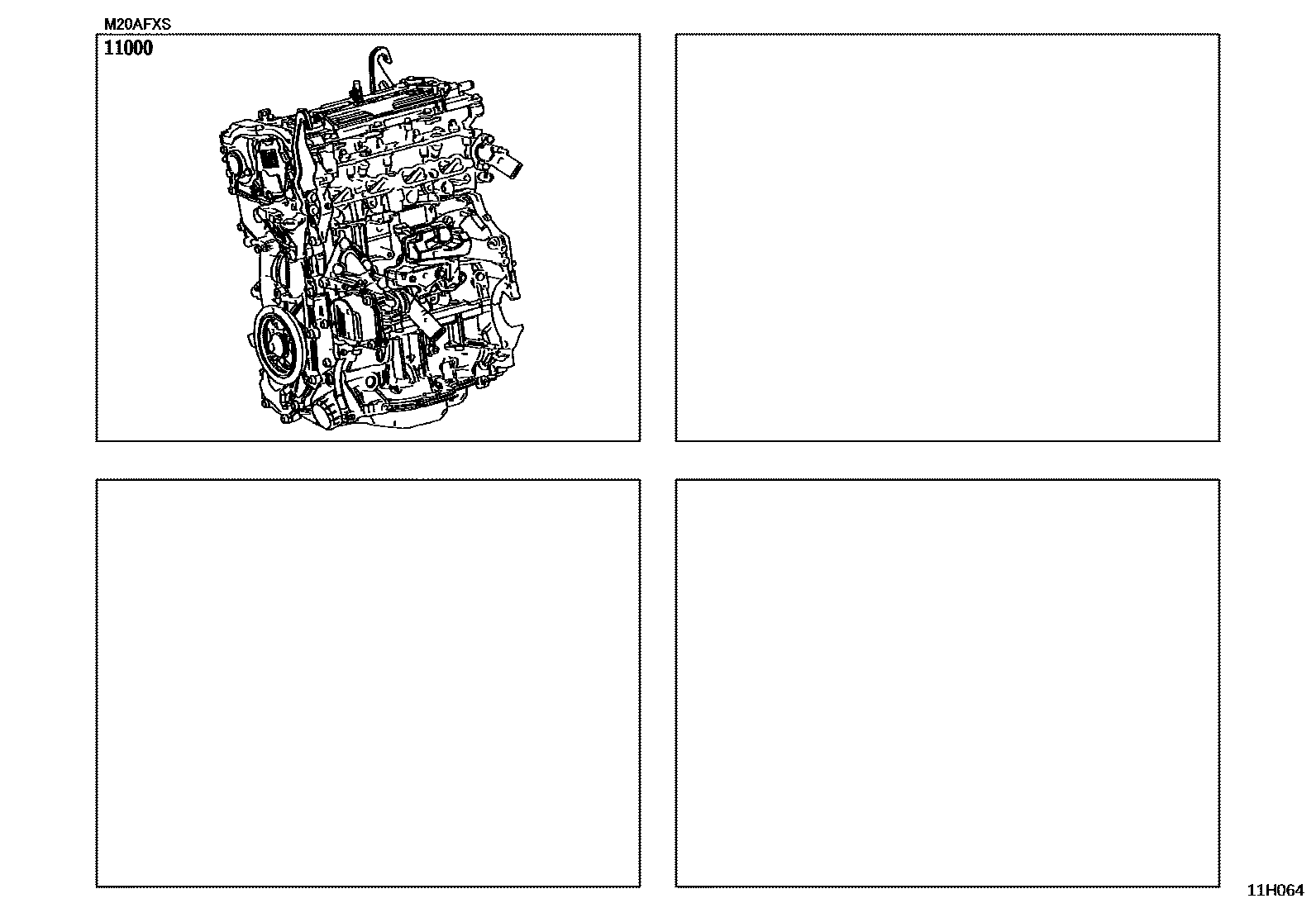

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-24390i202212-202409

main19000-24430i202303-202408

main19000-2U030i202409

main19000-2U040i202409

1 parts on this diagram · 1 diagram in section
