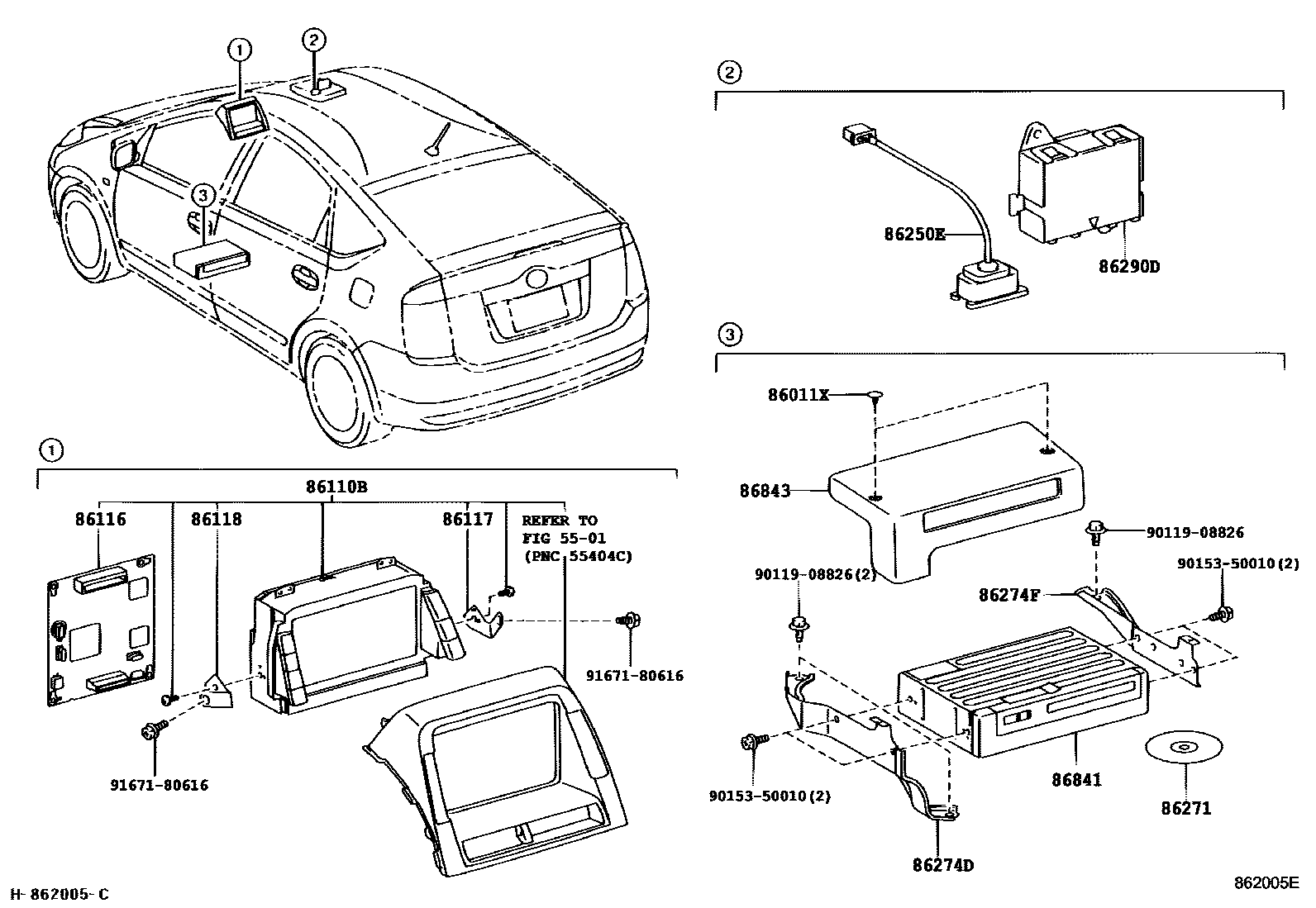

Toyota PRIUS — NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5501

86011XCLIP, NAVIGATION

86110BMULTI-DISPLAY ASSY

main86110-47080iNHW20200308-200402

sub86110-47081

main86110-47081-C0iNHW20200403-200511

BLACK,TRIM0#,1#

sub86110-47081

main86110-47081-C0iNHW20200511-200903

FUJITSU TEN,BLACK,TRIM1#,4#

sub86110-47081

86116CONTROLLER, VIDEO

main86116-47050iNHW20200308-200403

sub86116-47051

main86116-47051iNHW20200403-200903

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-47010iNHW20200308-200903

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-47010iNHW20200308-200903

86250EMICROPHONE ASSY, AMPLIFIER

86271DISC, DISC PLAYER

main86271-53021

main86271-53022

main86271-53023

main86271-33040

main86271-47040

main86271-33041

main86271-33042

main86271-33043

main86271-33044

main86271-33045

86274DBRACKET, DISC PLAYER

86274FBRACKET, DISC PLAYER, NO.2

86290DAMPLIFIER ASSY, MICROPHONE

86841COMPUTER, NAVIGATION

main86841-47040

main86841-50090

86843COVER, NAVIGATION COMPUTER

main86804-47010

main86804-47020

9011908826

main90119-08826

9015350010

main90153-50010

9167180616

main91671-80616

16 parts on this diagram · 2 diagrams in section
