Toyota PRIUS — MOUNTING

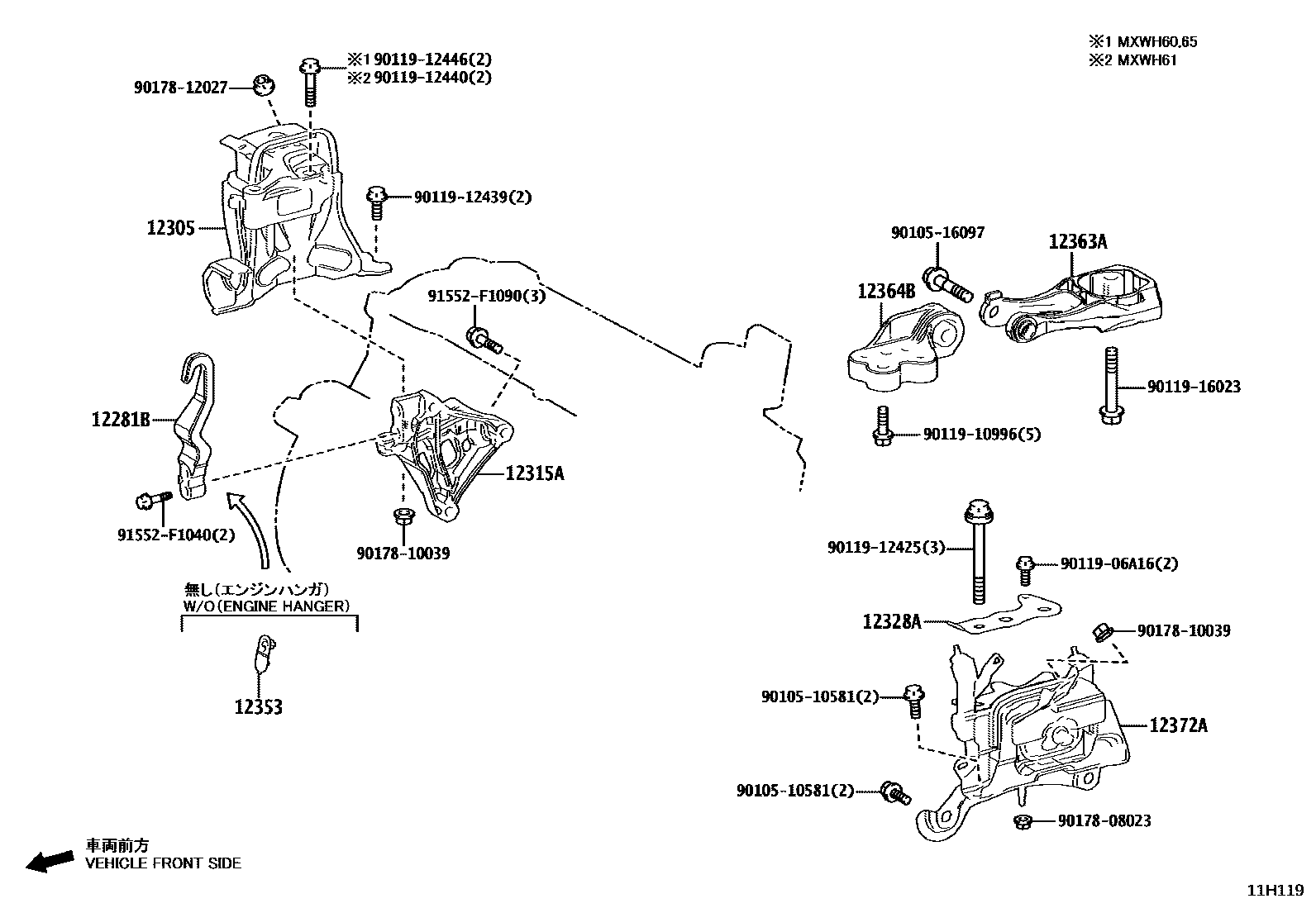

Parts diagram

12281BHANGER, ENGINE, NO.1

main12281-25030i202212

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-24050i202212

main12305-24060i202303

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-24011i202212

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-24040i202212

12353CAP, ENGINE MOUNTING BRACKET

main12353-15010i202212

12363AROD, ENGINE MOVING CONTROL

main12363-24050i202212

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-24020i202212

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-24090i202212

9010510581

main90105-10581

9010516097

main90105-16097

9011906A16

main90119-06A16

9011910996

main90119-10996

9011912425

main90119-12425

9011912439

main90119-12439

9011912440

main90119-12440

9011912446

main90119-12446

9011916023

main90119-16023

9017808023

main90178-08023

9017810039

main90178-10039

9017812027

main90178-12027

91552F1040

main91552-F1040

91552F1090

main91552-F1090

22 parts on this diagram · 1 diagram in section

MOUNTING for Toyota PRIUS

This section contains 22 genuine Toyota parts for the MOUNTING system of the Toyota PRIUS. Key components include: HANGER, ENGINE, NO.1, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, NO.2 LH, CAP, ENGINE MOUNTING BRACKET.
