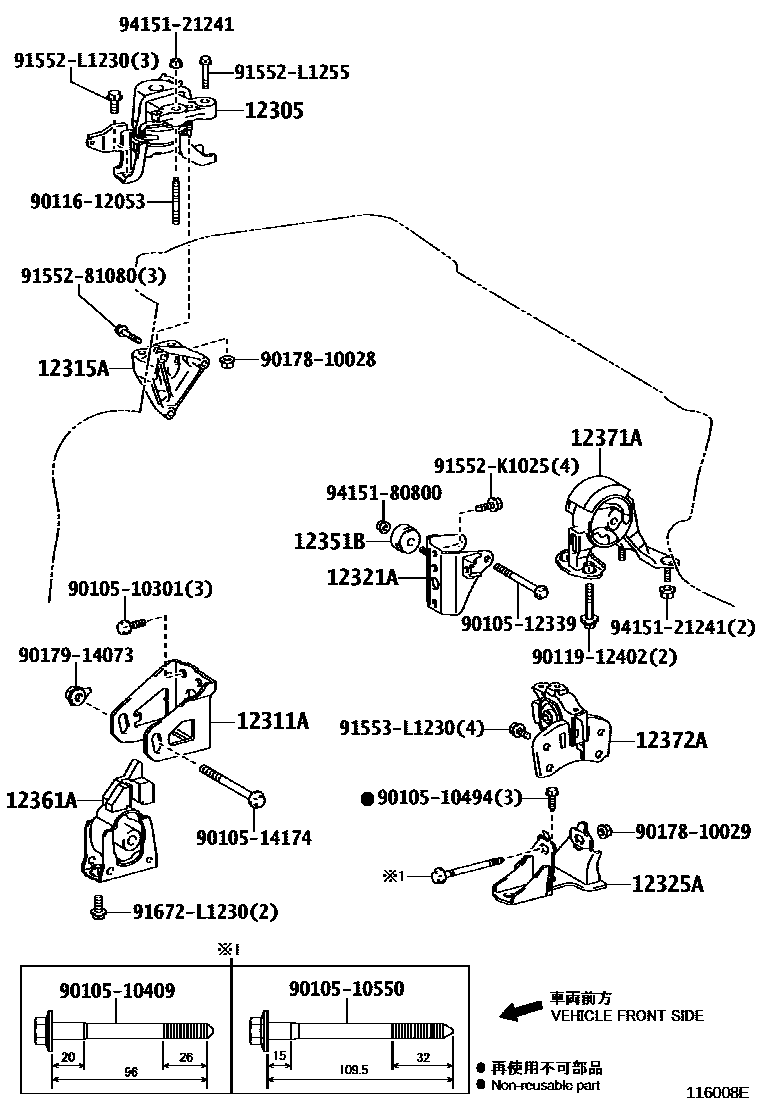

Toyota PRIUS — MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-37160i2ZRFXE..ZVW30200904-201112

sub12305-37161

main12305-37300i2ZRFXE..ZVW30201112-201404

main12305-37301i2ZRFXE..ZVW30201405

sub12305-37302

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-37090i2ZRFXE..ZVW30200904-201112

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37030i2ZRFXE..ZVW30200904-201112

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-37060i2ZRFXE..ZVW30200904-201112

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-37070i2ZRFXE..ZVW30200904-201112

12351BDAMPER, ENGINE MOUNTING

main12351-23010i2ZRFXE..ZVW30200904-201112

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-37090i2ZRFXE..ZVW30200904-201112

main12361-37150i2ZRFXE..ZVW30201310

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-37090i2ZRFXE..ZVW30200904-201111

main12371-37250i2ZRFXE..ZVW30201111-201112

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-37110i2ZRFXE..ZVW30200904-201112

9010510301

main90105-10301

9010510409

main90105-10409

9010510494

main90105-10494

9010510550

main90105-10550

9010512339

main90105-12339

9010514174

main90105-14174

9011612053

main90116-12053

9011912402

main90119-12402

9017810028

main90178-10028

9017810029

main90178-10029

9017914073

main90179-14073

9155281080

main91552-81080

91552K1025

main91552-K1025

91552L1230

main91552-L1230

91552L1255

main91552-L1255

91553L1230

main91553-L1230

91672L1230

main91672-L1230

9415121241

main94151-21241

9415180800

main94151-80800

28 parts on this diagram · 1 diagram in section
