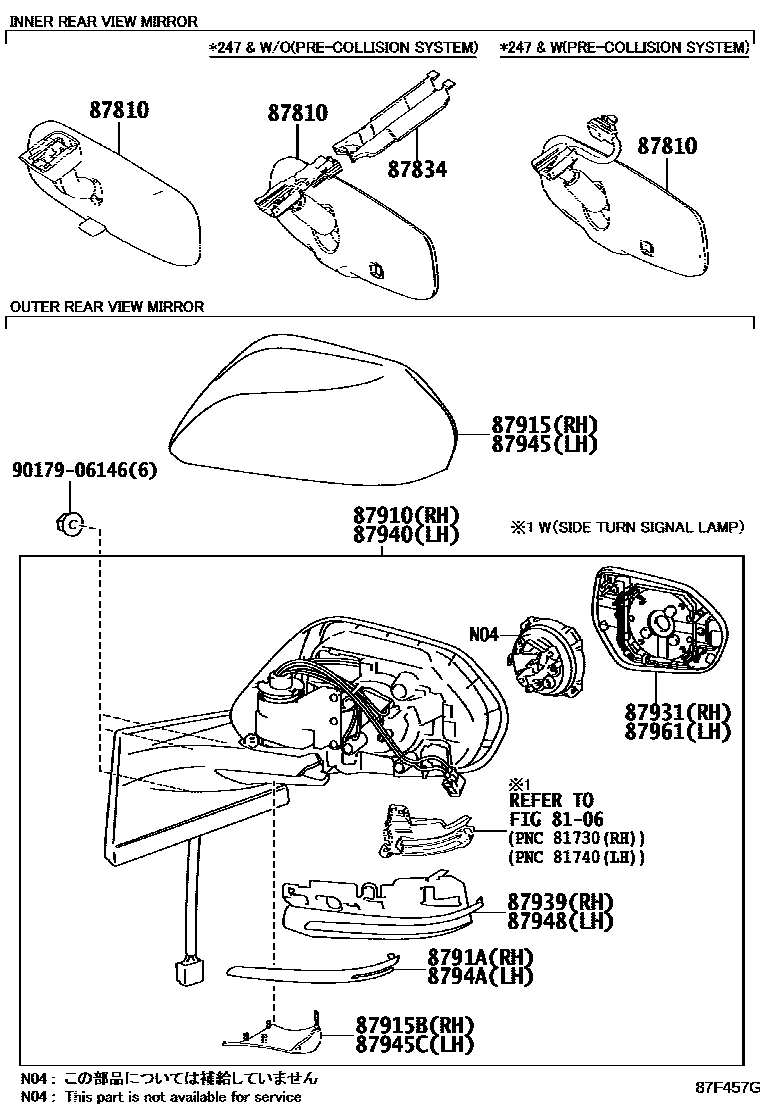

Toyota PRIUS — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-47010
87910MIRROR ASSY, OUTER REAR VIEW, RH
PLATED
PLATED
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
US NIGHT SHADE EDITION,ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87915BCOVER, OUTER MIRROR, LOWER RH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
8791ACOVER, OUTER MIRROR, RH NO.2
PLATED
87939COVER, OUTER MIRROR HOLE, RH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87940MIRROR ASSY, OUTER REAR VIEW, LH
PLATED
PLATED
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
US NIGHT SHADE EDITION,ATTITUDE BLACK MC.,040 ,1F7 ,218
BLACKISH AGEHA GF.,221
PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
FROSTY GREEN MC.,781
DK.BLUE M.M.,8W7
BLUE ME.,8X7
87945CCOVER, OUTER MIRROR, LOWER LH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
87948COVER, OUTER MIRROR HOLE, LH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
8794ACOVER, OUTER MIRROR, LH NO.2
PLATED
87961MIRROR OUTER, LH
9017906146
main90179-06146
16 parts on this diagram · 1 diagram in section
