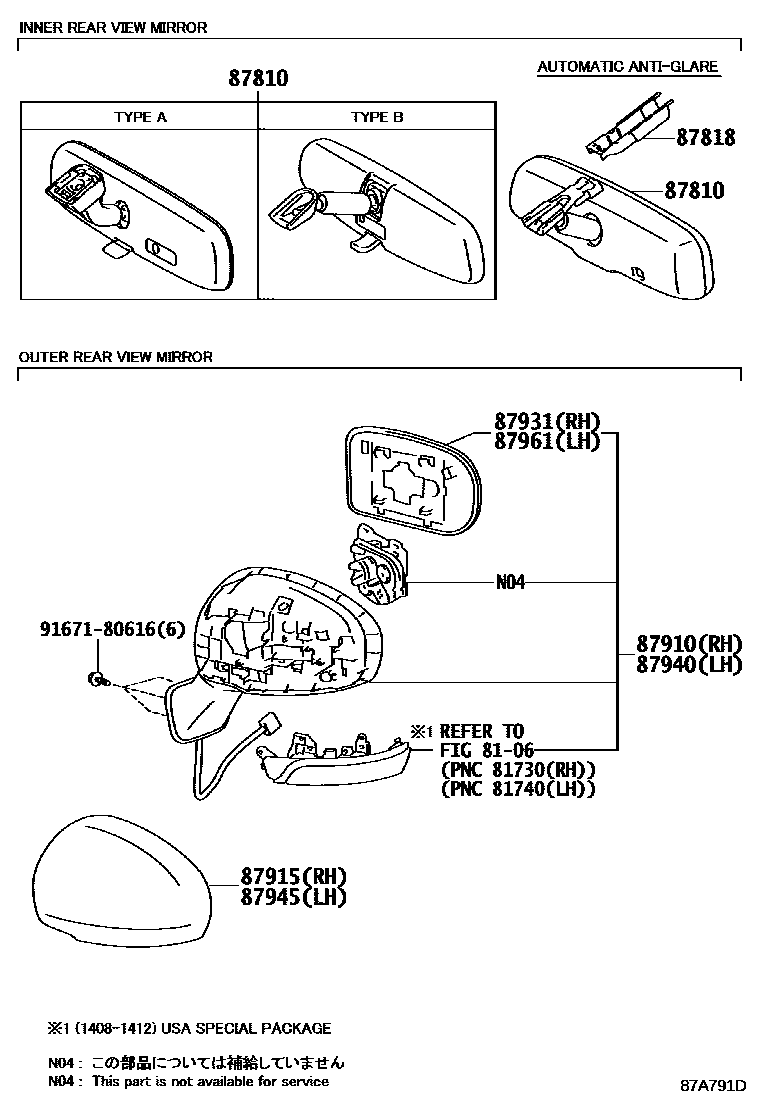

Toyota PRIUS — MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W240i200904-201008

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&GARAGE OPENER-WITH

main87810-0W241i201009-201112

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&GARAGE OPENER-WITH

main87810-0W241i201112-201511

AUDIO-*DA SDARS *BT USB 6SP&GARAGE OPENER-WITH

main87810-0W241i201112-201511

AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER&GARAGE OPENER-WITH

main87810-52041i201111-201511

TYPE A:REFER ILLUST.

main87810-52041i201011-201111

main87810-60191i200904-201011

main87810-AA011i201111-201511

TYPE B:REFER ILLUST.

87818COVER, INNER RR VIEW MIRROR

main87818-47010i201112

AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER&GARAGE OPENER-WITH

main87818-47010i201112

AUDIO-*DA SDARS *BT USB 6SP

main87818-47010i201112

AUDIO-*DA SDARS *BT USB 6SP&GARAGE OPENER-WITH

main87818-47010i201112

AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main87818-47010i200904-201112

KOREA UPPER PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87818-47010i200904-201112

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

main87818-47010i200904-201112

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&GARAGE OPENER-WITH

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-47170i200908-201112

NO PAINT REQ.

main87910-47180i200904-201112

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-47020-A0i200904-201511

WHITE PEARL CS.,070

main87915-47020-A1i201003-201511

SUPER WHITE 2,040

main87915-47020-B0i200904-201511

SILVER ME.,1F7

main87915-47020-C0i200904-201511

BLACK,202

main87915-47020-D0i200904-201511

RED M.M.,3R3

main87915-47020-D3i201210-201310

BORDEAUX MC.,3P2

main87915-47020-E0i200904-201112

BEIGE ME.,4T8

main87915-47020-H1i201112-201511

FROSTY GREEN MC.,781

main87915-47020-J0i200904-201112

DK.BLUE MC.,8T5

main87915-47020-J1i200904-201511

ABYSS GRAY ME.,8V1

main87915-47020-J6i201112-201511

DK.BLUE MC.,8S6

87931OUTER MIRROR, RH

main87931-47170i200908-201112

main87931-47180i200904-201112

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-47170i200908-201112

NO PAINT REQ.

main87940-47180i200904-201112

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-47020-A0i200904-201511

WHITE PEARL CS.,070

main87945-47020-A1i201003-201511

SUPER WHITE 2,040

main87945-47020-B0i200904-201511

SILVER ME.,1F7

main87945-47020-C0i200904-201511

BLACK,202

main87945-47020-D0i200904-201511

RED M.M.,3R3

main87945-47020-D3i201210-201310

BORDEAUX MC.,3P2

main87945-47020-E0i200904-201112

BEIGE ME.,4T8

main87945-47020-H1i201112-201511

FROSTY GREEN MC.,781

main87945-47020-J0i200904-201112

DK.BLUE MC.,8T5

main87945-47020-J1i200904-201511

ABYSS GRAY ME.,8V1

main87945-47020-J6i201112-201511

DK.BLUE MC.,8S6

87961MIRROR OUTER, LH

main87961-47170i200908-201112

main87961-47180i200904-201112

9167180616

main91671-80616

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota PRIUS

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER RR VIEW MIRROR, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
