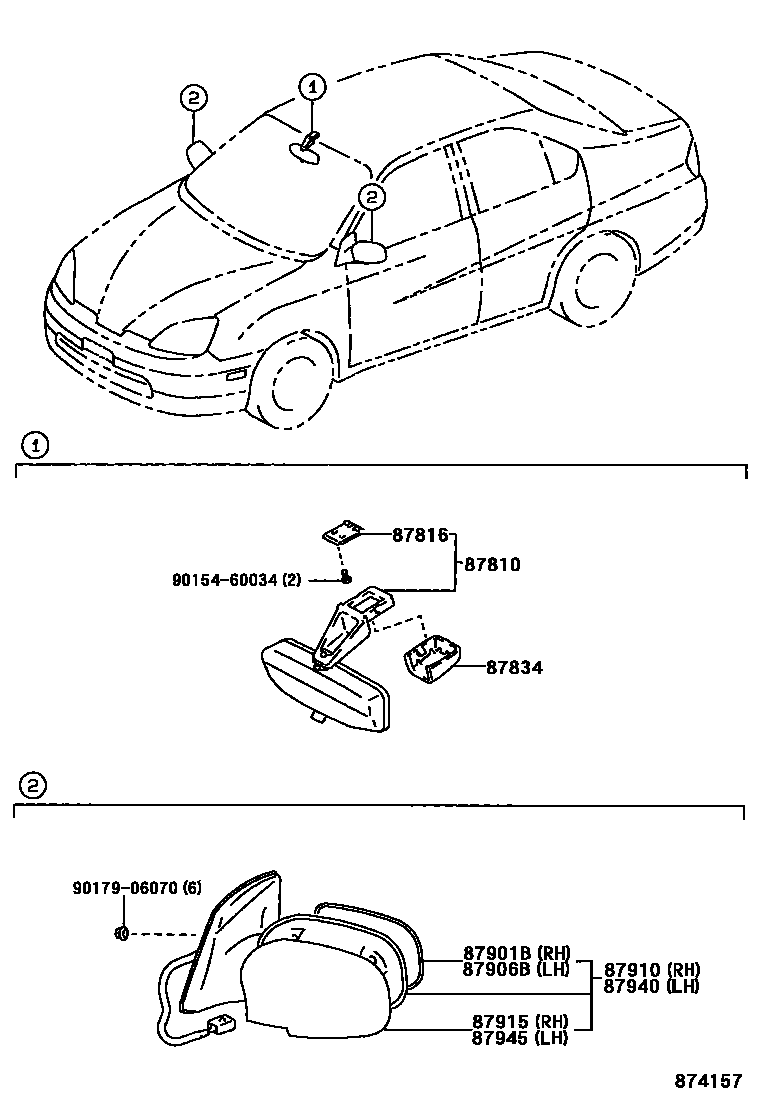

Toyota PRIUS — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
MD.CHARCOAL,TRIM9#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
MD.CHARCOAL,TRIM9#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BLACK,202
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BLACK,202
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BLACK,202
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PM.,057
SILVER ME.GR.,1C5
BLACK,202
DARK GREEN MC.,6R4
LT.AQUA ME.OP.,761
DK.BLUE MC.,8K8
BLUE M.M.,8P5
9015460034
main90154-60034
9017906070
main90179-06070
11 parts on this diagram · 1 diagram in section
MIRROR for Toyota PRIUS
This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota PRIUS. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
