Toyota PRIUS — METER

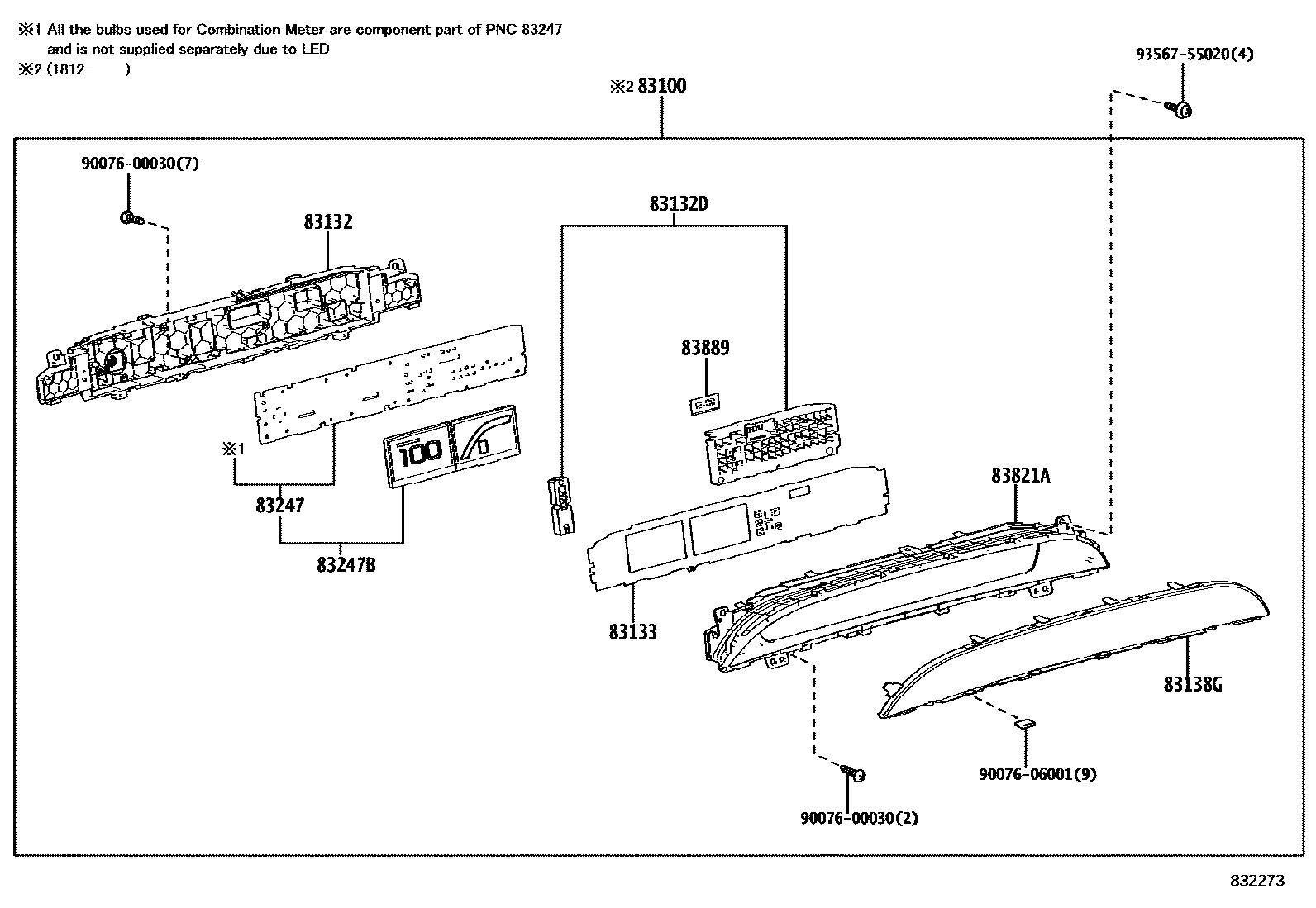

Parts diagram
83100METER ASSY, COMBINATION
main83800-47U70i201812-201908
YAZAKI
main83800-47Y30i201908-202007
YAZAKI
main83800-4E070i202007-202106
YAZAKI
main83800-4E250i202106-202110
YAZAKI
main83800-4E251i202111
YAZAKI
main83800-47U80i201812-201908
YAZAKI,USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-47U90i201812-201908
YAZAKI,CANADA SPEC
main83800-47V20i201812-201908
YAZAKI,KOREA SPEC&KOREA UPPER PACKAGE&FRONT FOG LAMP-WITH
main83800-47V50i201812-201908
YAZAKI,MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-47V70supersedes 83800-47V60i201812-201908
YAZAKI,CANADA SPEC
main83800-47V80i201812-201908
YAZAKI,KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-47Y40i201908-202007
YAZAKI,USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-47Y60i201908-202007
YAZAKI,CANADA SPEC
main83800-47Y70supersedes 83800-47Y50i201908-202007
YAZAKI,CANADA SPEC
main83800-47Z00i201908-202007
YAZAKI,KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83800-47Z10i201908-202007
YAZAKI,KOREA SPEC
main83800-47Z40i201908-202007
YAZAKI,MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E080i202007-202106
YAZAKI,USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E100i202007-202106
YAZAKI,CANADA SPEC
main83800-4E110supersedes 83800-4E090i202007-202106
YAZAKI,CANADA SPEC
main83800-4E140i202007-202106
YAZAKI,KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83800-4E150i202007-202106
YAZAKI,KOREA SPEC
main83800-4E180i202007-202106
YAZAKI,MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E260i202106-202110
YAZAKI,USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E261i202111
YAZAKI,USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E280i202106-202110
YAZAKI,CANADA SPEC
main83800-4E281i202111
YAZAKI,CANADA SPEC
main83800-4E290supersedes 83800-4E270i202106-202110
YAZAKI,CANADA SPEC
main83800-4E291supersedes 83800-4E271i202111
YAZAKI,CANADA SPEC
main83800-4E320i202106-202110
YAZAKI,KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83800-4E321i202111
YAZAKI,KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83800-4E330i202106-202110
YAZAKI,KOREA SPEC
main83800-4E331i202111
YAZAKI,KOREA SPEC
main83800-4E350i202106-202109
YAZAKI,MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83800-4E351i202110
YAZAKI,MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
83132CASE, COMBINATION METER
main83841-47L20i201511-201812
83132DCASE, COMBINATION METER, NO.2
main83842-47L20i201812
83133PLATE, COMBINATION METER, NO.1
main83811-47L20i201511-201608
main83811-47Q70i201608-201711
main83811-47S30i201711-201812
main83811-47U70i201812-202007
main83811-4E070i202007
main83811-47L40i201511-201608
CANADA SPEC
main83811-47M10i201511-201608
KOREA SPEC
main83811-47Q90i201704-201711
CANADA SPEC&PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
main83811-47R20i201608-201711
KOREA SPEC
main83811-47S50i201711-201812
CANADA SPEC
main83811-47S80i201711-201812
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83811-47T10i201812-201908
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83811-47U80i201908-202007
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83811-47U90i201812-202007
CANADA SPEC
main83811-47V20i201812-201908
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83811-47V50i201908-202007
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83811-4E100i202007
CANADA SPEC
main83811-4E140i202007
KOREA SPEC
main83811-4E180i202007
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
83138GGLASS, COMBINATION METER
main83852-47L00i201511-201711
main83852-47L70i201711-201812
83247PLATE, METER CIRCUIT
main83861-47L21i201603-201608
PRE-COLLISION SYSTEM-WITH
main83861-47Q70supersedes 83861-47Q80i201608-201704
main83861-47S30i201711-201812
main83861-47U70i201812-201908
main83861-47Y30i201908-202007
main83861-4E070i202007-202106
main83861-4E250i202106-202111
main83861-4E251i202111
main83863-47L20i201511-201603
PRE-COLLISION SYSTEM-WITH
main83861-47L41supersedes 83861-47L31i201603-201608
CANADA SPEC
main83861-47M10supersedes 83861-47L30i201511-201603
KOREA SPEC
main83861-47M11supersedes 83861-47L31i201603-201608
KOREA SPEC
main83861-47N30supersedes 83861-47L30i201511-201603
MEXICO SPEC
main83861-47N31supersedes 83861-47L31i201603-201608
MEXICO SPEC
main83861-47Q90i201704-201711
CANADA SPEC&PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
main83861-47R20supersedes 83861-47Q80i201608-201711
KOREA SPEC
main83861-47R50supersedes 83861-47Q80i201608-201711
MEXICO SPEC
main83861-47S40i201711-201812
USA POSSESSION SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47S50i201711-201812
CANADA SPEC
main83861-47S80i201711-201812
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47T10i201711-201812
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47U80i201812-201908
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47U90i201812-201908
CANADA SPEC
main83861-47V20i201812-201908
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&FRONT FOG LAMP-WITH
main83861-47V50i201812-201908
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47V70supersedes 83861-47V60i201812-201908
CANADA SPEC
main83861-47V80i201812-201908
KOREA SPEC&KOREA UPPER PACKAGE
main83861-47Y40i201908-202007
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-47Y60i201908-202007
CANADA SPEC
main83861-47Y70supersedes 83861-47Y50i201908-202007
CANADA SPEC
main83861-47Z00i201908-202007
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83861-47Z10i201908-202007
KOREA SPEC
main83861-47Z40i201908-202007
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E080i202007-202106
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E100i202007-202106
CANADA SPEC
main83861-4E110supersedes 83861-4E090i202007-202106
CANADA SPEC
main83861-4E140i202007-202106
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83861-4E150i202007-202106
KOREA SPEC
main83861-4E180i202007-202106
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E260i202106-202111
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E261i202111
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E280i202106-202111
CANADA SPEC
main83861-4E281i202111
CANADA SPEC
main83861-4E290supersedes 83861-4E270i202106-202111
CANADA SPEC
main83861-4E291supersedes 83861-4E271i202111
CANADA SPEC
main83861-4E320i202106-202111
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83861-4E321i202111
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83861-4E330i202106-202111
KOREA SPEC
main83861-4E331i202111
KOREA SPEC
main83861-4E350i202106-202110
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83861-4E351i202110
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83863-47L40supersedes 83861-47L30i201511-201603
CANADA SPEC
83247BPLATE, METER CIRCUIT, NO.2
main83862-47L21i201603-201608
PRE-COLLISION SYSTEM-WITH
main83862-47Q70supersedes 83862-47Q80i201608-201704
main83862-47S30i201711-201812
main83862-47U70i201812-201908
main83862-47Y30i201908-202007
main83862-4E070i202007-202106
main83862-4E250i202106-202111
main83862-4E251i202111
main83864-47L20i201511-201603
PRE-COLLISION SYSTEM-WITH
main83862-47L41supersedes 83862-47L31i201603-201608
CANADA SPEC
main83862-47M10supersedes 83862-47L30i201511-201603
KOREA SPEC
main83862-47M11supersedes 83862-47L31i201603-201608
KOREA SPEC
main83862-47N30supersedes 83862-47L30i201511-201603
MEXICO SPEC
main83862-47N31supersedes 83862-47L31i201603-201608
MEXICO SPEC
main83862-47Q90i201704-201711
CANADA SPEC&PRE-COLLISION SYSTEM-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
main83862-47R20supersedes 83862-47Q80i201608-201711
KOREA SPEC
main83862-47R50supersedes 83862-47Q80i201608-201711
MEXICO SPEC
main83862-47S40i201711-201812
USA POSSESSION SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47S50i201711-201812
CANADA SPEC
main83862-47S80i201711-201812
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47T10i201711-201812
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47U80i201812-201908
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47U90i201812-201908
CANADA SPEC
main83862-47V20i201812-201908
KOREA SPEC&PRE-COLLISION SYSTEM-WITHOUT&FRONT FOG LAMP-WITH
main83862-47V50i201812-201908
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47V70supersedes 83862-47V60i201812-201908
CANADA SPEC
main83862-47V80i201812-201908
KOREA SPEC&KOREA UPPER PACKAGE
main83862-47Y40i201908-202007
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-47Y60i201908-202007
CANADA SPEC
main83862-47Y70supersedes 83862-47Y50i201908-202007
CANADA SPEC
main83862-47Z00i201908-202007
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83862-47Z10i201908-202007
KOREA SPEC
main83862-47Z40i201908-202007
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E080i202007-202106
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E100i202007-202106
CANADA SPEC
main83862-4E110supersedes 83862-4E090i202007-202106
CANADA SPEC
main83862-4E140i202007-202106
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83862-4E150i202007-202106
KOREA SPEC
main83862-4E180i202007-202106
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E260i202106-202111
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E261i202111
USA DOMAIN SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E280i202106-202111
CANADA SPEC
main83862-4E281i202111
CANADA SPEC
main83862-4E290supersedes 83862-4E270i202106-202111
CANADA SPEC
main83862-4E291supersedes 83862-4E271i202111
CANADA SPEC
main83862-4E320i202106-202111
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83862-4E321i202111
KOREA SPEC&FRONT FOG LAMP-WITH&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main83862-4E330i202106-202111
KOREA SPEC
main83862-4E331i202111
KOREA SPEC
main83862-4E350i202106-202110
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83862-4E351i202110
MEXICO SPEC&PRE-COLLISION SYSTEM-WITHOUT
main83864-47L40supersedes 83862-47L30i201511-201603
CANADA SPEC
83821ACOVER, COMBINATION METER, NO.1
main83821-47L20i201812
83889MULTI-DISPLAY, COMBINATION METER
main83889-62010i201511-201812
9007600030
main90076-00030
9007606001
main90076-06001
9356755020
main93567-55020

12 parts on this diagram · 2 diagrams in section
