EPC Data

Toyota PRIUS — METER

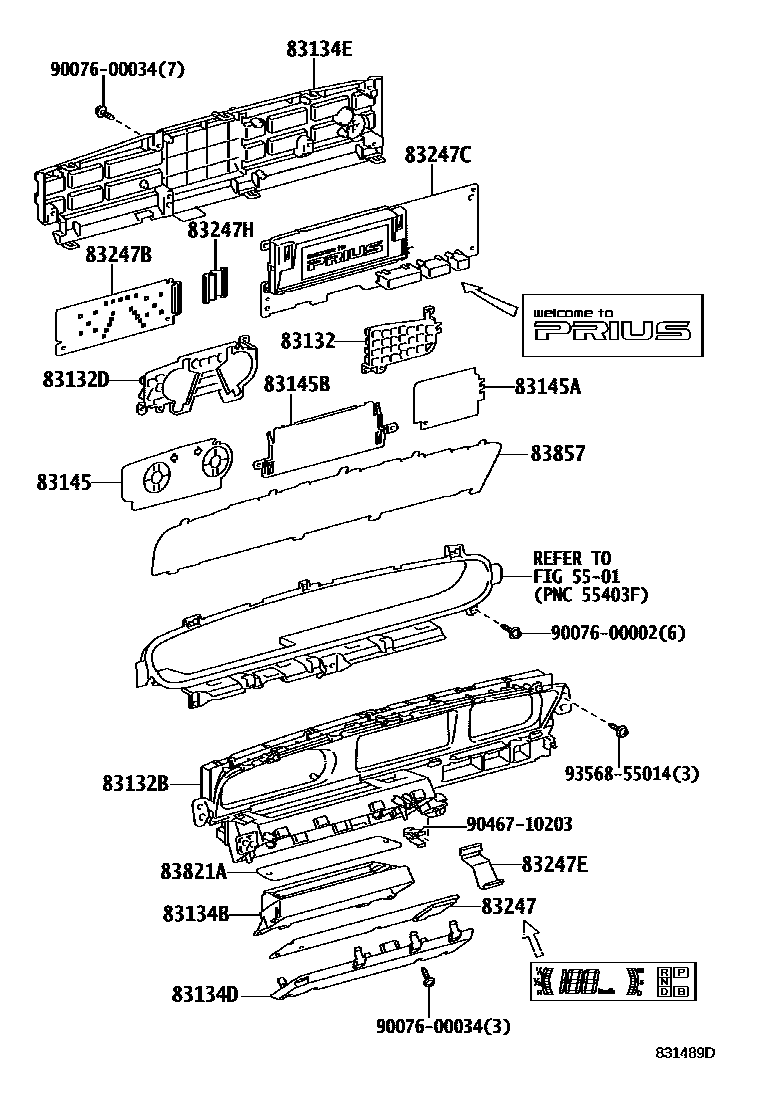

Parts diagram
5501
83132CASE, COMBINATION METER
main83841-47360i201112
83132BCASE, COMBINATION METER NO.3
main83843-47360i201112
main83841-47390i201112
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
83132DCASE, COMBINATION METER, NO.2
main83841-47890i201112
main83842-47360i200904-201112
main83842-47890i201112
main83843-47370i200908-201112
83134BCOVER, COMBINATION METER, NO.2
main83822-47360i201112
83134DCOVER, COMBINATION METER, NO.3
main83821-47360i200904-201112
83134ECOVER, COMBINATION METER, NO.4
main83823-47360i200904-201112
83145LENS, METER, NO.1
main83831-47360i200904-201112
main83831-47530i200908-201112
main83831-47890i201112-201304
main83831-47A10i201112
main83831-47B21i201304
main83831-47G00i201408
KOREA SPEC&HEADLAMP-LED&AUDIO-AVN BLUETOOTH USB JBL 8SPEAKER
83145ALENS, METER, NO.2
main83831-47370i201112
main83831-47380i201112
MEXICO SPEC
main83832-47360i201112
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
83145BLENS, METER, NO.3
main83833-47340i201112
83247PLATE, METER CIRCUIT
main83861-47360i200904-201112
main83861-47380i200904-201112
KOREA SPEC&AUDIO-AVN,BLUETOOTH,8SPEAKER
main83861-47890i201112
main83861-47A20i201112
KOREA SPEC&HEADLAMP-LED&AUDIO-AVN BLUETOOTH USB JBL 8SPEAKER
83247BPLATE, METER CIRCUIT, NO.2
main83861-47530i200908-201112
main83861-47A10i201112
main83861-47B21i201304
main83862-47360i200904-201112
main83862-47890i201112-201304
main83862-47D61i201408
MEXICO SPEC
83247CPLATE, MATER CIRCUIT, NO.3
main83861-47650i201011-201112
main83861-47720i201011-201112
main83861-47B30i201210-201304
main83861-47B31i201304-201310
main83861-47B40i201210-201310
main83861-47B50i201210-201304
main83861-47B51i201304-201310
main83861-47D40i201310-201408
main83861-47D41i201408
main83861-47D50i201310-201408
main83861-47D51i201408
main83862-47380i200904-201011
sub83862-47381
main83862-47530i200908-201011
sub83862-47531
main83862-47A10i201112-201210
main83862-47A20i201112-201210
main83861-47520i200904-201011
MEXICO SPEC
sub83861-47521
main83861-47630supersedes 83861-47640i201011-201112
HEADLAMP-LED
main83861-47710i201011-201109
MEXICO SPEC&HEADLAMP-LED
main83861-47A80supersedes 83861-47A00i201112-201210
MEXICO SPEC
main83861-47B20i201210-201304
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main83861-47C10i201210-201305
KOREA SPEC&HEADLAMP-LED&AUDIO-AVN BLUETOOTH USB JBL 8SPEAKER
main83861-47C11i201305-201310
KOREA SPEC&HEADLAMP-LED&AUDIO-AVN BLUETOOTH USB JBL 8SPEAKER
main83861-47D20i201310-201408
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main83861-47D21i201408
PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main83861-47E10supersedes 83861-47D30i201310-201408
MEXICO SPEC
main83861-47E11i201408
KOREA SPEC&AUDIO-RADIO LESS,6SPEAKER
main83861-47M40supersedes 83861-47D31i201408
MEXICO SPEC&HEADLAMP-LED
main83862-47B21i201304-201310
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
main83863-47360supersedes 83861-47370i200904-201011
HEADLAMP-LED
sub83863-47361
main83863-47890i201112-201210
AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER
83247EPLATE, MATER CIRCUIT, NO.4
main83864-47340i200904-201112
83247HPLATE, METER CIRCUIT, NO.5
main83865-47340i200904-201112
83821ACOVER, COMBINATION METER, NO.1
main83821-47340i201112
83857REFLECTOR, COMBINATION METER, NO.1
main83857-47340i200904-201112
9007600002
main90076-00002
9007600034
main90076-00034
9046710203
main90467-10203
9356855014
main93568-55014

21 parts on this diagram · 2 diagrams in section
