Toyota PRIUS — METER

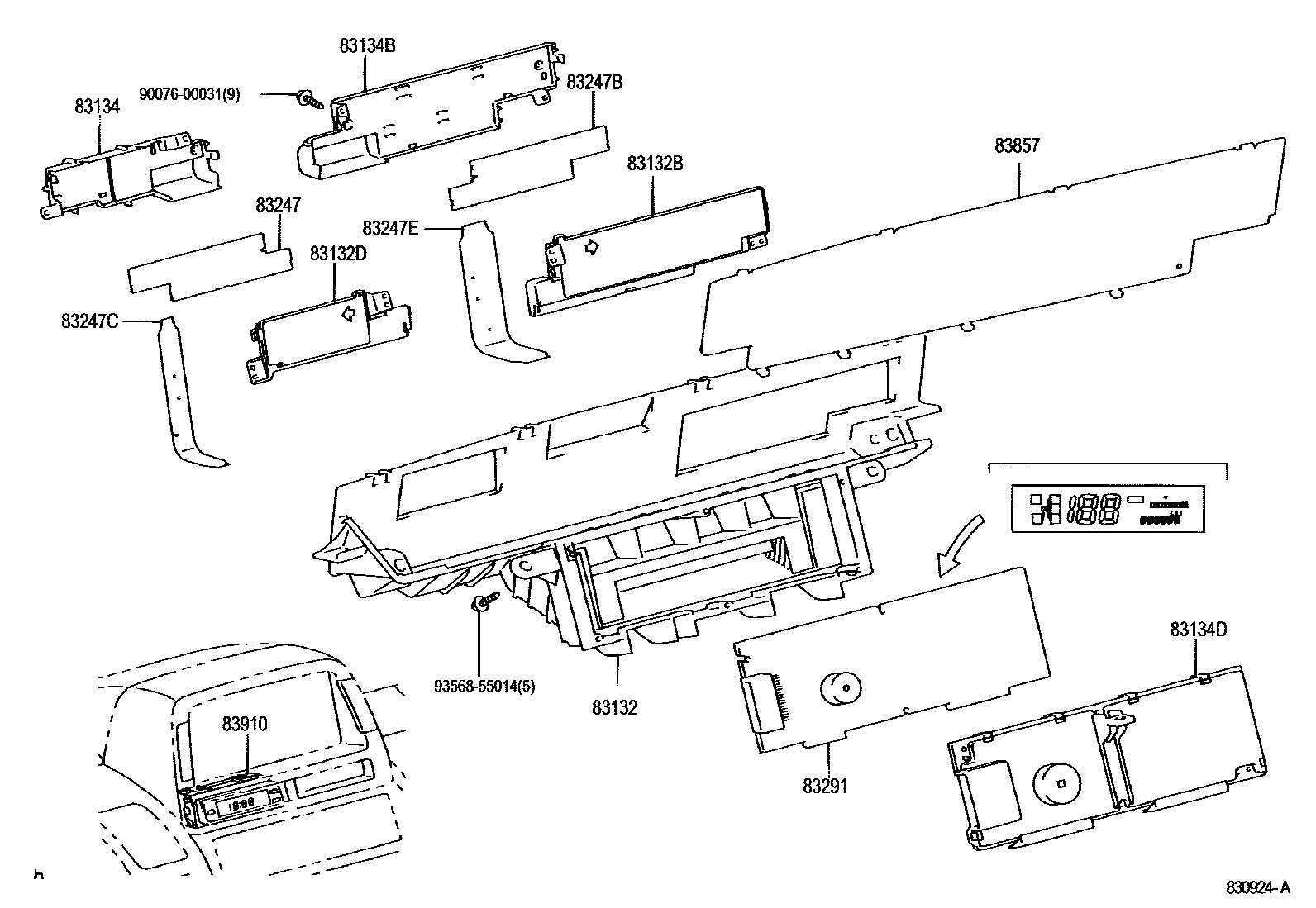

Parts diagram

83132CASE, COMBINATION METER

main83841-47100i200308-200404

main83841-47101i200404-200903

main83841-47120i200308-200404

83132BCASE, COMBINATION METER NO.3

main83841-47280i200511-200903

main83841-47300i200511-200903

main83843-47100i200308-200511

main83843-47120i200308-200511

83132DCASE, COMBINATION METER, NO.2

main83842-47100i200308-200903

main83842-47120i200308-200903

83134COVER, COMBINATION METER, NO.1

main83821-47100i200308-200903

83134BCOVER, COMBINATION METER, NO.2

main83822-47100i200308-200903

83134DCOVER, COMBINATION METER, NO.3

main83823-47100i200308-200903

83247PLATE, METER CIRCUIT

main83861-47100i200308-200511

main83861-47280i200511-200903

83247BPLATE, METER CIRCUIT, NO.2

main83861-47110i200308-200511

main83861-47120i200308-200511

main83861-47290i200511-200903

main83861-47300i200511-200903

83247CPLATE, MATER CIRCUIT, NO.3

main83863-47100i200308-200903

83247EPLATE, MATER CIRCUIT, NO.4

main83864-47100i200308-200903

83291COMPUTER, COMBINATION METER

main83291-47100i200308-200404

main83291-47101i200404-200408

main83291-47110i200408-200511

main83291-47120i200308-200404

main83291-47121i200404-200408

main83291-47160i200408-200511

main83291-47230i200511-200701

main83291-47231i200702-200902

main83291-47232i200903-200903

main83291-47240i200511-200701

main83291-47241i200702-200902

main83291-47242i200903-200903

83857REFLECTOR, COMBINATION METER, NO.1

main83857-47100i200308-200903

83910CLOCK ASSY

main83910-47030i200308-200311

main83910-47040i200311-200903

9007600031

main90076-00031

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section

METER for Toyota PRIUS

This section contains 15 genuine Toyota parts for the METER system of the Toyota PRIUS. Key components include: CASE, COMBINATION METER, CASE, COMBINATION METER NO.3, CASE, COMBINATION METER, NO.2, COVER, COMBINATION METER, NO.1, COVER, COMBINATION METER, NO.2.
