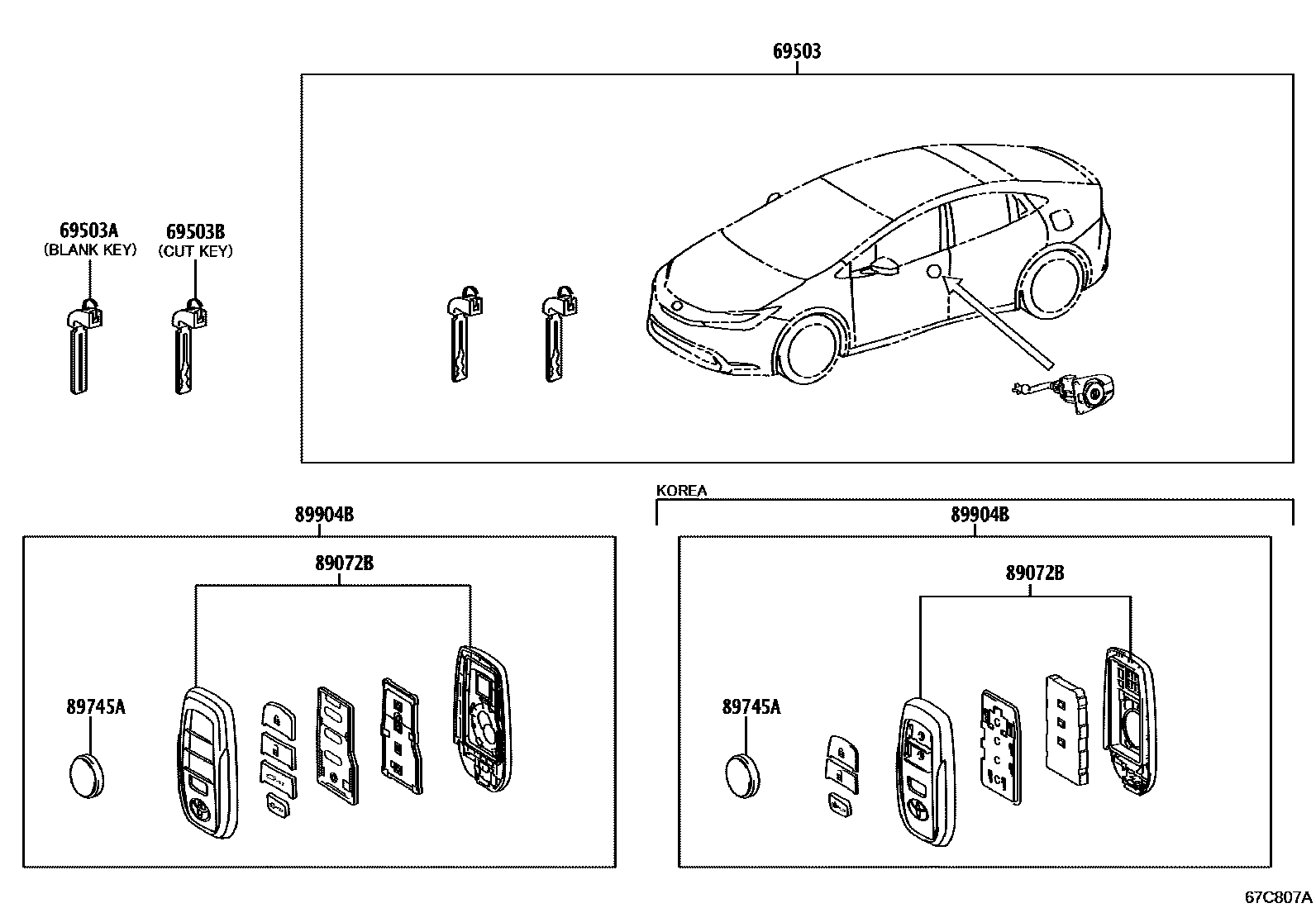

Toyota PRIUS — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47310i202212

69503AKEY, BLANK

main69515-K0020i202212

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-K0010i202212

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-47550×2i202212

main89072-47600×2i202212

main89072-47620×2i202303

main89072-47570×2i202212

KOREA SPEC

main89072-47580×2supersedes 89072-47610i202303

KOREA SPEC

89745ABATTERY, TRANSMITTER

main89745-K0010i202212

CR2450

main89745-K0020i202212

CR2450,KOREA SPEC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-47070i202212-202410

main8990H-47071i202411

main8990H-47120i202212-202310

REFER TO PNC 89990A

main8990H-47140i202303-202410

main8990H-47141i202411

main8990H-47240i202310

REFER TO PNC 89990A

main8990H-47090i202212-202410

KOREA SPEC

main8990H-47091i202411

KOREA SPEC

main8990H-47100supersedes 8990H-47131i202303-202410

KOREA SPEC

main8990H-47101supersedes 8990H-47131i202411

KOREA SPEC

6 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 6 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY), BATTERY, TRANSMITTER.
