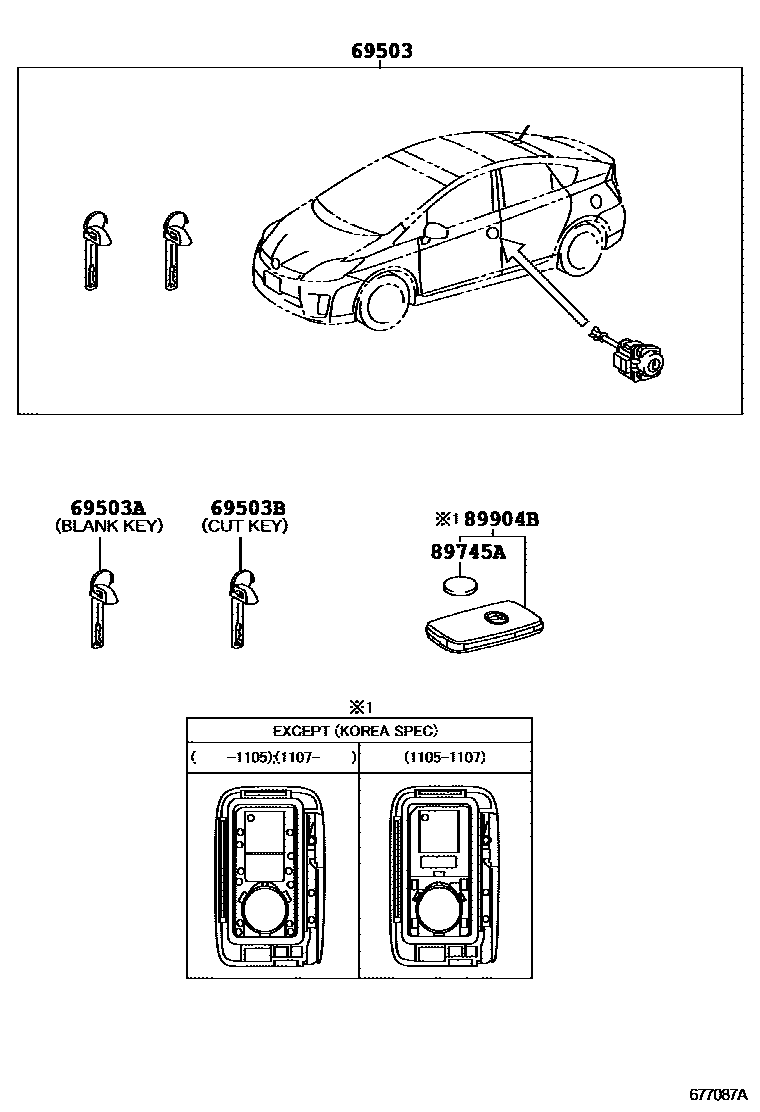

Toyota PRIUS — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47120i200904-201112

69503AKEY, BLANK

main69515-52120×2i201112

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-52110×2i201112

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-52020i200904-201112

CR1632

main89745-52030i201112

CR1632,KOREA SPEC; CR1632,KOREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47230×2i200904-201105

main89904-47370×2i201112

main89904-47430×2i201105-201107

main89904-47150×2i200904-201105

MOON ROOF-WITH(SOLAR PANEL)

main89904-47250×2i200909-201105

KOREA SPEC&KOREA UPPER PACKAGE

main89904-47251×2i201112

KOREA SPEC

main89904-47320×2i201112

KOREA SPEC&MOON ROOF-WITH(SOLAR PANEL)

main89904-47350×2i201112

MOON ROOF-WITH(SOLAR PANEL); MOON ROOF-WITH(SOLAR PANEL)&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)

main89904-47420×2i201105-201107

MOON ROOF-WITH(SOLAR PANEL)

5 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 5 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER SET, LOCK, KEY, BLANK, KEY, CUT, BATTERY, TRANSMITTER, TRANSMITTER SUB-ASSY, ELECTRICAL KEY.
