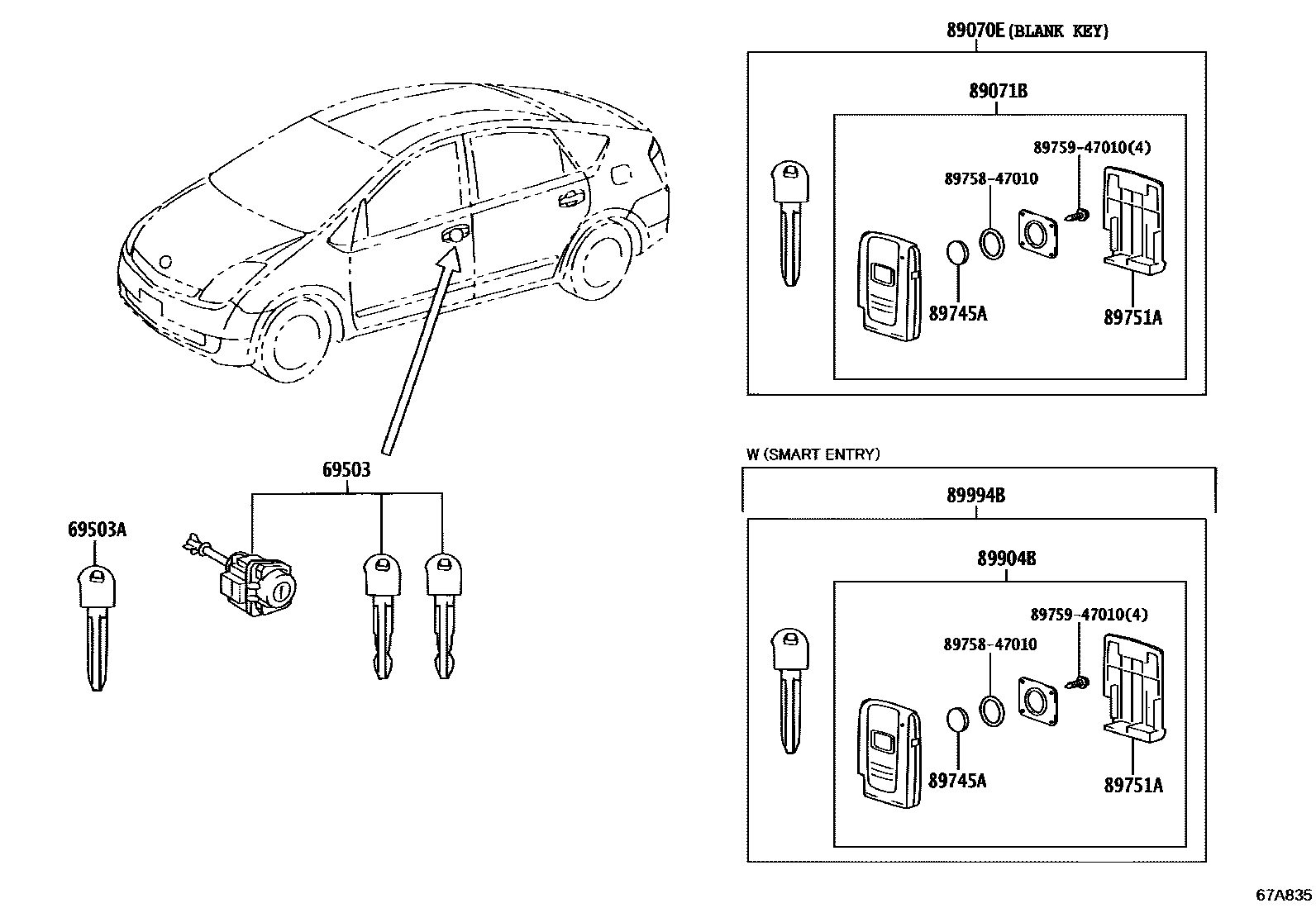

Toyota PRIUS — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47080i200308-200511

69503AKEY, BLANK

main69515-47010i200511-200903

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-47180i200511-200903

W(SMART ENTRY)

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-47030×2i200511-200808

W(SMART ENTRY)

main89071-47080×2i200808-200903

W(SMART ENTRY)

89745ABATTERY, TRANSMITTER

main89745-47010×2i200511-200903

W(SMART ENTRY)

89751ACOVER, TRANSMITTER HOUSING

main89751-47010×2supersedes 89751-47020i200308-200511

W(SMART ENTRY)

main89751-47020×2i200308-200511

W(SMART ENTRY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47010×2i200308-200310

W(SMART ENTRY)

main89904-47011×2i200310-200511

W(SMART ENTRY)

89994BTRANSMITTER, ELECTRICAL KEY

main89994-47060i200308-200310

W(SMART ENTRY),BLANK KEY

main89994-47061i200310-200511

W(SMART ENTRY)

main89994-47090i200308-200310

W(SMART ENTRY),CUT KEY

8975847010PACKING, DOOR CONTROL TRANSMITTER

main89758-47010

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

10 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota PRIUS

This section contains 10 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota PRIUS. Key components include: CYLINDER SET, LOCK, KEY, BLANK, TRANSMITTER ASSY, DOOR CONTROL, MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL, BATTERY, TRANSMITTER.
