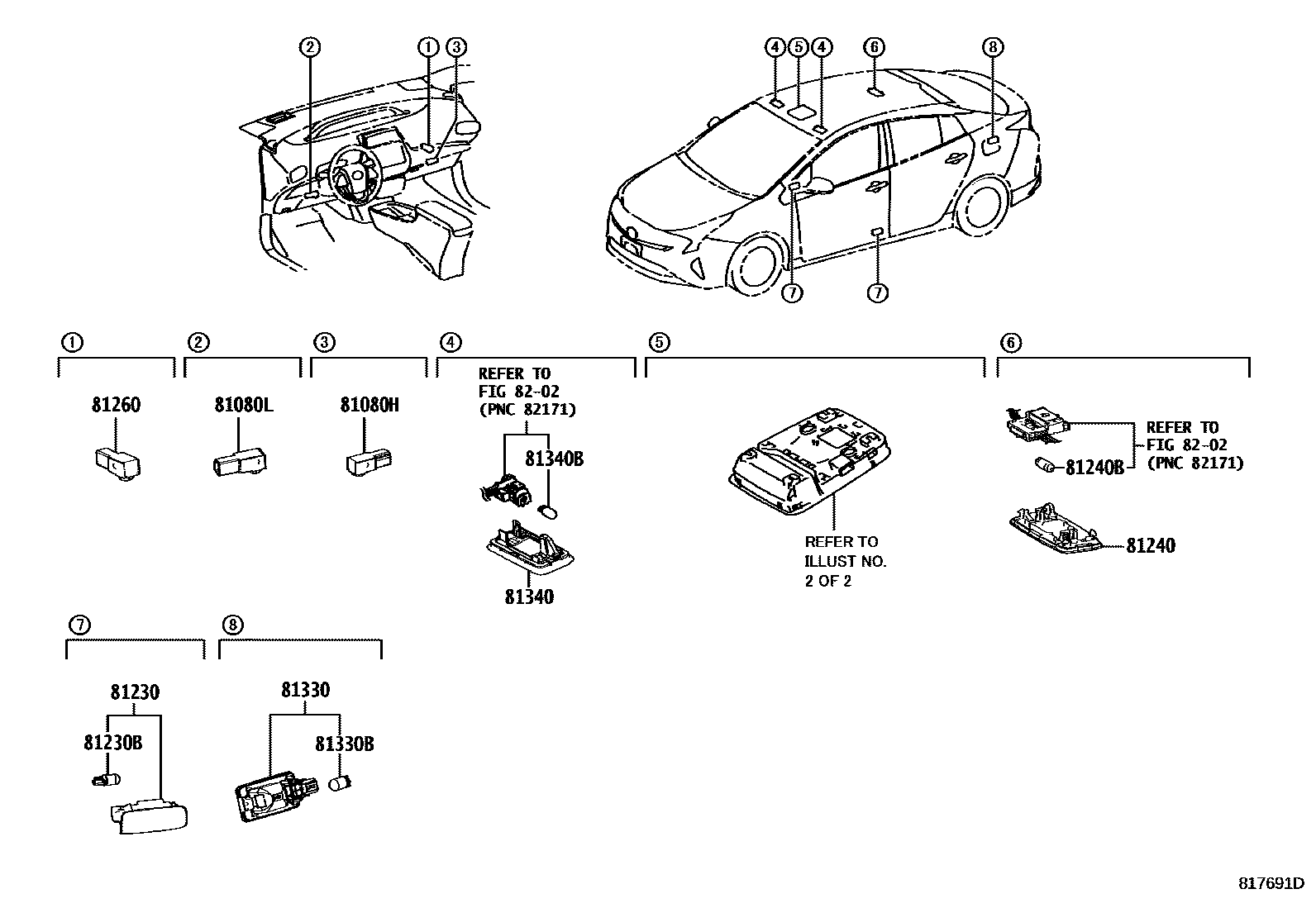

Toyota PRIUS — INTERIOR LAMP

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290i201812

WHITE

main81080-48010i201511-201707

YELLOW AMBER

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290i201707-201812

WHITE

main81080-48010i201511-201707

YELLOW AMBER

81230LAMP ASSY, COURTESY

main81230-30200×2i201511-201812

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2i201812

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-47010-B0i201812

COOL GRAY,TRIM1#,2#

main81240-47010-E0i201812

NEUTRAL BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i201812

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-33290i201812

WHITE

main81080-48010i201511-201707

YELLOW AMBER

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010i201511-201812

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050i201511-201812

12V 5W

81340LAMP ASSY, VANITY

main81340-30110×2i201511-201812

81340BBULB (FOR VANITY LAMP)

main90981-11062×2i201511-201812

12V 8W

8202WIRING & CLAMP

→ Go to FIG 82-02

12 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota PRIUS

This section contains 18 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PRIUS. Key components include: CLIP(FOR MAP LAMP), LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH, LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP).
