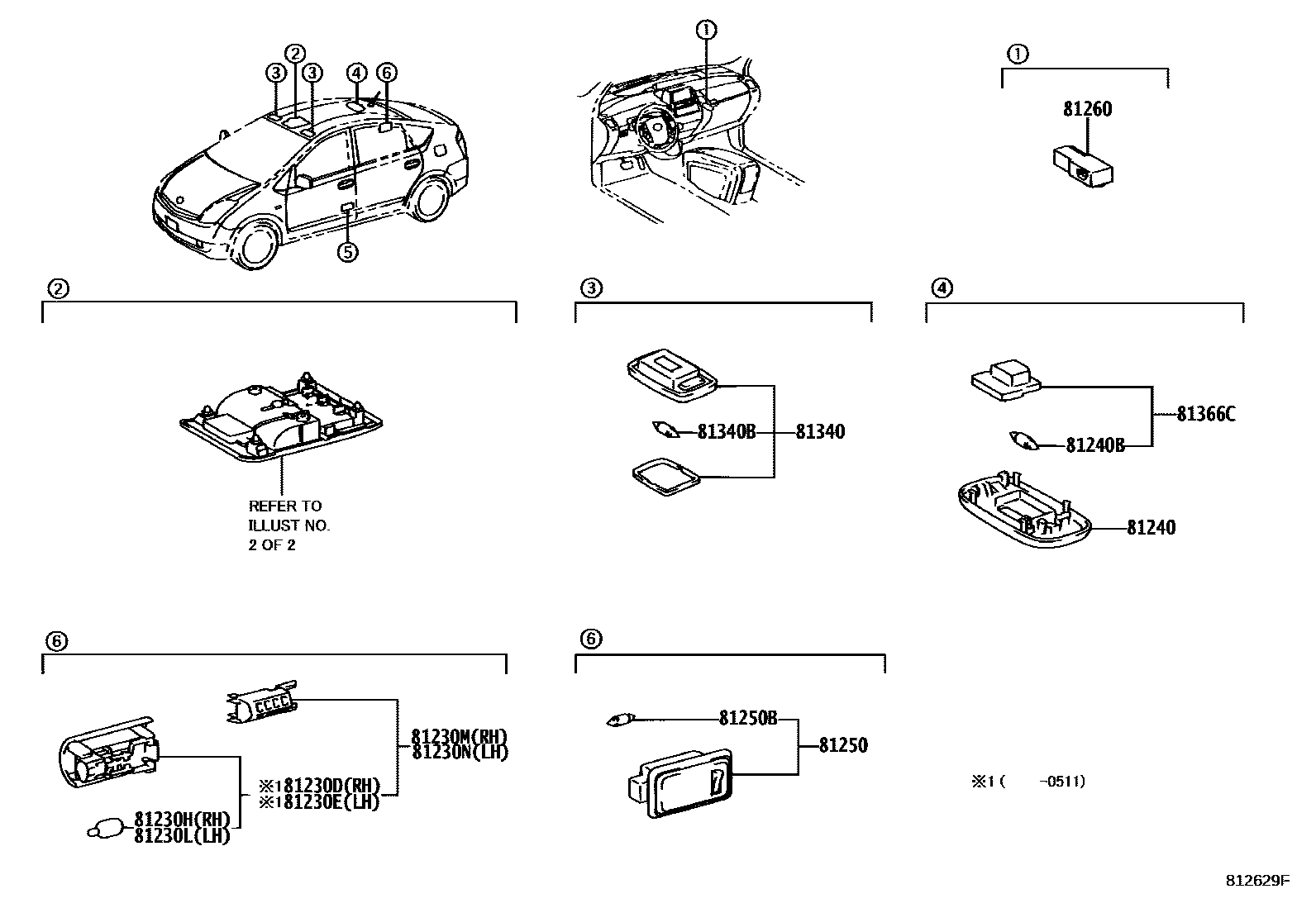

Toyota PRIUS — INTERIOR LAMP
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 5W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 5W
81230MLAMP ASSY, COURTESY, RH
sub81230-30200
81230NLAMP ASSY, COURTESY, LH
sub81230-30200
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 5W
81366CBASE, ROOM LAMP SWITCH
14 parts on this diagram · 2 diagrams in section
