Toyota PRIUS — HORN

86510HORN ASSY, HIGH PITCHED

main86510-47050i201511-201812

MARUKO

main86510-47060i201511-201812

DENSO

main86510-42060i201812

KOREA SPEC

86520HORN ASSY, LOW PITCHED

main86520-47030i201812

MARUKO

main86520-47040i201511-201812

DENSO

main86520-42100i201812

KOREA SPEC

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-12030i201908

main86570-47050i201511-201812

KOREA SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-47040i201908-202007

main86572-47120i202007

main86572-47190i202007

KOREA SPEC

86591BRACKET, HORN

main86591-47010×2i201511-201812

9011906A06

main90119-06A06

9011908C83

main90119-08C83

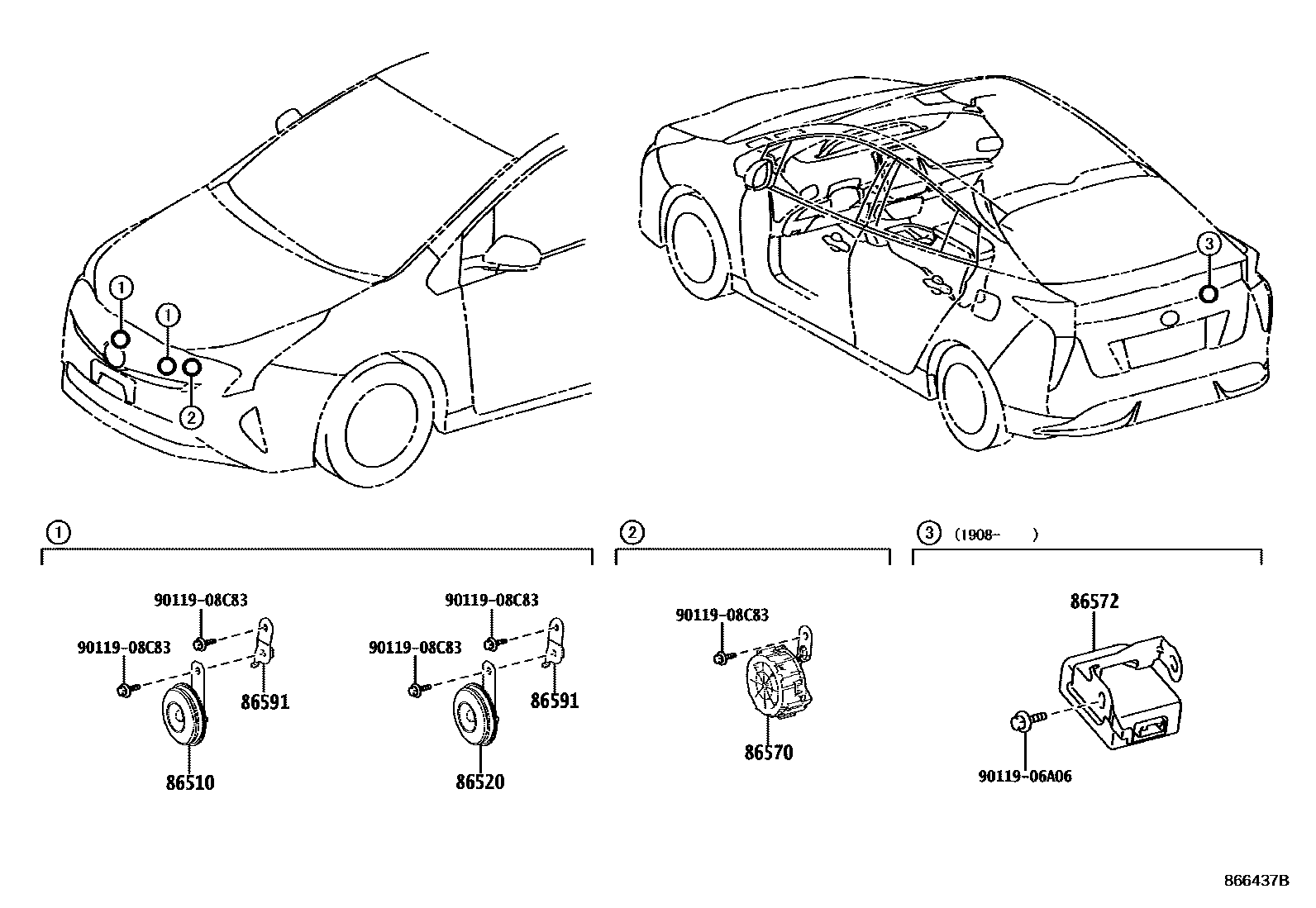

7 parts on this diagram · 1 diagram in section

HORN for Toyota PRIUS

This section contains 7 genuine Toyota parts for the HORN system of the Toyota PRIUS. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER, BRACKET, HORN.
