EPC Data

Toyota PRIUS — HORN

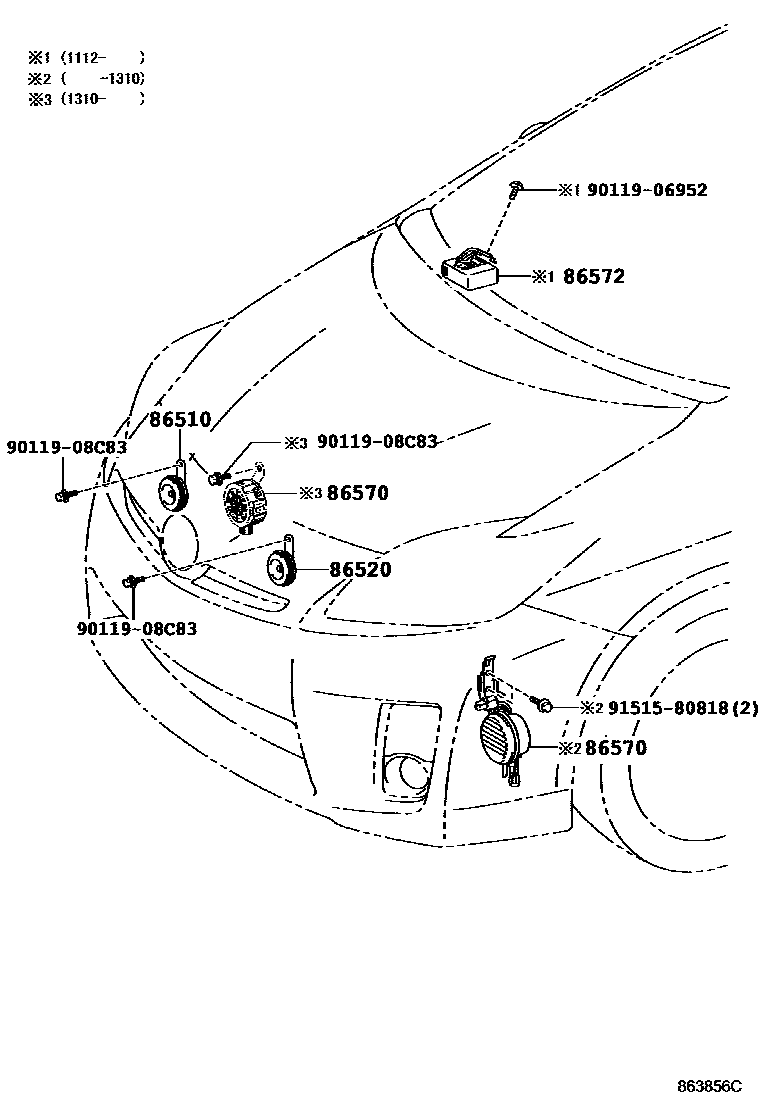

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-28130i200904-201112
main86510-28090i201112
KOREA SPEC
86520HORN ASSY, LOW PITCHED
main86520-28180i201112
main86520-28080i201112
KOREA SPEC
86570SPEAKER ASSY, VEHICLE APPROACHING
main86570-47010i201310-201404
KOREA SPEC; MEXICO SPEC
main86570-47011i201405
KOREA SPEC; MEXICO SPEC
main86570-47020i201112-201310
KOREA SPEC; MEXICO SPEC
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
main86572-47050i201112-201201
KOREA SPEC; MEXICO SPEC
main86572-47070i201201-201310
KOREA SPEC; MEXICO SPEC
main86572-47110i201310
KOREA SPEC; MEXICO SPEC
9011906952
main90119-06952
9011908C83
main90119-08C83
9151580818
main91515-80818

7 parts on this diagram · 1 diagram in section

HORN for Toyota PRIUS

This section contains 7 genuine Toyota parts for the HORN system of the Toyota PRIUS. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, CONTROLLER, VEHICLE APPROACHING SPEAKER.
