Toyota PRIUS — HEV CONTROL COMPUTER

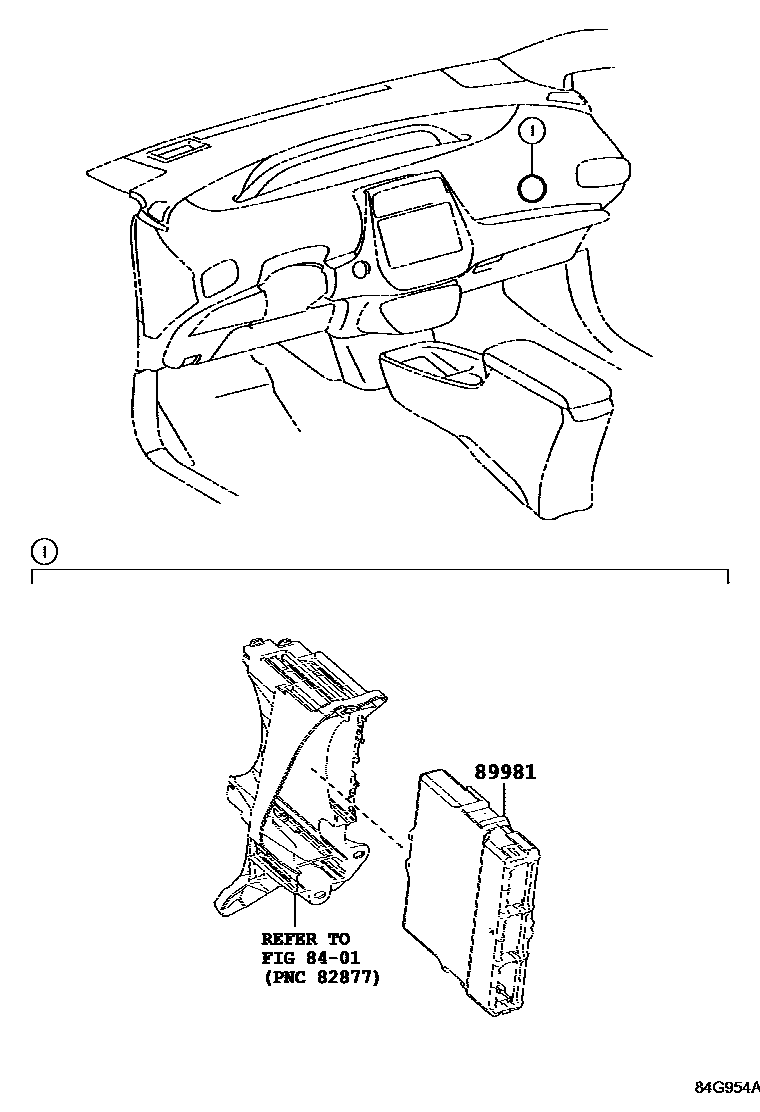

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-47550i201511-201603

main89981-47551i201603-201605

main89981-47552i201606-201611

main89981-47553i201612-201702

main89981-47554i201703-201705

main89981-47555i201706-201711

main89981-47570i201511-201603

main89981-47571i201603-201605

main89981-47572i201606-201611

main89981-47573i201612-201702

main89981-47574i201703-201705

main89981-47575i201706-201711

main89981-47B00i201711-201803

main89981-47B01i201804-201812

main89981-47B10i201711-201803

main89981-47B11i201804-201812

main89981-47C80i201812-201903

main89981-47C81i201904-201908

main89981-47C90i201812-201908

main89981-47J20i201908-202007

main89981-47J30i201908-202007

main89981-47L10i202007-202106

main89981-47L20i202007-202106

main89981-47V00i202106-202107

main89981-47V01i202108

main89981-47V10i202106-202107

main89981-47V11i202108

2 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota PRIUS

This section contains 2 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota PRIUS. Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, HYBRID VEHICLE CONTROL.
