Toyota PRIUS — HEATING & AIR CONDITIONING - COMPRESSOR

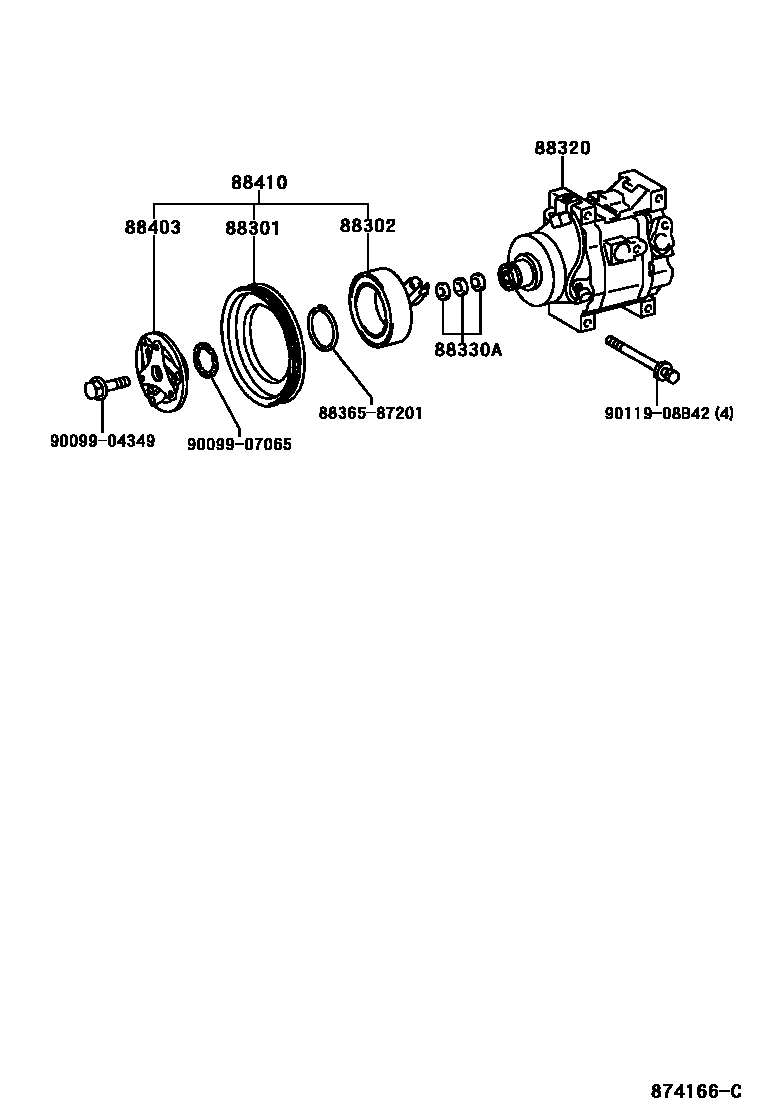

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-47030i200008-200208

main88412-47040i200208

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16070i200008-200208

main88411-1A050i200208

88320COMPRESSOR ASSY, COOLER

main88320-47030i200005-200208

main88320-47040i200208

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200005

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16020i200008-200208

main88403-1A020i200208

88410CLUTCH ASSY, MAGNET

main88410-47030i200005-200208

main88410-47040i200208

8836587201RING, SNAP

main88365-87201

9009904349

main90099-04349

9009907065

main90099-07065

9011908B42

main90119-08B42

10 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota PRIUS

This section contains 10 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota PRIUS. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
