Toyota PRIUS — FUEL INJECTION SYSTEM

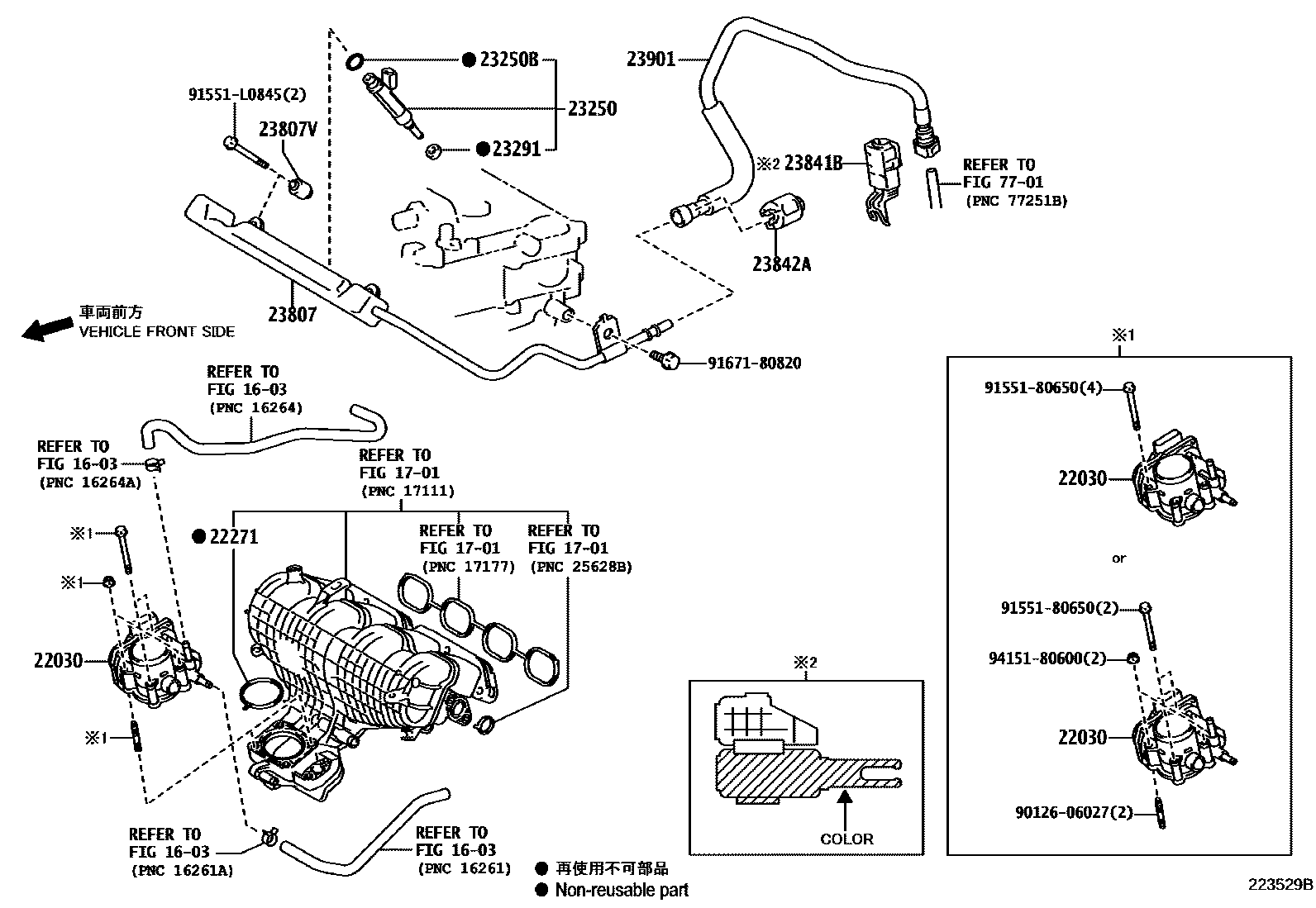

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i200904-201112

22271GASKET, THROTTLE BODY

main22271-37010i200904-201112

23250INJECTOR ASSY, FUEL

main23209-39195×4i200904-201108

main23209-39196×4i201109-201112

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i200904-201112

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i200904-201112

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37060i200904-201108

main23814-37061i201108-201112

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i200904-201112

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i200904-201112

main23841-37090i201208-201511

COLOR : BLACK

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i200904-201112

23901TUBE SUB-ASSY, FUEL

main23901-37100i200904-201112

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section

FUEL INJECTION SYSTEM for Toyota PRIUS

This section contains 18 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota PRIUS. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR, GASKET, THROTTLE BODY, INJECTOR ASSY, FUEL.
