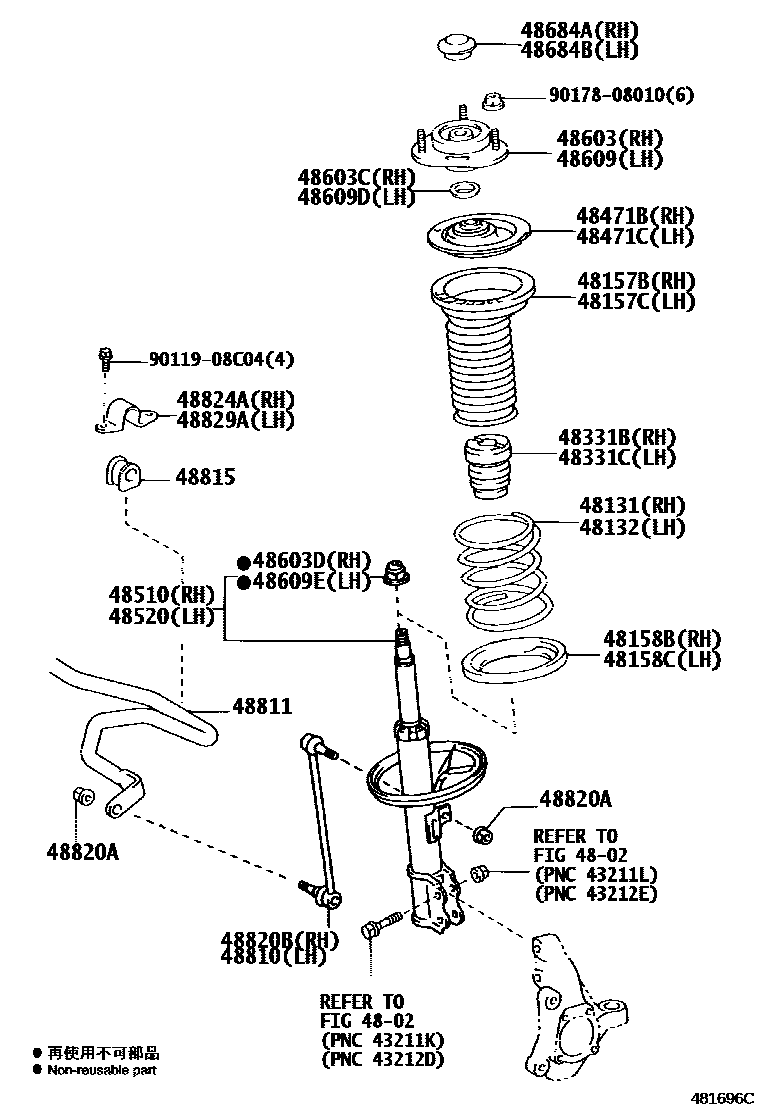

Toyota PRIUS — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-1N550iNHW20200308-200511

main48131-47210iNHW20200807-200903

48132SPRING, FRONT COIL, LH

main48131-1N550iNHW20200308-200511

main48131-47210iNHW20200807-200903

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12080iNHW20200308-200511

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12080iNHW20200308-200511

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47010iNHW20200308-200511

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47010iNHW20200308-200511

48331BBUMPER, FRONT SPRING, RH

main48331-12200iNHW20200308-200511

48331CBUMPER, FRONT SPRING, LH

main48331-12200iNHW20200308-200511

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-12100iNHW20200308-200511

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-12100iNHW20200308-200511

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-49505iNHW20200308-200503

MARK 48510-47050

main48510-80274iNHW20200503-200511

MARK 48510-47041

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-49585iNHW20200308-200503

MARK 48520-47050

main48520-80064iNHW20200503-200511

MARK 48520-47041

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-13010iNHW20200308-200511

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iNHW20200308-200511

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iNHW20200308-200511

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-13010iNHW20200308-200511

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iNHW20200308-200511

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iNHW20200308-200511

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iNHW20200308-200511

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iNHW20200308-200511

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47010iNHW20200308-200511

48811BAR, STABILIZER, FRONT

main48811-47040iNHW20200308-200511

OD=21

main48811-47050iNHW20..USA200608-200903

TIRE & DISC WHEEL-195/55R16 6JJ ALUMINUM,OD=22

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12340×2iNHW20200308-200511

MARK 21

main48815-13040×2iNHW20..USA200608-200903

TIRE & DISC WHEEL-195/55R16 6JJ ALUMINUM,MARK 22

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iNHW20200308-200511

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47010iNHW20200308-200511

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26210iNHW20200308-200511

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26210iNHW20200308-200511

9011908C04

main90119-08C04

9017808010

main90178-08010

30 parts on this diagram · 1 diagram in section
