Toyota PRIUS — FOG LAMP

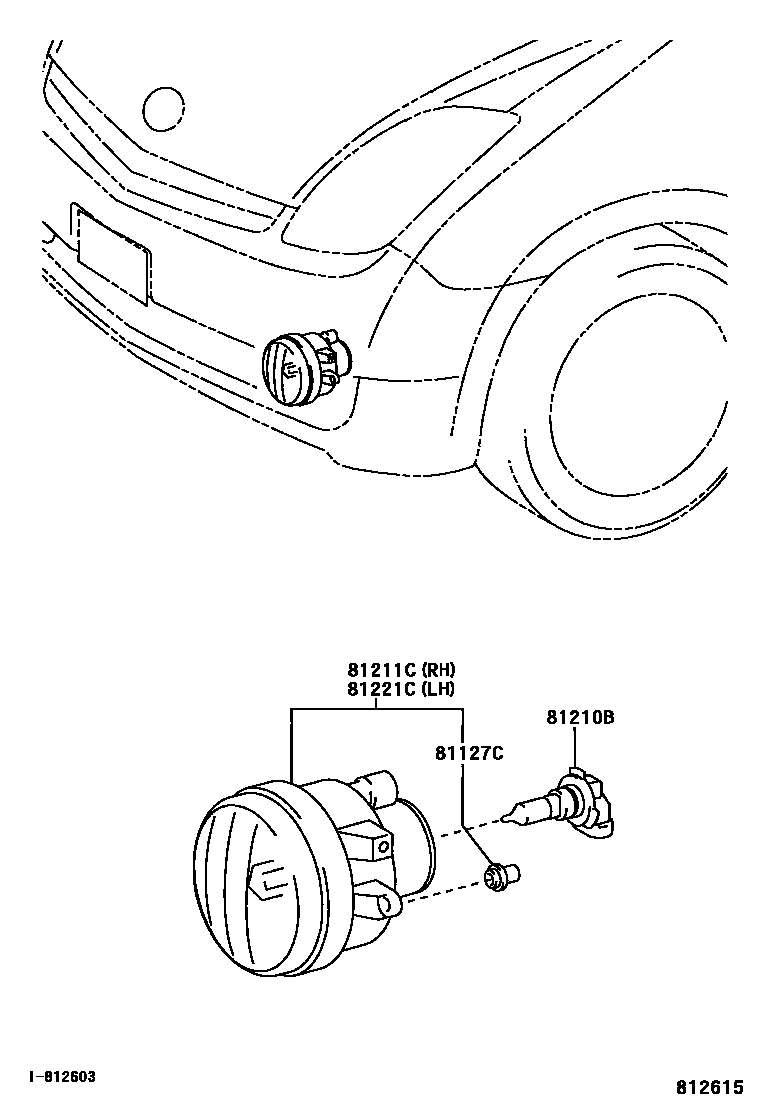

Parts diagram
81127CBEARING FOG LAMP
main90075-10811×2i200308-200511
W(VSC)
81210BBULB, FOG LAMP
main90080-81040×2i200308-200511
12V 51W,W(VSC)
main90981-13047×2i200511-200903
12V 51W,HALOGEN,FRONT FOG LAMP-WITH; 12V 51W,HALOGEN,HEADLAMP-DISCHARGE(2 LIGHTS)
81211CLAMP UNIT, FOG LAMP, RH
main81211-52070i200308-200511
W(VSC)
81221CLAMP UNIT, FOG LAMP, LH
main81221-52070i200308-200511
W(VSC)

4 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota PRIUS

This section contains 4 genuine Toyota parts for the FOG LAMP system of the Toyota PRIUS. Key components include: BEARING FOG LAMP, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, LAMP UNIT, FOG LAMP, LH.
