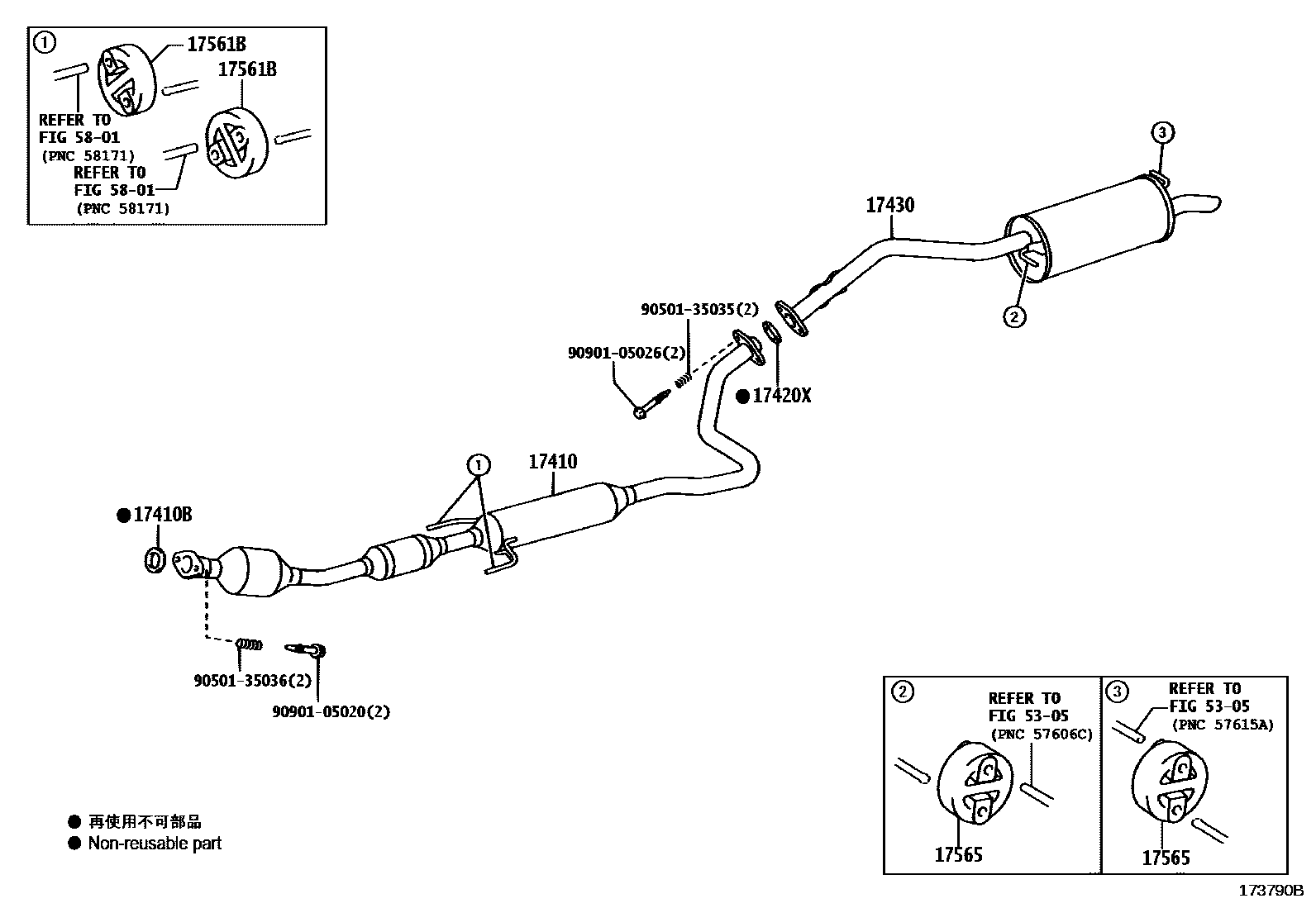

Toyota PRIUS — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21500i1NZFXE..NHW20200308-200903

*114=TOYOTA/GD3EA6/Y

17410BGASKET, EXHAUST PIPE

main17451-21060i1NZFXE..NHW20200308-200903

17420XGASKET, EXHAUST PIPE, CENTER

main17451-23010i1NZFXE..NHW20200308-200903

17430PIPE ASSY, EXHAUST, TAIL

main17430-21580i1NZFXE..NHW20200308-200903

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030i1NZFXE..NHW20200308-200903

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i1NZFXE..NHW20200308-200903

5305

5801

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
