Toyota PRIUS — ELECTRONIC FUEL INJECTION SYSTEM

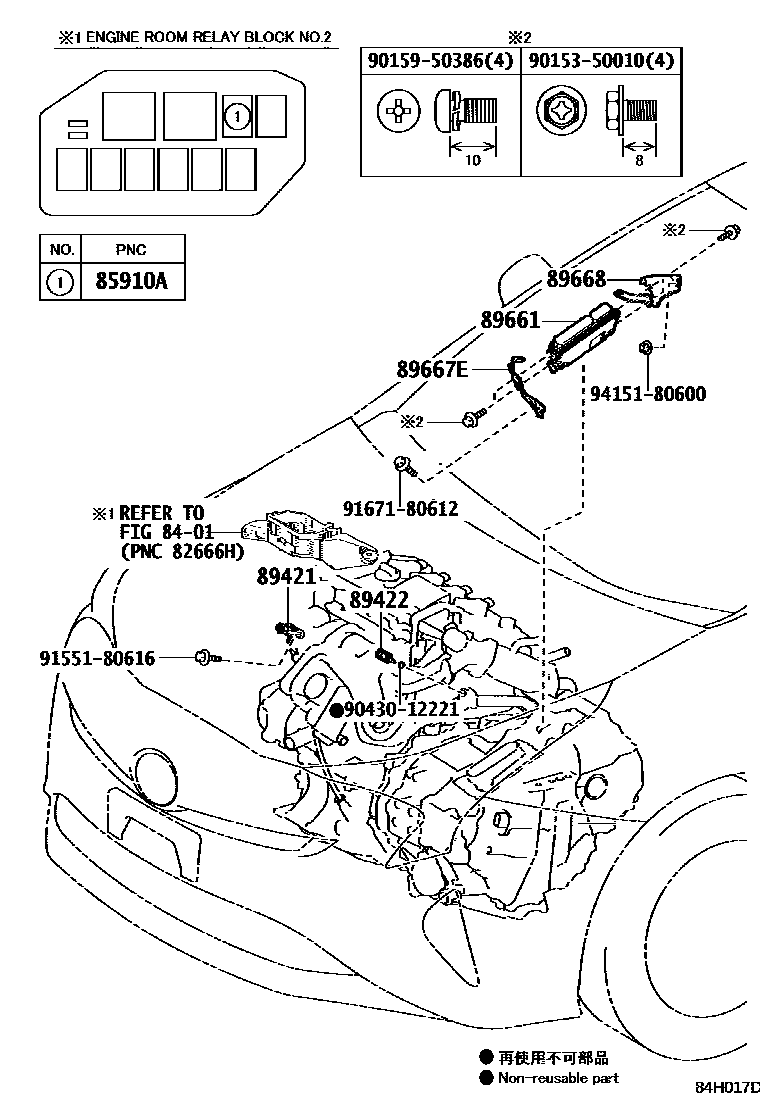

Parts diagram
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
main90987-02027i201511-201812
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-26030i201511-201812
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
main89422-33030i201511-201812
89661COMPUTER, ENGINE CONTROL
main89661-47650i201511-201606
MEXICO SPEC
main89661-47651i201607-201608
MEXICO SPEC
main89661-47652i201609-201802
MEXICO SPEC
main89661-47653i201803-201812
DENSO; DENSO,MEXICO SPEC
main89661-47A00i201812-201908
DENSO
main89661-47A10i201812-201908
DENSO
main89661-47C30i201908-202007
DENSO
main89661-47C40i201908-202007
DENSO
main89661-47C70i202007
DENSO
main89661-47C80i202007
DENSO
main89661-47720supersedes 89661-47641i201511-201608
MEXICO SPEC
main89661-47721supersedes 89661-47643i201609-201801
MEXICO SPEC
main89661-47722supersedes 89661-47643i201802-201812
DENSO,MEXICO SPEC
main89661-47B10i201812-202007
DENSO,MEXICO SPEC
main89661-47D60i202007
DENSO,MEXICO SPEC
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-47100i201511-201812
MEXICO SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-47050i201812
9015350010
main90153-50010
9015950386
main90159-50386
9043012221
main90430-12221
9155180616
main91551-80616
9167180612
main91671-80612
9415180600
main94151-80600

13 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PRIUS

This section contains 13 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PRIUS. Key components include: SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL.
