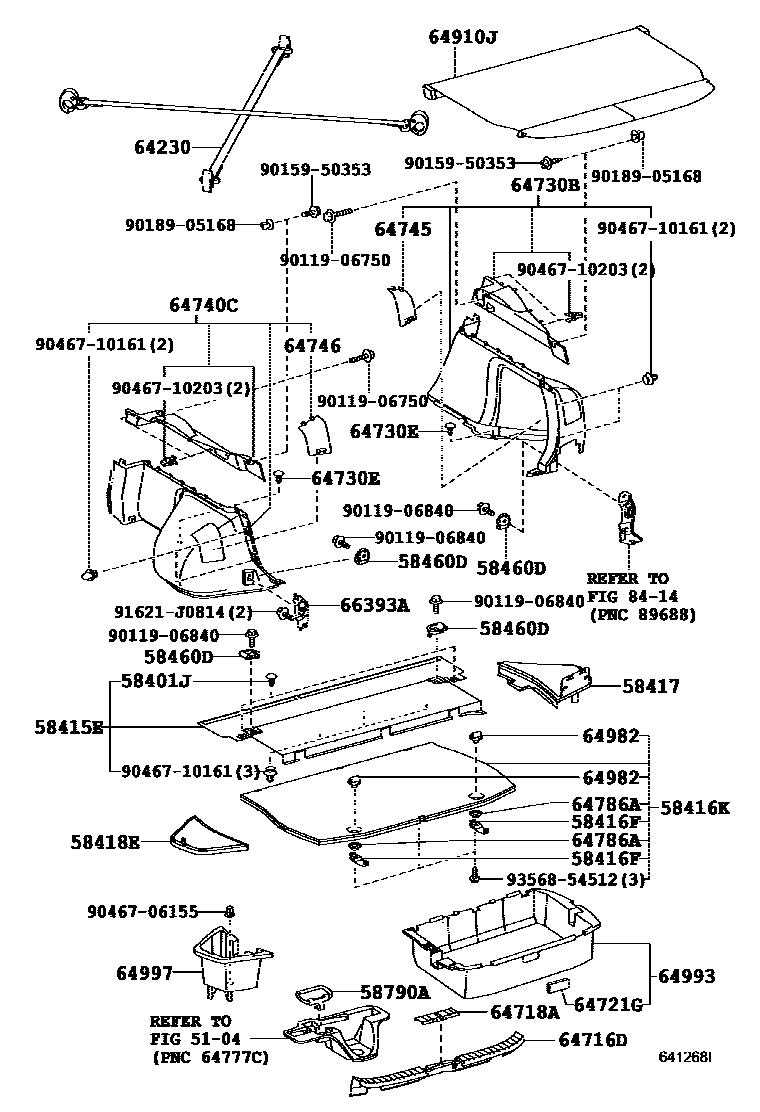

Toyota PRIUS — DECK BOARD & DECK TRIM COVER
5104
58401JCLIP(FOR DECK BOAD)
58415EBOARD, REAR FLOOR, NO.1
58416FBRACKET, DECK BOARD, NO.1
58416KBOARD, REAR FLOOR, NO.2
58417BOARD, REAR FLOOR, NO.3
IVORY,TRIM0#
MD.GRAY,TRIM1#
GREGE,TRIM4#
58418EBOARD, REAR FLOOR, NO.4
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58790ACARRIER ASSY, JACK
64230NET ASSY, ROOM PARTITION
64716DCOVER, DECK TRIM, REAR
64718ACOVER, DECK TRIM SERVICE HOLE
64721GCOVER, DECK TRIM, NO.1
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64746COVER, REAR COMBINATION LAMP SERVICE, LH
64786APLATE, JACK COVER
64910JCOVER ASSY, TONNEAU
64982KNOB, COVER
64993BOX, DECK FLOOR, REAR
64997BOX, DECK FLOOR, LH
66393ABRACKET, ROPE HOOK, NO.1 LH
8414
9011906750
main90119-06750
9011906840
main90119-06840
9015950353
main90159-50353
9018905168
main90189-05168
9046706155
main90467-06155
9046710161
main90467-10161
9046710203
main90467-10203
91621J0814
main91621-J0814
9356854512
main93568-54512
34 parts on this diagram · 1 diagram in section
