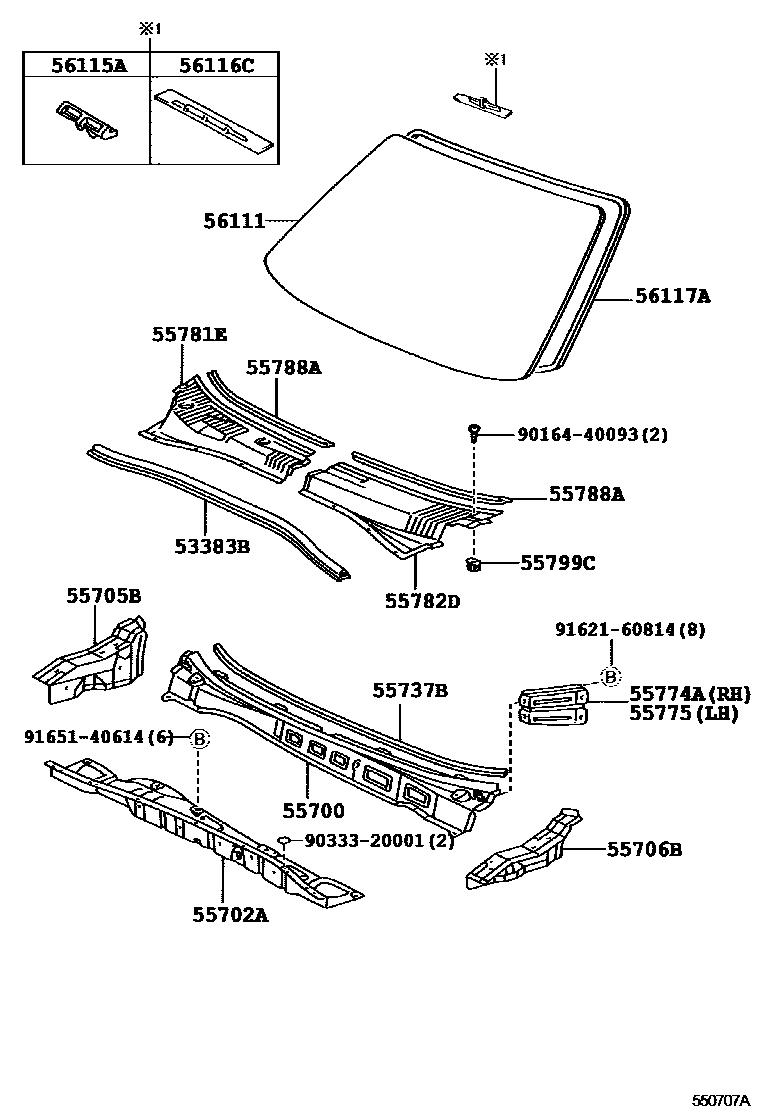

Toyota PRIUS — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700PANEL ASSY, FRONT
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55782DLOUVER, COWL TOP VENTILATOR, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
RH
LH
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
9016440093
main90164-40093
9033320001
main90333-20001
9162160814
main91621-60814
9165140614
main91651-40614
20 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota PRIUS
This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota PRIUS. Key components include: SEAL, HOOD TO COWL TOP, PANEL ASSY, FRONT, PANEL SUB-ASSY, COWL TOP, OUTER FRONT, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
