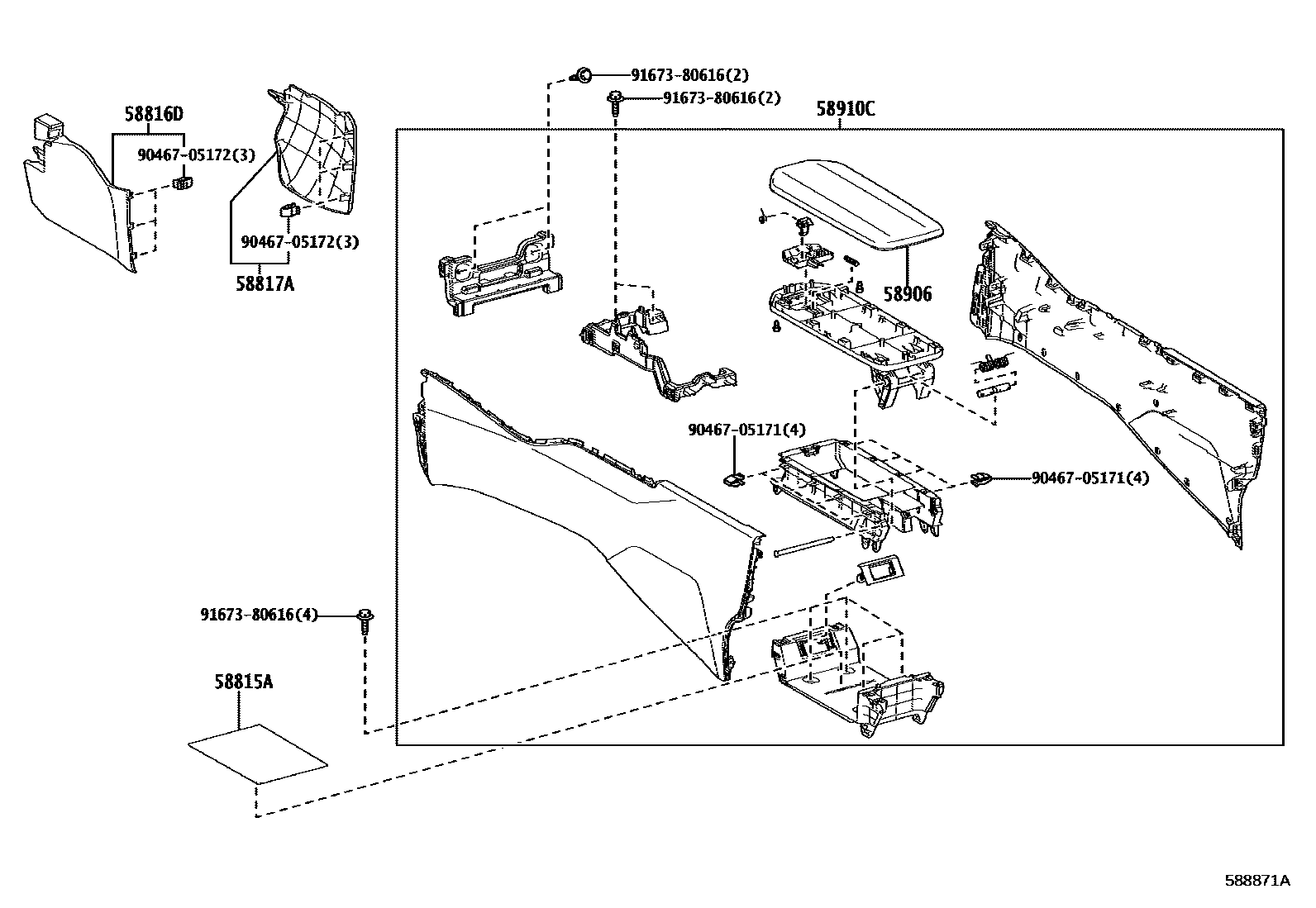

Toyota PRIUS — CONSOLE BOX & BRACKET

0001 1 0002 1

58815ACARPET, CONSOLE BOX

main58815-47100iMXWH6#202212

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-47080-C0iMXWH6#202212

BLACK,TRIM1#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-47080-C0iMXWH6#202212

BLACK,TRIM1#,2#

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-47190-C0iMXWH61202303

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-47240-C1iMXWH60,65202212

BLACK,TRIM1#,2#

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

8 parts on this diagram · 2 diagrams in section
