Toyota PRIUS — CLEARANCE & BACK SONAR

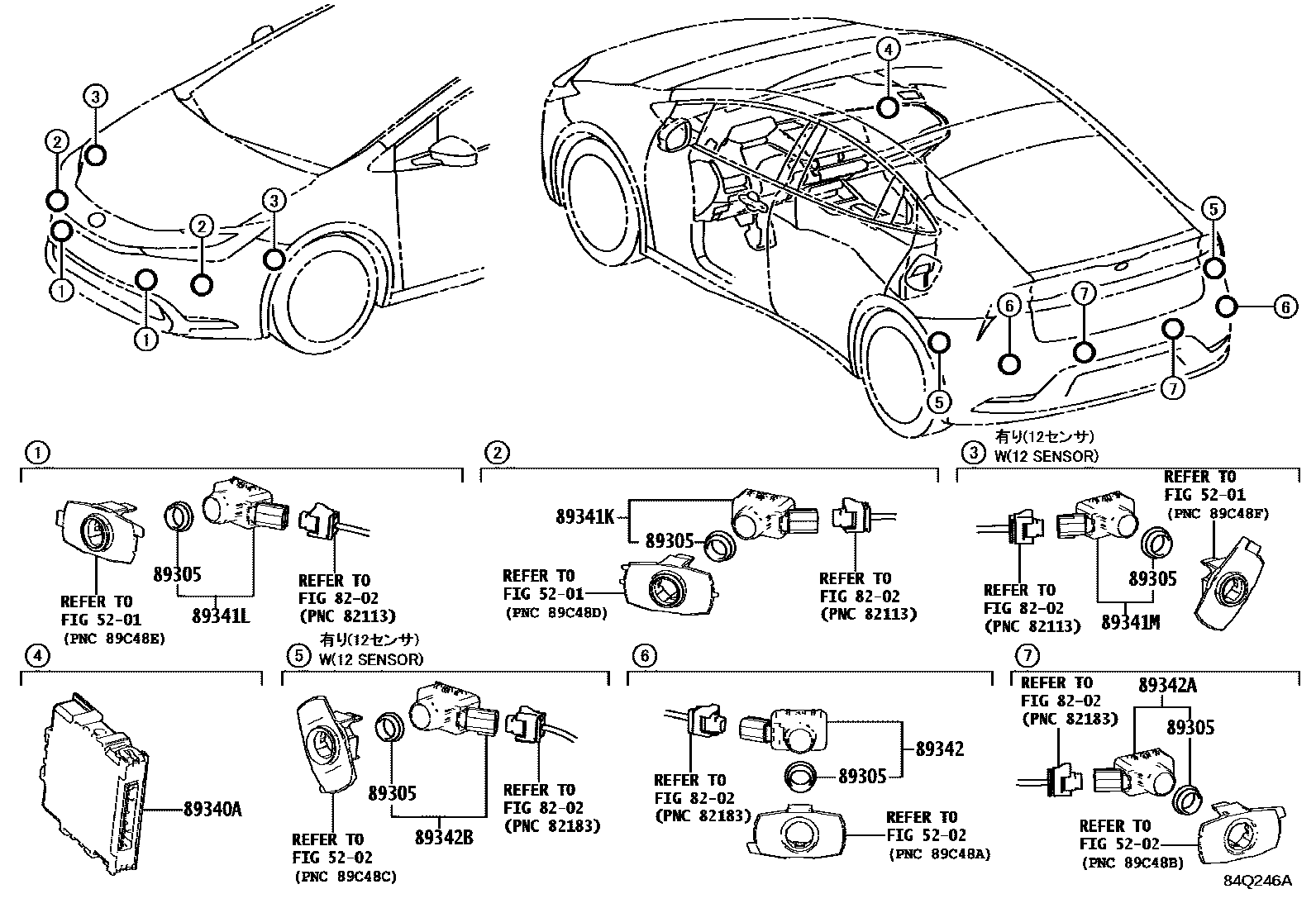

Parts diagram
5201FRONT BUMPER & BUMPER STAY
→ Go to FIG 52-01
5202REAR BUMPER & BUMPER STAY
→ Go to FIG 52-02
8202WIRING & CLAMP
→ Go to FIG 82-02
89305CUSHION SET, ULTRASONIC SENSOR
main89305-52010i202212
89340ACOMPUTER ASSY, CLEARANCE WARNING
main89340-47160i202212
*614
main89340-47100i202212-202507
PARKING SUPPORT ALT/BRK-WITH(8SENSOR),*614
main89340-47170i202212-202507
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-K0060-10×2i202212
ASH,1M2
main89341-K0060-A4×2i202212
PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-K0060-10×2i202212
ASH,1M2
main89341-K0060-A4×2i202212
PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4
89341MSENSOR, ULTRASONIC, FRONT SIDE
main89341-K0070-A7×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,PLATINUM WHITE PEARLMC.,089
main89341-K0070-B3×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,SILVER ME.,1L0
main89341-K0070-C5×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,ATTITUDE BLACK MC.,218
main89341-K0070-D4×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,EMOTIONAL RED 2,3U5
main89341-K0070-F1×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,MUSTARD,5C5
main89341-K0070-J9×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,DK.BLUE,8Q4
main89341-K0070-P6×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,ASH,1M2
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-K0060-10×2i202212
ASH,1M2
main89341-K0060-A4×2i202212
PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-K0060-10×2i202212
ASH,1M2
main89341-K0060-A4×2i202212
PLATINUM WHITE PEARL MC.,089
main89341-K0060-B5×2i202212
SILVER ME.,1L0
main89341-K0060-C5×2i202212
ATTITUDE BLACK MC.,218
main89341-K0060-D4×2i202212
EMOTIONAL RED 2,3U5
main89341-K0060-F1×2i202212
MUSTARD,5C5
main89341-K0060-R3×2i202212
DK.BLUE,8Q4
89342BSENSOR, ULTRASONIC, REAR SIDE
main89341-K0070-A7×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,PLATINUM WHITE PEARLMC.,089
main89341-K0070-B3×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,SILVER ME.,1L0
main89341-K0070-C5×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,ATTITUDE BLACK MC.,218
main89341-K0070-D4×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,EMOTIONAL RED 2,3U5
main89341-K0070-F1×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,MUSTARD,5C5
main89341-K0070-J9×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,DK.BLUE,8Q4
main89341-K0070-P6×2i202212
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH,ASH,1M2

11 parts on this diagram · 1 diagram in section

CLEARANCE & BACK SONAR for Toyota PRIUS

This section contains 11 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota PRIUS. Key components include: FRONT BUMPER & BUMPER STAY, REAR BUMPER & BUMPER STAY, WIRING & CLAMP, CUSHION SET, ULTRASONIC SENSOR, COMPUTER ASSY, CLEARANCE WARNING.
