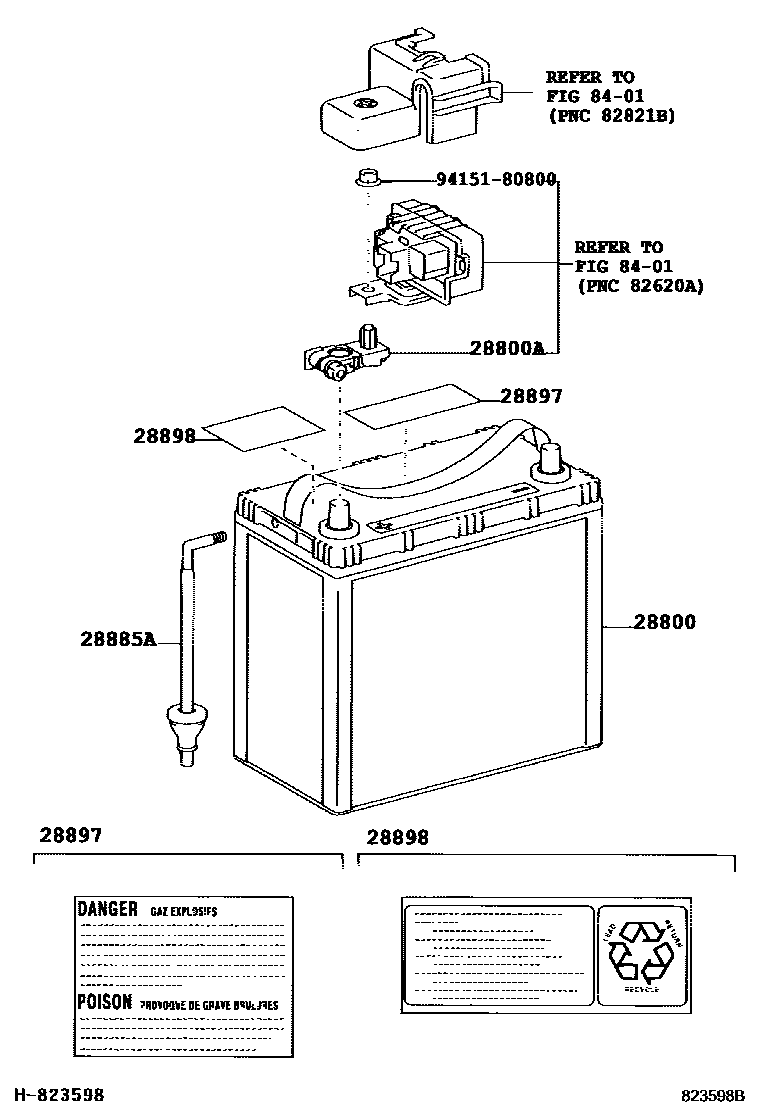

Toyota PRIUS — BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21180i1NZFXE..NHW20200308-200903

S34B20R

sub28800-21181

28800ATERMINAL, BATTERY POSITIVE

main90982-05060i1NZFXE..NHW20200308-200903

28885HOSE, BATTERY ROOM VENTILATION

main28885-21030i1NZFXE..NHW20200308-200903

28885AHOSE, BATTERY ROOM VENTILATION

main28885-21010i1NZFXE..NHW20200308-200903

28897PLATE, BATTERY CAUTION

main28897-38010i1NZFXE..NHW20..CND200308-200903

28898PLATE, BATTERY

main28898-26010i1NZFXE..NHW20..USA200308-200903

8401

9415180800

main94151-80800

8 parts on this diagram · 4 diagrams in section
