Toyota PRIUS — BACK DOOR LOCK & HANDLE

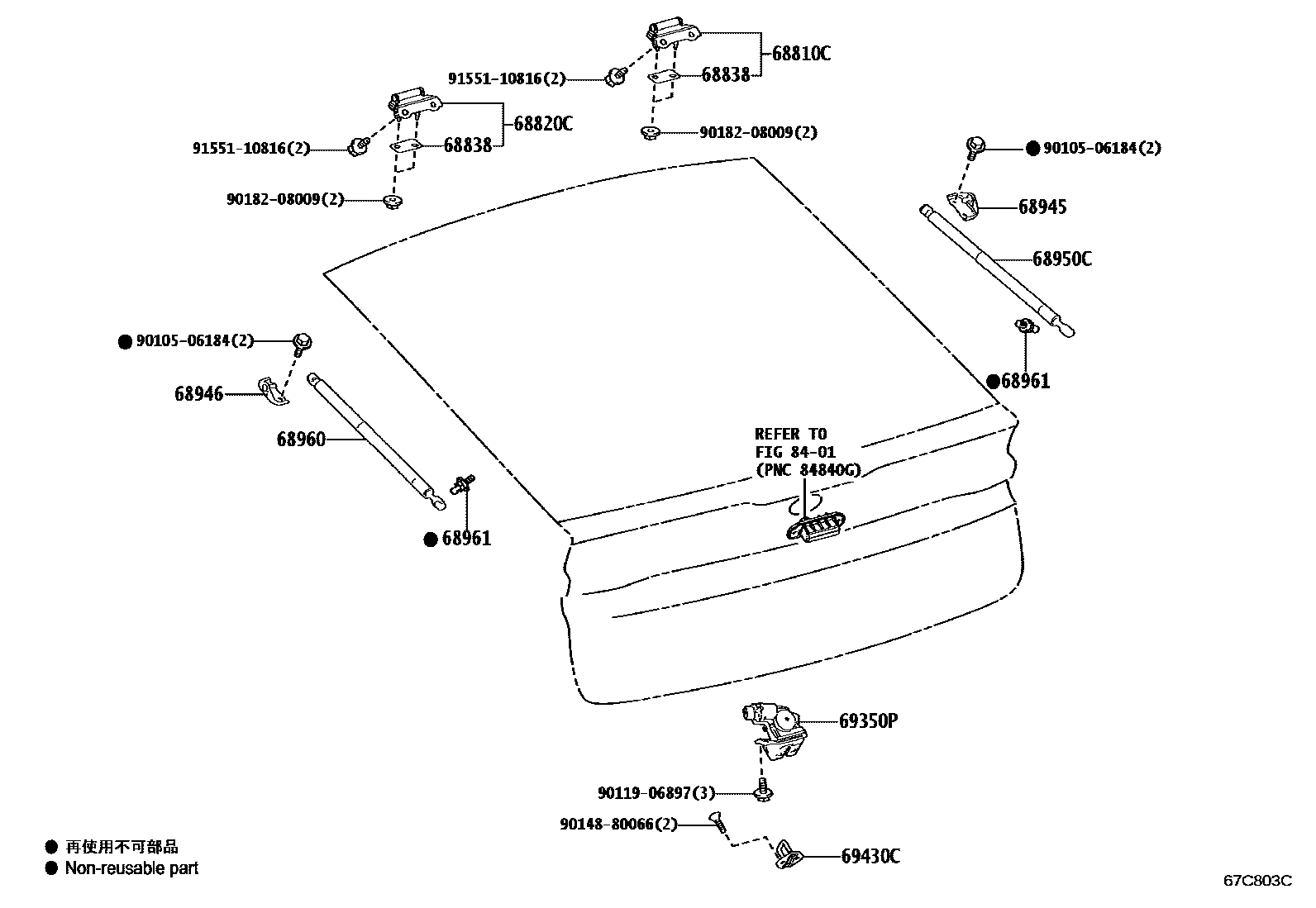

Parts diagram

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220i202212

68820CHINGE ASSY, BACK DOOR, LH

main68810-48220i202212

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140×2i202212

T=1.0

main68838-48150×2i202212

T=1.5

main68838-48160×2i202212

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47040i202212

main68945-47050i202212

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-47030i202212

main68946-47040i202212

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WN10i202212

68960STAY ASSY, BACK DOOR, LH

main68960-0WM70i202212

68961BOLT, BACK DOOR STAY

main68961-47010×2i202212

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42090i202212

main69350-48100i202212

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030i202212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9018208009

main90182-08009

9155110816

main91551-10816

16 parts on this diagram · 2 diagrams in section

BACK DOOR LOCK & HANDLE for Toyota PRIUS

This section contains 26 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1, UNIT ASSY, POWER BACK DOOR, RH, UNIT ASSY, POWER BACK DOOR, LH.
