Toyota PRIUS — BACK DOOR LOCK & HANDLE

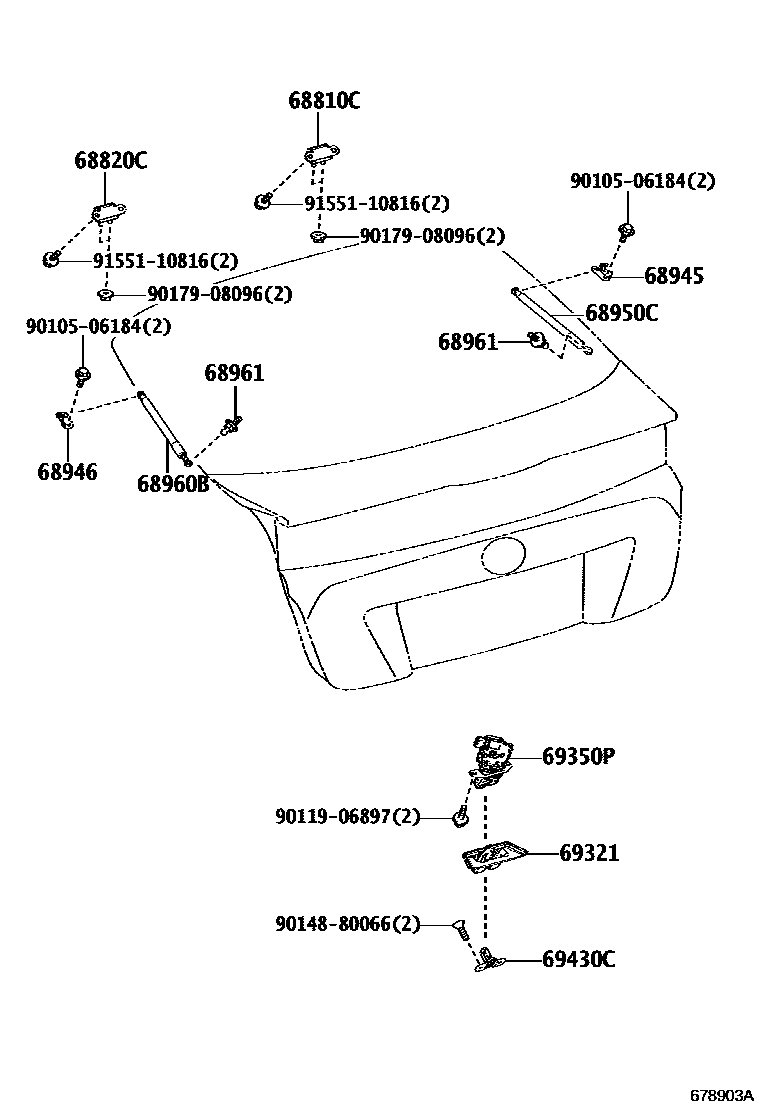

Parts diagram
68810CHINGE ASSY, BACK DOOR, RH
main68810-47060i201511-201605
PAD T=1.0
main68810-47061i201606-201812
PAD T=1.0
main68810-47070i201511-201605
PAD T=1.5
main68810-47071i201812
PAD T=1.5
main68810-47080i201511-201605
PAD T=2.0
main68810-47081i201606-201812
PAD T=2.0
68820CHINGE ASSY, BACK DOOR, LH
main68810-47060i201511-201605
PAD T=1.0
main68810-47061i201812
PAD T=1.0
main68810-47070i201511-201605
PAD T=1.5
main68810-47071i201812
PAD T=1.5
main68810-47080i201511-201605
PAD T=2.0
main68810-47081i201606-201812
PAD T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-52110i201511-201812
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68945-52110i201511-201812
68950CSTAY ASSY, BACK DOOR, RH
main68950-0W860i201511-201707
main68950-0W861i201708-201812
main68950-0W880i201511-201707
main68950-0W881i201708-201812
ENTRY GRADE PACKAGE(REAR WIPER LESS)
main68950-0WA80i201812
main68950-0WF60i201812
68960BSTAY ASSY, BACK DOOR, LH
main68960-0W860i201511-201707
main68960-0W861i201708-201812
main68960-0W880i201511-201707
main68960-0W881i201708-201812
ENTRY GRADE PACKAGE(REAR WIPER LESS)
main68960-0WA80i201812
main68960-0WF60i201812
68961BOLT, BACK DOOR STAY
main68961-47010×2i201511-201812
69321COVER, BACK DOOR LOCK
main69321-47010i201511-201812
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-47050i201511-201812
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-52050i201511-201812
9010506184
main90105-06184
9011906897
main90119-06897
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816

15 parts on this diagram · 1 diagram in section

BACK DOOR LOCK & HANDLE for Toyota PRIUS

This section contains 15 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota PRIUS. Key components include: HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
