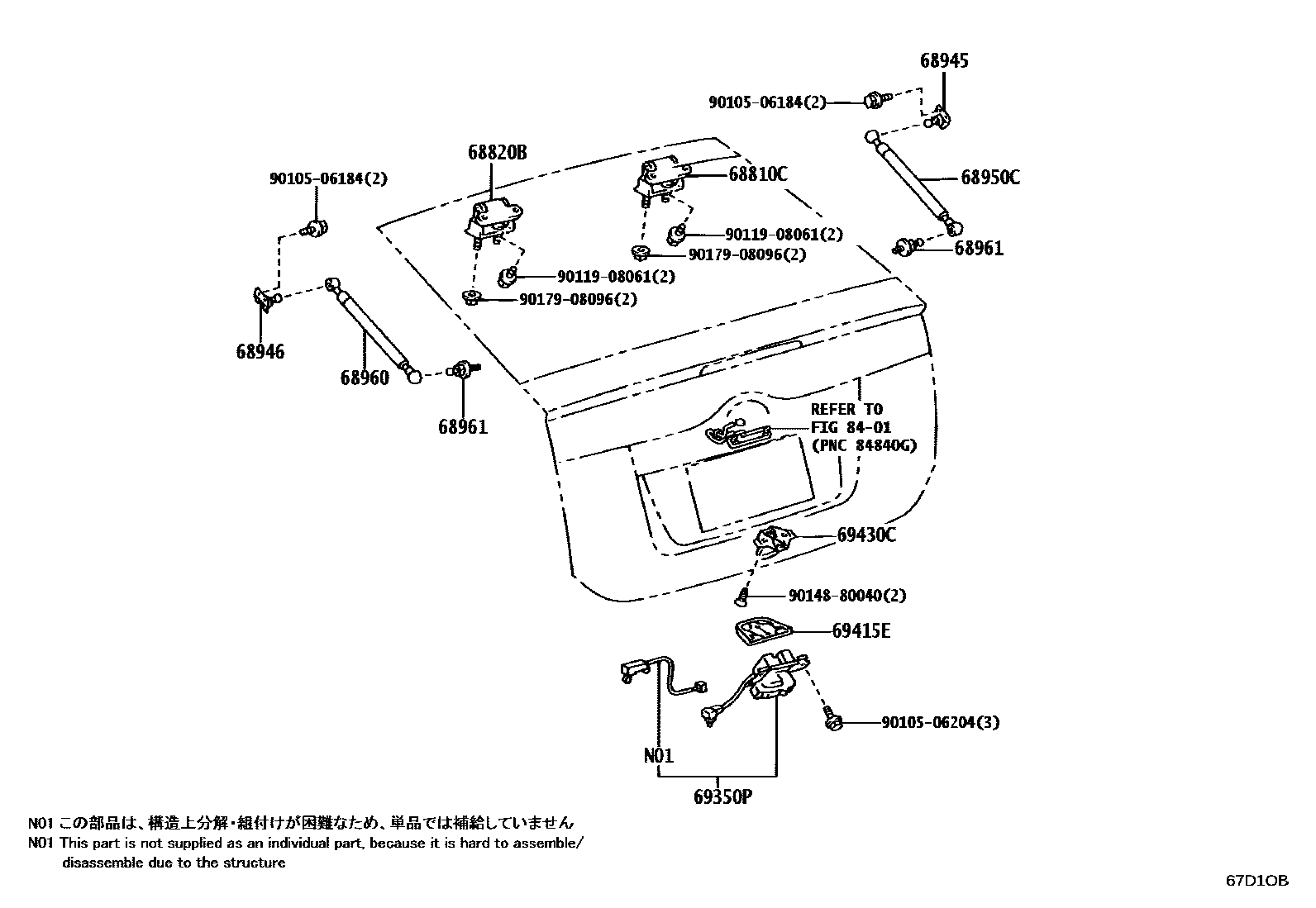

Toyota PRIUS — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iNHW20200308-200903

sub68810-47011

68820BHINGE ASSY, BACK DOOR, LH

main68810-47010iNHW20200308-200903

sub68810-47011

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12030iNHW20200308-200903

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-12030iNHW20200308-200903

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W202iNHW20200408-200504

sub68950-0W203

main68950-0W203iNHW20200505-200706

sub68950-0W204

main68950-0W204iNHW20200707-200903

main68950-0W210iNHW20200308-200401

sub68950-0W211

main68950-0W211iNHW20200401-200408

sub68950-0W202

68960STAY ASSY, BACK DOOR, LH

main68960-0W192iNHW20200408-200504

sub68960-0W193

main68960-0W193iNHW20200505-200706

sub68960-0W194

main68960-0W194iNHW20200707-200903

main68960-0W200iNHW20200308-200401

sub68960-0W201

main68960-0W201iNHW20200401-200408

sub68960-0W370

68961BOLT, BACK DOOR STAY

main68961-20140iNHW20200308-200903

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47010iNHW20200308-200903

sub69350-47011

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47010iNHW20200308-200903

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010iNHW20200308-200903

8401

9010506184

main90105-06184

9010506204

main90105-06204

9011908061

main90119-08061

9014880040

main90148-80040

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
