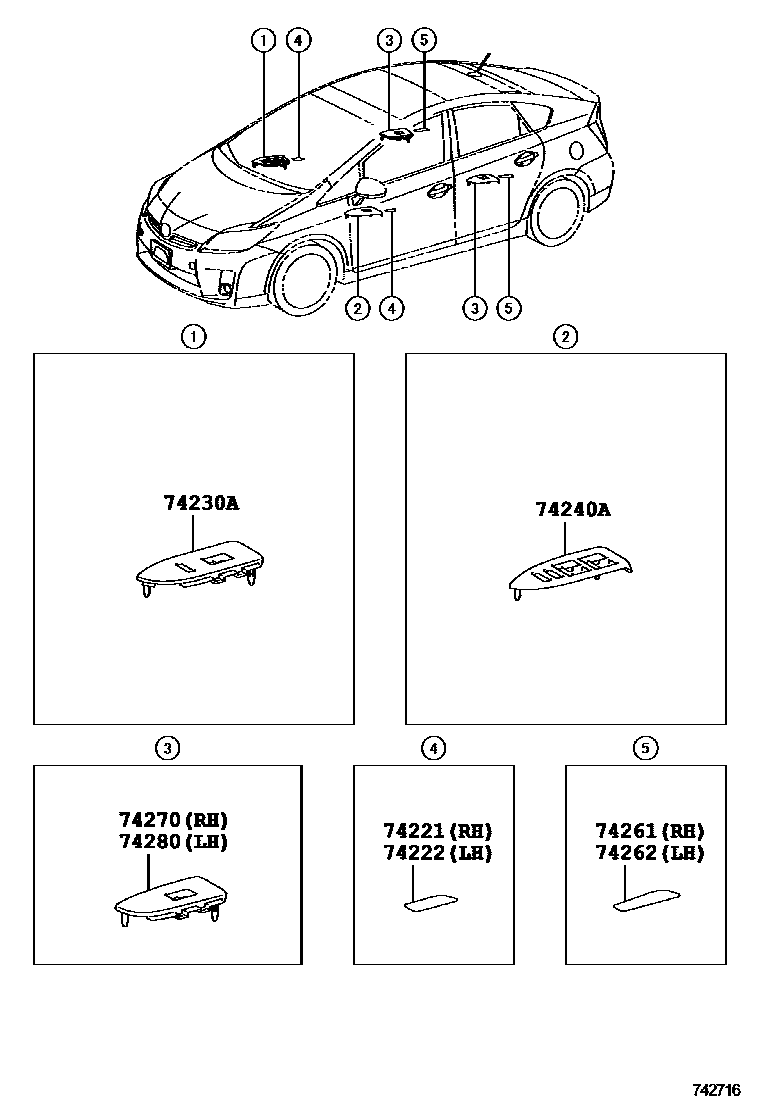

Toyota PRIUS — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74221COVER, DOOR ARMREST, RH

main74221-47020iZVW30201112-201511

74222COVER, DOOR ARMREST, LH

main74221-47020iZVW30201112-201511

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-47120supersedes 74231-47120iZVW30..G,S200904-201112

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-47090iZVW30200904-201112

74261COVER, REAR DOOR ARMREST, RH

main74261-47020iZVW30200904-201112

74262COVER, REAR DOOR ARMREST, LH

main74261-47020iZVW30200904-201112

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-47060iZVW30200904-201112

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-47060iZVW30200904-201112

8 parts on this diagram · 2 diagrams in section
