Toyota PRIUS — ARMREST & VISOR

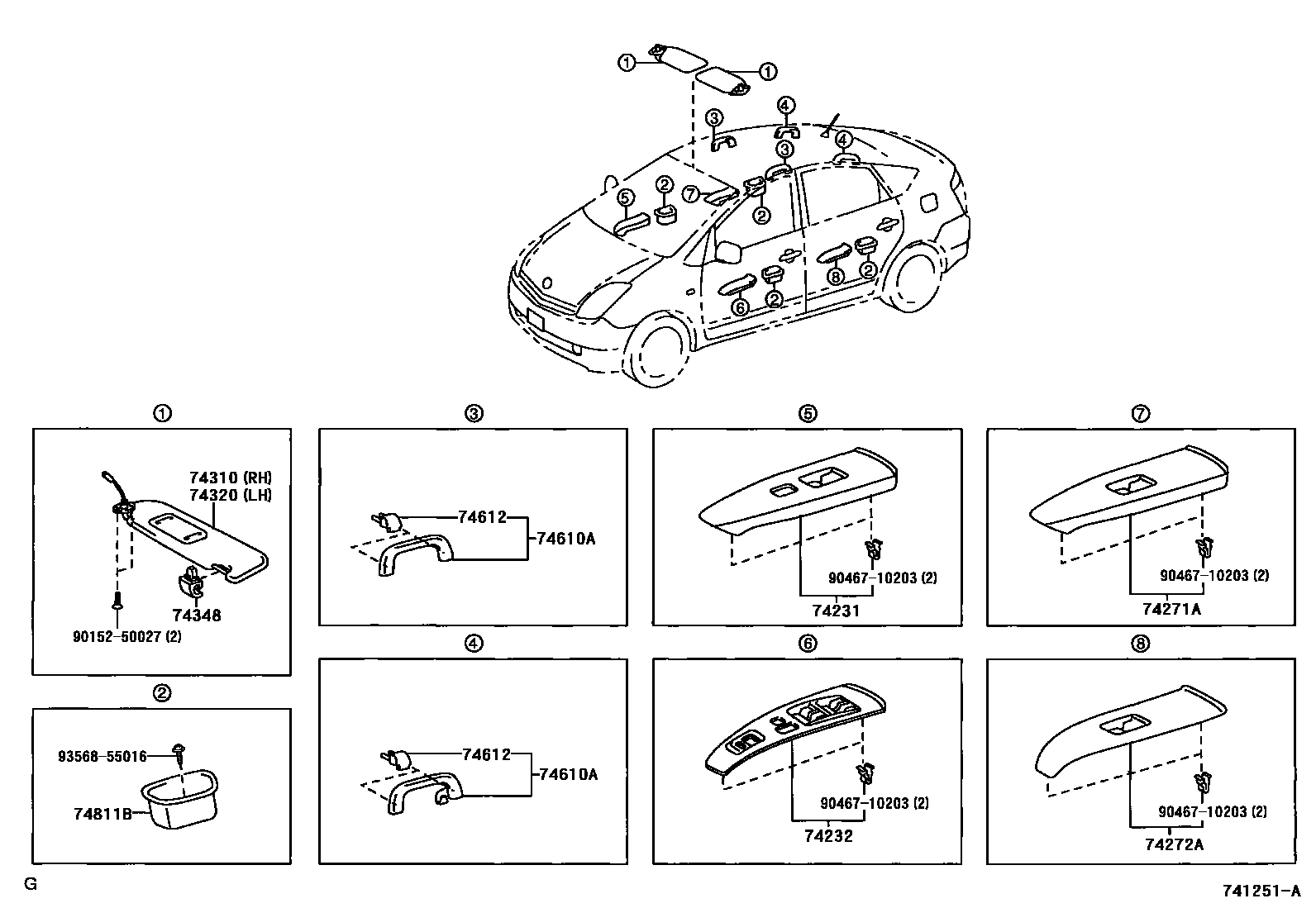

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-47090i200308-200505
main74231-47091i200506-200511
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-47070i200308-200505
main74232-47071i200506-200511
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-47050i200308-200505
main74271-47051i200506-200511
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-47050i200308-200505
main74272-47051i200506-200511
74310VISOR ASSY, RH
main74310-47090-A3i200308-200403
IVORY,TRIM0#
main74310-47090-B3i200308-200403
GRAY,TRIM1#
main74310-47091-A4i200403-200407
IVORY,TRIM0#
main74310-47091-B4i200403-200407
LT.GRAY,TRIM1#
main74310-47092-A4i200408-200412
IVORY,TRIM0#
main74310-47092-B4i200408-200412
LT.GRAY,TRIM1#
main74310-47093-A4i200501-200511
IVORY,TRIM0#
main74310-47093-B4i200501-200511
LT.GRAY,TRIM1#
main74310-47190-B0i200511-200903
LT.GRAY,TRIM1#
main74310-47190-E0i200511-200903
GREGE,TRIM4#
74320VISOR ASSY, LH
main74320-47130-A3i200308-200403
IVORY,TRIM0#
main74320-47130-B3i200308-200403
GRAY,TRIM1#
main74320-47131-A4i200403-200407
IVORY,TRIM0#
main74320-47131-B4i200403-200407
LT.GRAY,TRIM1#
main74320-47132-A4i200408-200412
IVORY,TRIM0#
main74320-47132-B4i200408-200412
LT.GRAY,TRIM1#
main74320-47133-A4i200501-200511
IVORY,TRIM0#
main74320-47133-B4i200501-200511
LT.GRAY,TRIM1#
main74320-47160-B0i200511-200903
LT.GRAY,TRIM1#
main74320-47160-E0i200511-200903
GREGE,TRIM4#
74348HOLDER, VISOR
main74348-12040-A0×2i200308-200511
IVORY,TRIM0#
main74348-12040-B0×2i200308-200511
LT.GRAY,TRIM1#
main74348-12040-E2×2i200511-200903
GREGE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-52010-A0×2i200308-200511
IVORY,TRIM0#,REAR
sub74610-52030
main74610-52010-B1×2i200511-200903
GRAY,TRIM1#,REAR
sub74610-52030
main74610-52010-E1×2i200511-200903
GREGE,TRIM4#,REAR
sub74610-52030
main74610-68010-A0×2i200308-200511
IVORY,TRIM0#,FRONT
sub74610-52020
main74610-68010-B1×2i200308-200511
GRAY,TRIM1#,FRONT
sub74610-52020
main74610-68010-E1×2i200511-200903
GREGE,TRIM4#,FRONT
sub74610-52020
74612COVER, ASSIST GRIP
main74612-68010-A0×8i200308-200511
IVORY,TRIM0#
sub74612-52030
main74612-68010-B1×8i200308-200511
GRAY,TRIM1#
sub74612-52030
main74612-68010-E1×12i200511-200903
GREGE,TRIM4#
sub74612-52030
74811BHANDLE, DOOR PULL
main74811-12060-B3×4i200308-200511
MD.GRAY,TRIM1#
main74811-12060-E1×4i200308-200511
MD.NEUTRAL BONE,TRIM0#
main74811-12060-E2×4i200511-200903
GREGE,TRIM4#
9015250027
main90152-50027
9046710203
main90467-10203
9356855016
main93568-55016

13 parts on this diagram · 1 diagram in section
