Toyota PRIUS — ANTENNA

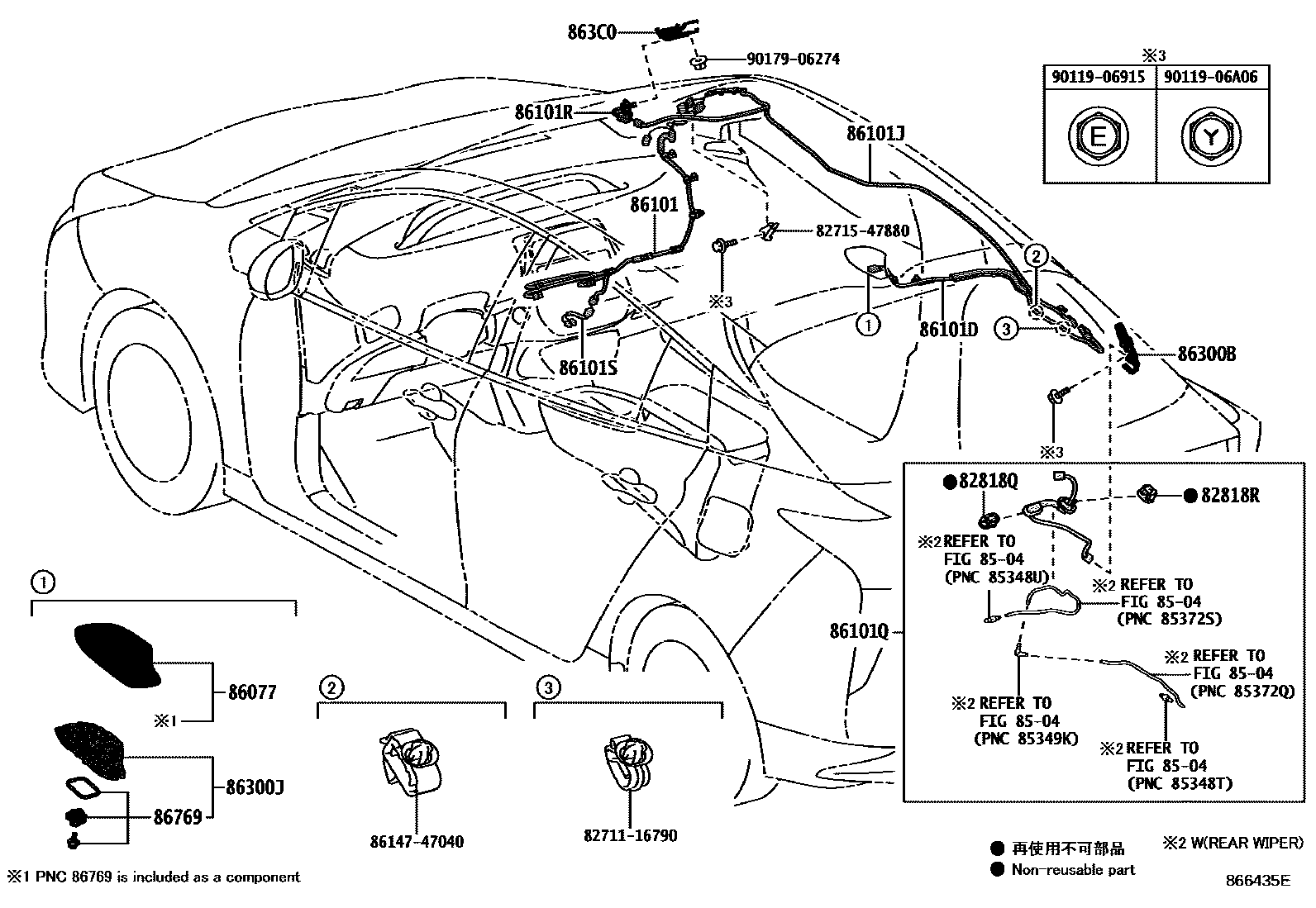

Parts diagram
82818QPROTECTOR, WIRING HARNESS, NO.1
main82817-47L50i201812
82818RPROTECTOR, WIRING HARNESS, NO.2
main82817-47S70i201511-201812
8504REAR WASHER
→ Go to FIG 85-04
86077COVER KIT, ANTENNA
main86077-47010-A0i201511-201812
SUPER WHITE 2,040
main86077-47010-A1i201812-201908
WHITE PEARL CS.,070
main86077-47010-B0i201812-201908
SILVER ME.,1F7
main86077-47010-B1i201511-201812
GRAY ME.,1G3
main86077-47010-C0supersedes 86077-47020-C0i201511-201812
ATTITUDE BLACK MC.,218
main86077-47010-D0i201511-201812
EMOTIONAL RED,3T7
main86077-47010-D6i201812-201908
EMOTIONAL RED 2,3U5
main86077-47010-E0i201511-201812
STEEL BLONDE,4X1
main86077-47010-H0i201812-201908
FROSTY GREEN MC.,781
main86077-47010-J0i201511-201812
DK.BLUE M.M.,8W7
main86077-47010-J2i201812-201908
BLUE ME.,8X7
main86077-47020-A0i201908
SUPER WHITE 2,040
main86077-47020-A1i201908-202007
WHITE PEARL CS.,070
main86077-47020-A3i202007
PLATINUM WHITE PEARL MC.,089
main86077-47020-B0i201908
SILVER ME.,1F7
main86077-47020-B1i201908
GRAY ME.,1G3
main86077-47020-C0i201908
ATTITUDE BLACK MC.,040 ,1F7 ,218; ATTITUDE BLACK MC.,218
main86077-47020-C2i202106
BLACKISH AGEHA GF.,221
main86077-47020-C5i202106
PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC
main86077-47020-D8i201908
EMOTIONAL RED 2,3U5
main86077-47020-H0i201908
FROSTY GREEN MC.,781
main86077-47020-J1i201908
BLUE ME.,8X7
main86077-47010-A3i202007
CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; CANADA SPEC&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; GUAM,SAIPAN SPEC&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; MEXICO SPEC&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; USA DOMAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089; USA HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089
main86077-47010-C3i202106
CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; CANADA SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; GUAM,SAIPAN SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; MEXICO SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; USA DOMAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221; USA HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACKISH AGEHA GF.,221
main86077-47010-C5i202106
CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; CANADA SPEC&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; GUAM,SAIPAN SPEC&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; MEXICO SPEC&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; USA DOMAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC; USA HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT,PRECIOUS BLACK,2WY ,2WZ ,2XA ,2XB ,2XC
main86077-47020-D0i201711-201812
AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL&TELEMATICS-WITH(LTE),EMOTIONAL RED,3T7; AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER&TELEMATICS-WITH(LTE),EMOTIONAL RED,3T7
main86077-47020-E0i201711-201812
AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL&TELEMATICS-WITH(LTE),STEEL BLONDE,4X1; AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER&TELEMATICS-WITH(LTE),STEEL BLONDE,4X1
main86077-47020-J0i201711-201812
AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL&TELEMATICS-WITH(LTE),DK.BLUE M.M.,8W7; AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER&TELEMATICS-WITH(LTE),DK.BLUE M.M.,8W7
86101CORD SUB-ASSY, ANTENNA
main86101-47G00supersedes 86101-47R80i201511-201812
main86101-47R80i202007
main86101-47S10i201908-202007
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
main86101-47C90i201511-201812
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main86101-47D00i201511-201812
HAWAII SPEC; MEXICO SPEC&UPPER PACKAGE&AUDIO-AVN & *BT & USB & 6SPEAKER
main86101-47E20i201511-201711
AUDIO-AVN & *BT & USB & JBL&TELEMATICS-WITH(DCM)
main86101-47N20supersedes 86101-47C90i201812-201908
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
main86101-47N30i201711-201812
AUDIO-AVN(11.6-INCH) & WIFI & *BT & USB & JBL&TELEMATICS-WITH(LTE); AUDIO-AVN(11.6-INCH)&WIFI&*BT&USB&6SPEAKER&TELEMATICS-WITH(LTE)
main86101-47N40i201812-201908
USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-47E70supersedes 86101-47F00i201511-201812
HAWAII SPEC
main86101-47F20i201908-202007
USA HAWAII SPEC&AUDIO-AVN(7-INCH) & *BT & USB & 6SPEAKER
main86101-47S70i202007
main86101-47F00i201908
CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
main86101-47T20i202007
CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; CANADA SPEC&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; MEXICO SPEC&DATA COMMUNICATION MODULE-WITHOUT; USA DOMAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-47E80supersedes 86101-47F30i201812-201908
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
main86101-47F30i202007
main86101-47S00i201908-202007
AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER
main86101-47E90i201511-201812
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
main86101-47F10i201812-201908
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
main86101-47J30i201908-202007
KOREA SPEC&KOREA UPPER PACKAGE&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATACOMMUNICATION MODULE-WITHOUT
86101QCORD SUB-ASSY, ANTENNA, NO.4
main86101-47C50i201511-201812
main86101-47G60i201511-201812
86101RCORD SUB-ASSY, ANTENNA, NO.5
main86101-47D10i201511-201812
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER
86101SCORD SUB-ASSY, ANTENNA
main86101-47R90i201908-202007
CANADA SPEC; CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER; GUAM,SAIPAN SPEC; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER; MEXICO SPEC; USA DOMAIN SPEC; USA HAWAII SPEC; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
main86101-47S90i202007
main86101-47C70i201511-201711
FOUR PACKAGE&AUDIO-AVN & *BT & USB & JBL; FOUR TOURING PACKAGE&AUDIO-AVN & *BT & USB & JBL
main86101-47K70i201908
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-47160i201812
86300JANTENNA ASSY, ROOF
main86300-47180supersedes 86960-47050i201511-201812
HAWAII SPEC
main86760-10010i202007
main86760-47110i201908-202007
main86300-47220i202007
CANADA SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; CANADA SPEC&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC&DATA COMMUNICATION MODULE-WITHOUT; KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; MEXICO SPEC&DATA COMMUNICATION MODULE-WITHOUT; USA DOMAIN SPEC&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&AUDIO-*DA(7-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT; USA HAWAII SPEC&DATA COMMUNICATION MODULE-WITHOUT
main86760-47050i202007
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITH; AUDIO-AVN(11.6-INCH) & *BT & USB & JBL&DATA COMMUNICATION MODULE-WITH
main86760-47090i201511-201601
FOUR PACKAGE&AUDIO-AVN & *BT & USB & JBL&TELEMATICS-WITH(DCM); FOUR TOURING PACKAGE&AUDIO-AVN & *BT & USB & JBL&TELEMATICS-WITH(DCM)
main86760-47091i201602-201711
FOUR PACKAGE&AUDIO-AVN & *BT & USB & JBL&TELEMATICS-WITH(DCM); FOUR TOURING PACKAGE&AUDIO-AVN & *BT & USB & JBL&TELEMATICS-WITH(DCM)
main86960-47050i201812-201908
AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER
main86960-47060i202007
CANADA SPEC&AUDIO-AVN(11.6-INCH) & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
main863C0-78010i201908
KOREA SPEC&AUDIO-KOREA SPEC & *DA & *BT & USB & 6SPEAKER&DATA COMMUNICATION MODULE-WITHOUT
86769HOUSING, ROOF ANTENNA
main86769-12010i201511-201812
main86769-K0010i202007
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
8614747040
main86147-47040
9011906915
main90119-06915
9011906A06
main90119-06A06
9017906274
main90179-06274

20 parts on this diagram · 1 diagram in section

ANTENNA for Toyota PRIUS

This section contains 20 genuine Toyota parts for the ANTENNA system of the Toyota PRIUS. Key components include: PROTECTOR, WIRING HARNESS, NO.1, PROTECTOR, WIRING HARNESS, NO.2, REAR WASHER, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA.
