Toyota PRIUS — ABS & VSC

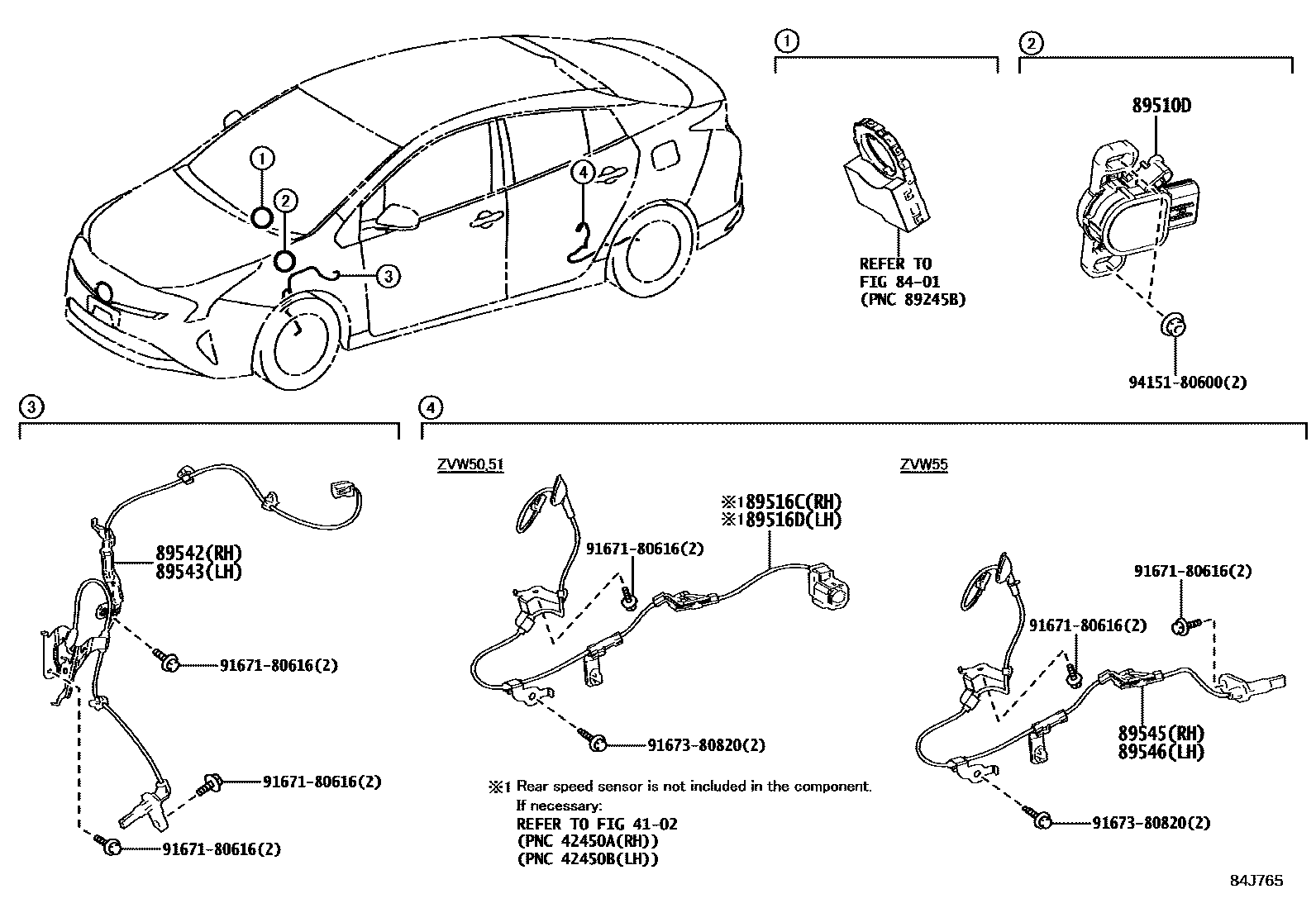

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47040i201511-201812

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-47110i201511-201812

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-47120i201511-201812

89542SENSOR, SPEED, FRONT RH

main89542-47040i201511-201812

89543SENSOR, SPEED, FRONT LH

main89543-47040i201511-201812

89545SENSOR, SPEED, REAR RH

main89545-47010i201812

89546SENSOR, SPEED, REAR LH

main89546-47010i201812

9167180616

main91671-80616

9167380820

main91673-80820

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PRIUS

This section contains 12 genuine Toyota parts for the ABS & VSC system of the Toyota PRIUS. Key components include: REAR AXLE SHAFT & HUB, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH, WIRE, SKID CONTROL SENSOR, LH.
