Toyota PRIUS — ABS & VSC

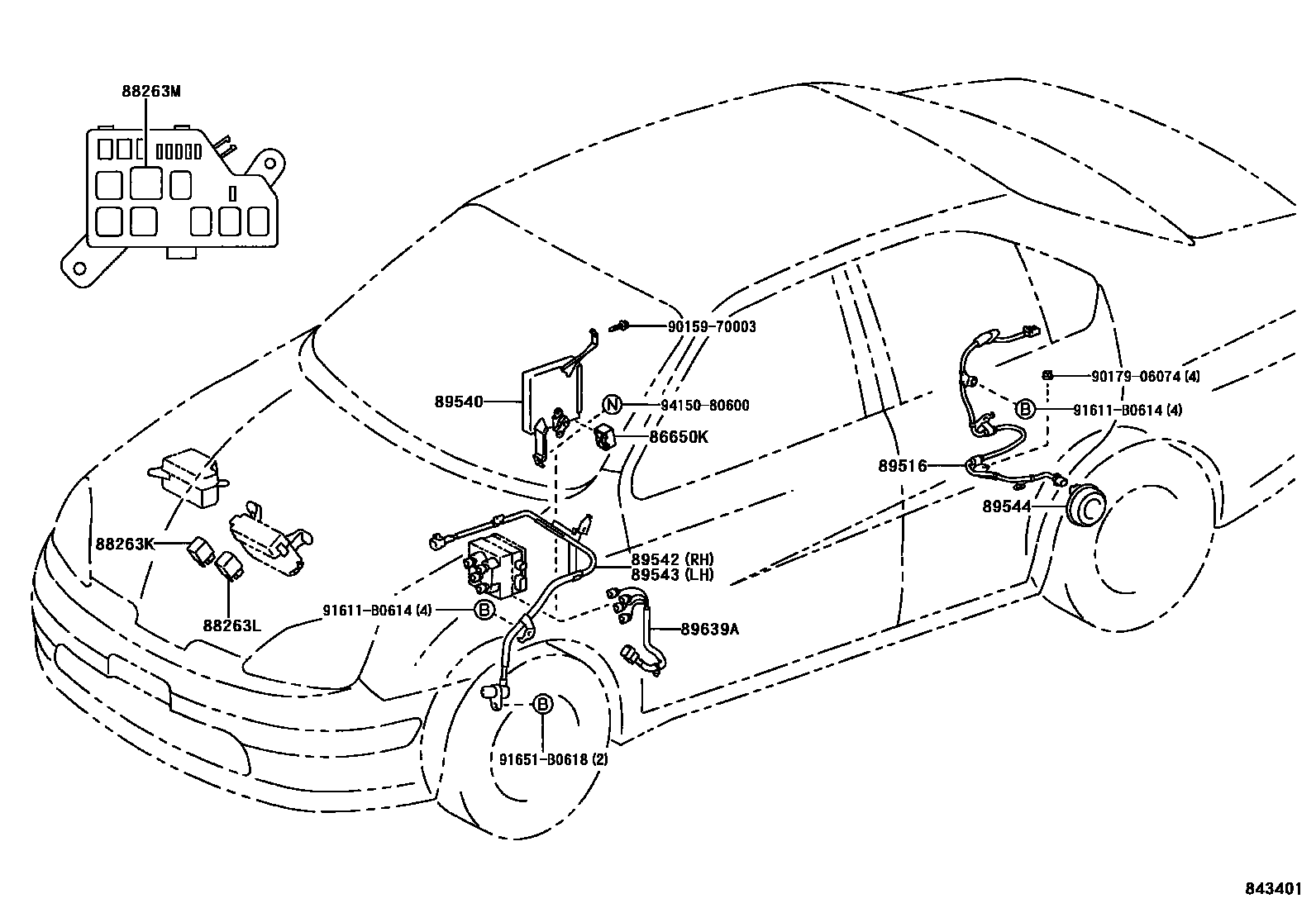

Parts diagram

86650KBUZZER ASSY, SKID CONTROL

main86650-30180i200005

88263KRELAY, HYDRO MOTOR, NO.1

main89633-24010i200005

88263LRELAY, HYDRO MOTOR, NO.2

main88263-24020i200005

88263MRELAY, ABS SOLENOID

main88263-24030i200005

89516WIRE, SKID CONTROL SENSOR

main89516-47030i200005

RH

main89516-47040i200005

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-47030i200005

89542SENSOR, SPEED, FRONT RH

main89542-47010i200005

89543SENSOR, SPEED, FRONT LH

main89543-47010i200005

89544SENSOR, SKID CONTROL

main89544-52020×2i200005

89639AWIRE, BRAKE CONTROL

main89639-47030i200005

9015970003

main90159-70003

9017906074

main90179-06074

91611B0614

main91611-B0614

91651B0618

main91651-B0618

9415080600

main94150-80600

15 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota PRIUS

This section contains 15 genuine Toyota parts for the ABS & VSC system of the Toyota PRIUS. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, HYDRO MOTOR, NO.1, RELAY, HYDRO MOTOR, NO.2, RELAY, ABS SOLENOID, WIRE, SKID CONTROL SENSOR.
