Toyota PRIUS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47070supersedes 85110-13110i200308-200511

85160LINK ASSY, WINDSHIELD WIPER

main85150-47080supersedes 85150-47060i200308-200511

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i200308-200511

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2i200308-200511

85211BARM, FRONT WIPER, RH

main85211-47040i200511

85212ABLADE, FR WIPER, RH

main85212-68010i200308-200511

85214ARUBBER, WIPER, RH

main85214-44140i200308-200511

85214BRUBBER, WIPER, LH

main85214-50060i200308-200511

main85214-50061i200608

85221BARM, FRONT WIPER, LH

main85221-47030i200308-200511

85222ABLADE, FR WIPER, LH

main85222-13040i200308-200511

main85222-13041i200608

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44070i200308-200511

main85291-44090i200308-200511

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i200308-200511

9011906864

main90119-06864

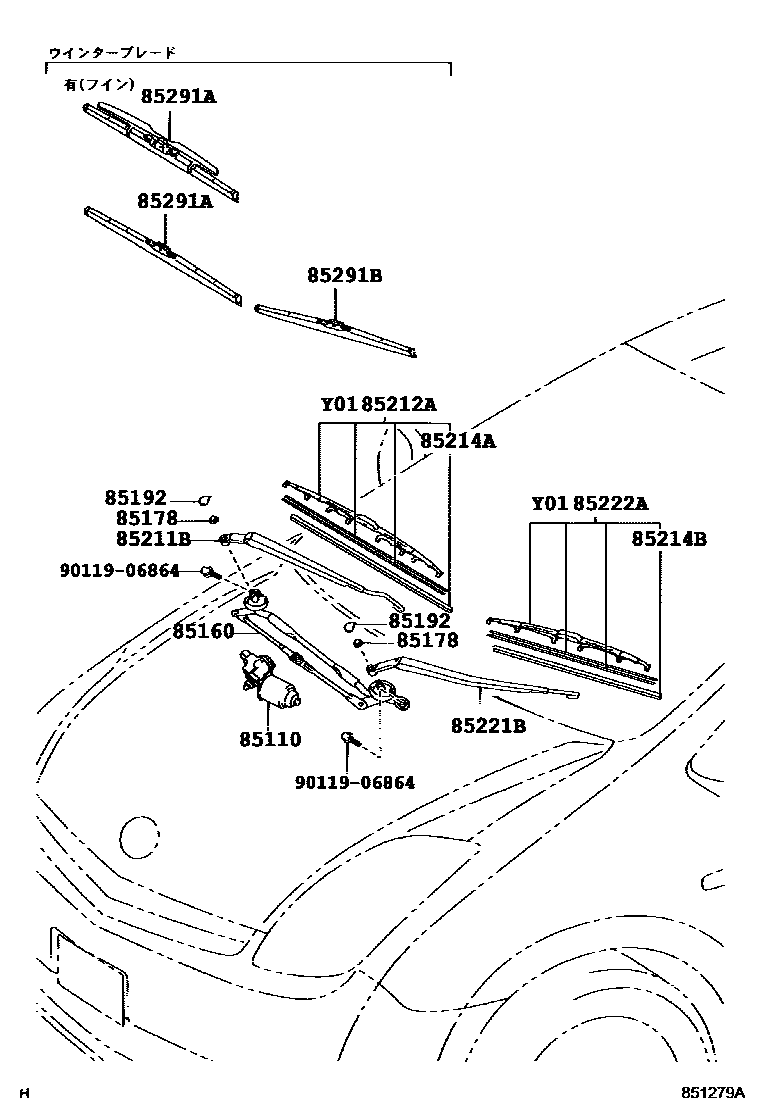

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PRIUS

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PRIUS. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH.
