Toyota PRIUS — WINDSHIELD WASHER

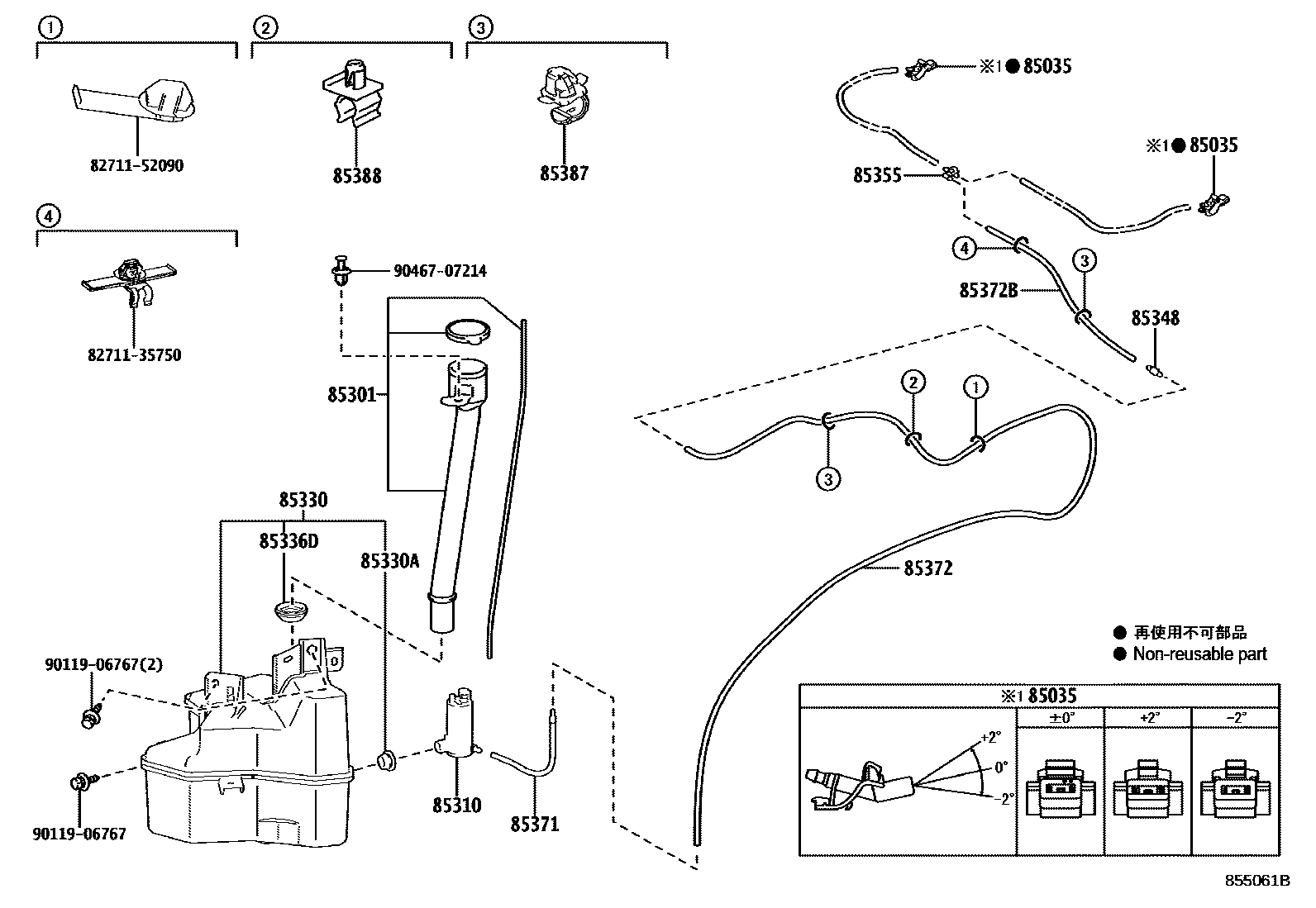

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-12360×2i202212

main85381-12440×2i202212

main85381-33080×2i202212

85301INLET SUB-ASSY, WASHER

main85301-47050i202212

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-48030supersedes 85330-48040i202212

main85330-48040i202212-202303

85330JAR ASSY, WINDSHIELD WASHER

main85315-47290supersedes 85315-47270i202212

main85315-47270i202212-202303

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012i202212

85336DPACKING, WINDSHIELD WASHER JAR

main85336-47270i202212

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02650i202212

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650i202212

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46264supersedes 90069-46263i202212

main90069-46263i202212-202303

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46220i202212

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46210i202212

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×2i202212

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-0A010i202212

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767

9046707214

main90467-07214

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PRIUS

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PRIUS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
